GE VIPC616 4-slot 6U VME IndustryPack carrier

Technical Specifications

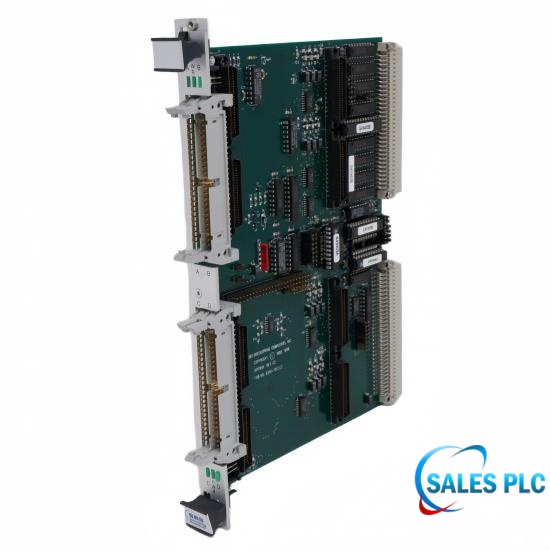

The VIPC616 VMEbus IP carrier is part of the IndustryPack® family of modular I/O components. As a carrier board, the VIPC616 provides mechanical support and the electrical interfaces to four single high IndustryPacks, or two double high IPs. Input/output, memory, and interrupt functions are supported. VIPC616 meets VMEbus Specification C.1 (also known as IEEE P1014/D1.2 and IEC 821 bus) for 6U, or "double high," form factor. Other VMEbus IP carrier boards are available with different capabilities, including 3U (single high) form factors, on board DMA, or other processors.

Installation of IndustryPacks

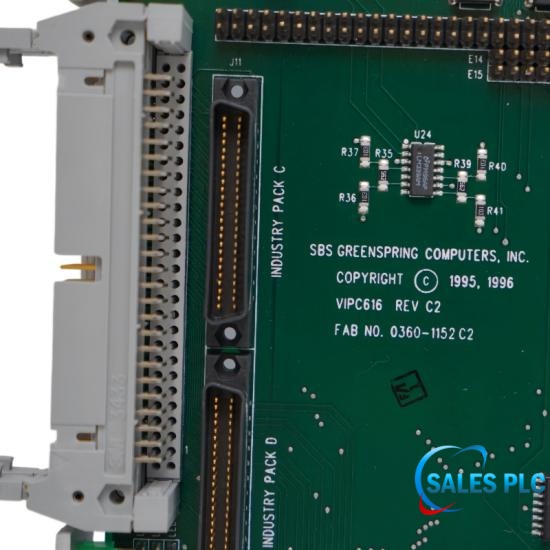

IndustryPacks are installed on the VIPC616 carrier board by simply snapping them in. Press the IP and the carrier board together with your fingers until the two pairs of mating connectors are flush. The connectors are keyed, so the IP can only be installed correctly. There are four locations for IPs. These are identified as A, B, C and D. The white lettering on the VIPC616 shows the location of each slot. All IPs mate with 50-pin flat cable receptacle connectors for their I/O. On the VIPC616 all connectors have latches and are accessible from the front panel. The front panel labeling indicates which connector is associated with which IP. Pin 1 for each cable is identified by the
mark on the connector or a square solder pad. Be cautions with connectors for IPs B and D, the keying can be reversed.

Functional Characteristics

Slot Expansion Function:Supports 4 single-wide IndustryPacks or 2 double-wide IndustryPacks for flexible module installation.
VMEbus Interface Function:Provides electrical connection between the VME backplane and IndustryPack modules.
I/O Handling Function:Supports IndustryPack I/O, ID, memory, and interrupt cycles.
Memory Mapping Function:Supports A24 and A32 VME memory mapping for IndustryPack memory access.
A32 Memory Support Function:Provides up to 8 Mbytes memory per IndustryPack slot in A32 mode.

FAQ  技术常见问题解答

Q: What VMEbus standard does VIPC616 support?
A: It supports the IEEE P1024/D1.2 VMEbus standard.

Q: Which IndustryPack specification does VIPC616 follow?
A: It follows the ANSI/VITA-4 1995 IndustryPack specification.

Q: What memory space does VIPC616 support?
A: It supports A24 and A32 VME memory space access.

Q: How much A32 memory can VIPC616 support?
A: It supports 8 MB memory per IndustryPack slot in A32 mode.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
