Hirschmann ECAUI 943319-001 Ethernet AUI Interface Module

Technical Specifications

• Provides two 10 Mbps AUI ports for legacy industrial Ethernet connections
• Features a standard 6TE plug-in card configuration for Hirschmann modular switch racks
• Integrates a hardware Signal Quality Error testing circuit to verify network specification compliance

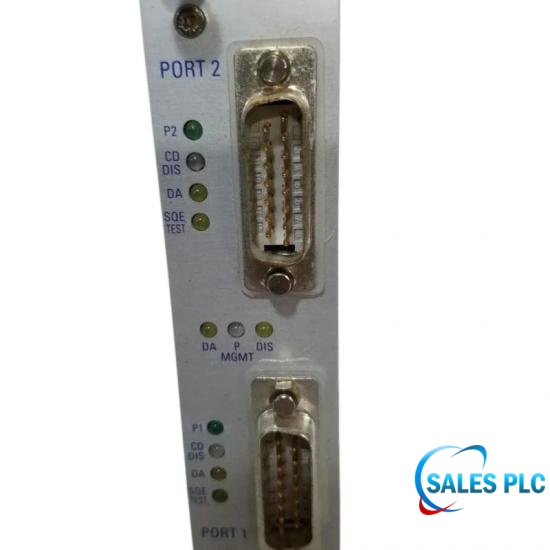

• Incorporates front-panel LEDs to monitor power, data traffic, network collisions, and segment states

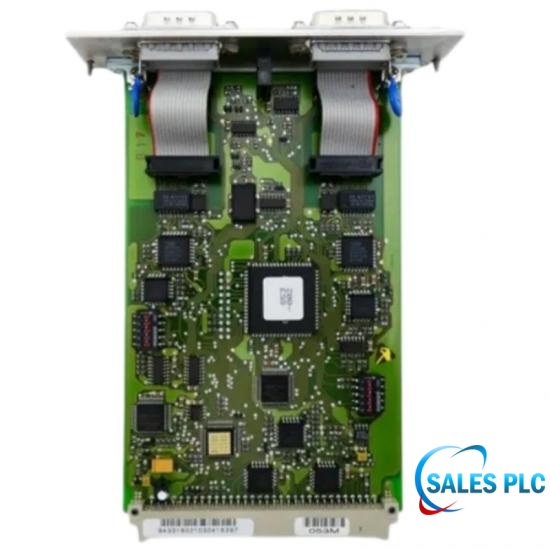

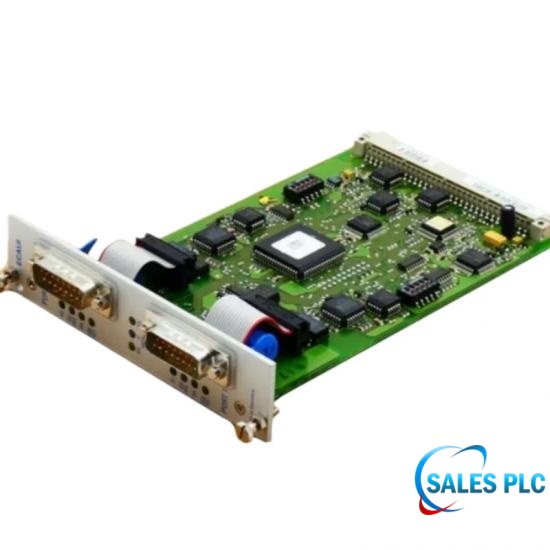

The Hirschmann ECAUI 943319-001 is a plug-in Ethernet interface module built for industrial automation and infrastructure networks. The hardware features two standard AUI ports providing 10 Mbps connectivity for legacy industrial network configurations. The assembly fits into compatible Hirschmann modular switch frames and backplane assemblies as a 6TE form-factor module drawing operating power straight from the host chassis. Front-panel LED displays show status variables for power verification, port collisions, data traffic, segment routing, and port disable events to support continuous hardware tracking. The module integrates Signal Quality Error testing circuitry to monitor physical link compliance with standard Ethernet network protocols.

Typical Applications

Operational Plant Benefits

The ECAUI 943319-001 module preserves active factory assets by connecting legacy AUI-compliant automation hardware directly to modern modular switch chassis. This interface capability eliminates the capital expenditure required for full-scale controller upgrades and prevents plant downtime during maintenance cycles. Integrated hardware diagnostics and visual status LEDs accelerate fault isolation to maintain continuous production telemetry across the plant floor.

Technical FAQ

Q: What is the primary purpose of deploying the ECAUI 943319-001 in an industrial control network?
A: To connect legacy automation devices equipped with AUI ports into a Hirschmann modular industrial switch system.

Q: How many physical communication interfaces does the front panel of the ECAUI 943319-001 provide?
A: The hardware panel integrates two AUI interface ports conforming to standard Ethernet specifications.

Q: What is the maximum data transmission rate supported by each AUI port on the ECAUI 943319-001?
A: All channels of this module operate at the standard 10 Mbps Ethernet communication speed.

Q: Which specific host chassis devices must the ECAUI 943319-001 card be installed in?
A: It inserts into Hirschmann modular industrial switch chassis or compatible ASGE backbone racks.
