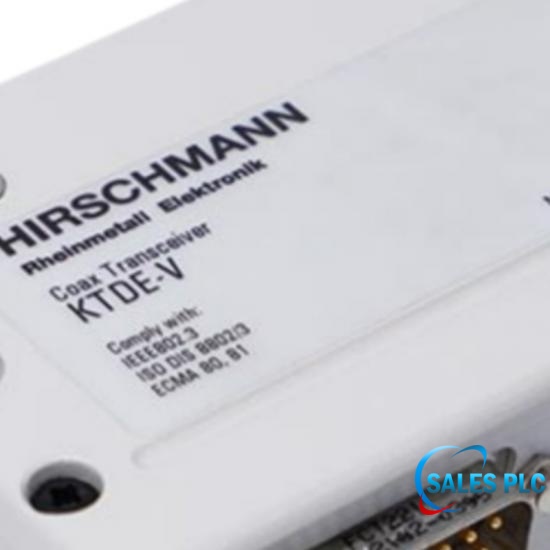

Hirschmann KTDE-V 943258-001 Coax Transceiver Module

Technical Specifications

• Meets IEEE 802.3 and ISO/IEC 8802-3 hardware design standards governing 10BASE5 Thick Ethernet systems.
• Features one D-Sub 15-pin AUI female port and one 10BASE5 vampire tap coaxial connection.
• Features an industrial-grade metal enclosure with passive cooling for deployment in legacy plant automation systems.
• Draws operating power directly through the host AUI connection with integrated panel LEDs indicating power, data transmission, and collision events.

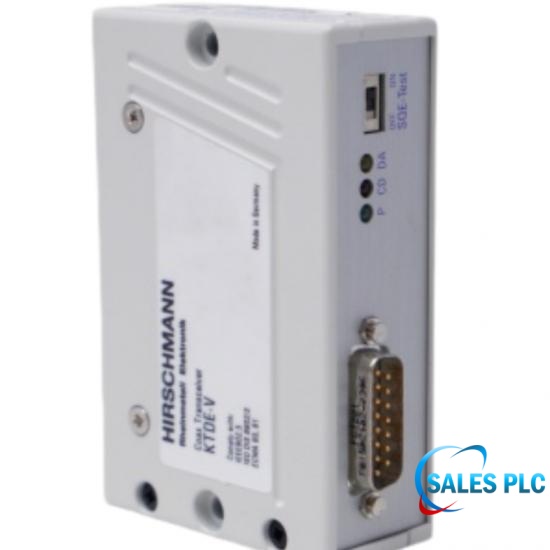

This industrial transceiver links AUI equipment to a 10BASE5 Thick Ethernet coaxial network backbone. Hardware connections on the Hirschmann KTDE-V 943258-001 include one D-Sub 15-pin AUI port and one 10BASE5 vampire tap interface. Physical transmission limits reach 50 meters over the AUI cable and 500 meters along the coaxial cable run. Status LEDs on the front panel display real-time indicators for power input, data activity, and collision conditions to assist with field troubleshooting.

As part of the Hirschmann Industrial Ethernet portfolio, the KTDE-V 943258-001 is commonly deployed in factory automation, process control, power utilities, transportation systems, manufacturing facilities, and industrial communication networks that continue to operate on 10BASE5 Ethernet infrastructure. Its rugged construction and compliance with industrial networking standards enable stable operation in demanding industrial environments.

Core Features

Network Integration

The KTDE-V functions as an interface between Ethernet devices equipped with an AUI port and legacy 10BASE5 coaxial networks. It enables industrial controllers, communication processors, and networking equipment to exchange data through Thick Ethernet infrastructure while maintaining IEEE 802.3 compatibility.

Technical FAQ

Q: What is the purpose of installing the KTDE-V 943258-001 in an industrial network?
A: To connect network devices equipped with an AUI port to a 10BASE5 Thick Ethernet coaxial network.

Q: Where does the operating power for the KTDE-V 943258-001 come from?
A: Operating power is drawn directly from the host equipment via the connected AUI interface.

Q: What is the maximum AUI cable length supported by the KTDE-V 943258-001?
A: It supports a maximum AUI drop cable length of 50 meters.

Q: What states do the LEDs on the KTDE-V 943258-001 panel monitor?
A: They indicate power input as well as data transmission activity and network collision events in real time.
