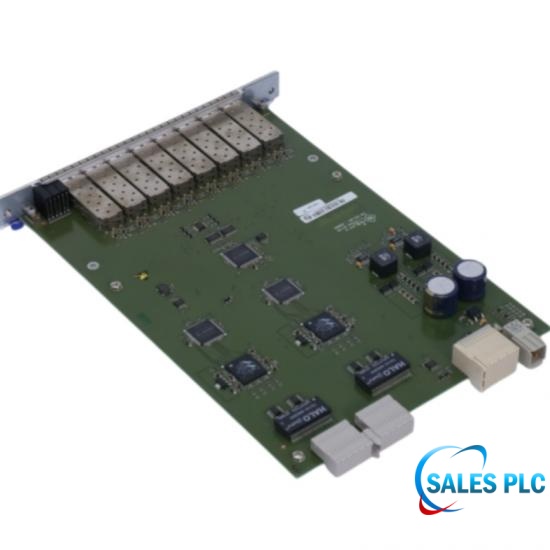

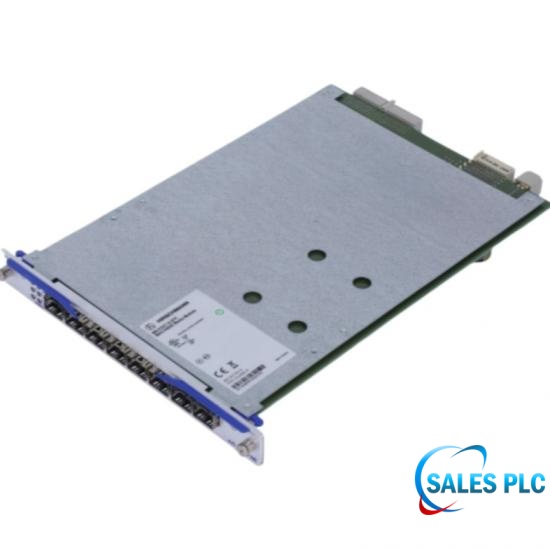

Hirschmann M4-FAST 8-SFP Media Module

Technical Specifications

• Media module for MACH 4000 10/100 BASE-FX with SFP sockets
• 8 x 100 BASE-FX, with M-FAST SFP transceiver
• Use with compatible Hirschmann MICE basic modules and MS series modular switches
• Plug-in module for Hirschmann MICE modular switch systems

The Hirschmann M4-FAST 8-SFP is an industrial Fast Ethernet media module designed for the MACH4000 managed Ethernet switch platform. M4-FAST 8-SFP offers eight 100BASE-FX SFP ports for compatible M-FAST SFP transceivers supporting multimode or single-mode fiber links. Direct backplane installation into the MACH4000 switch expands network capacity while ensuring reliable optical connectivity for industrial Ethernet.

The M4-FAST 8-SFP receives operating power directly from the MACH4000 backplane and requires no separate power supply. It supports modular network expansion and enables users to select appropriate SFP transceivers according to transmission distance, fiber type, and application requirements. Integrated diagnostic LEDs provide continuous indication of power status, link activity, data transmission, full-duplex operation, ring port status, and LED self-test, simplifying system commissioning and maintenance.

Core Features

Fiber Connectivity

The M4-FAST 8-SFP adds eight Fast Ethernet fiber interfaces to a MACH4000 switch via standard SFP slots. Users install M-FAST SFP transceivers to establish multimode or single-mode fiber links based on specific transmission distances and network topologies. This module enables future network expansion within existing industrial Ethernet infrastructures.

Technical FAQ

Q: What is the primary purpose of using the M4-FAST 8-SFP in an industrial plant?
A: To add fiber optic connection ports to compatible industrial switches for long-distance data transmission.

Q: Which switch platforms can the M4-FAST 8-SFP be installed in?
A: It fits exclusively into Hirschmann MACH4000 series backbone industrial Ethernet switches.

Q: What is the maximum transmission speed supported by each port of the M4-FAST 8-SFP?
A: All ports operate at Fast Ethernet speed supporting a maximum data transmission of 100 Mbps.

Q: Does the M4-FAST 8-SFP module support multimode or single-mode fiber?
A: The module itself supports both depending on the specific type of SFP transceivers inserted by the user.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
