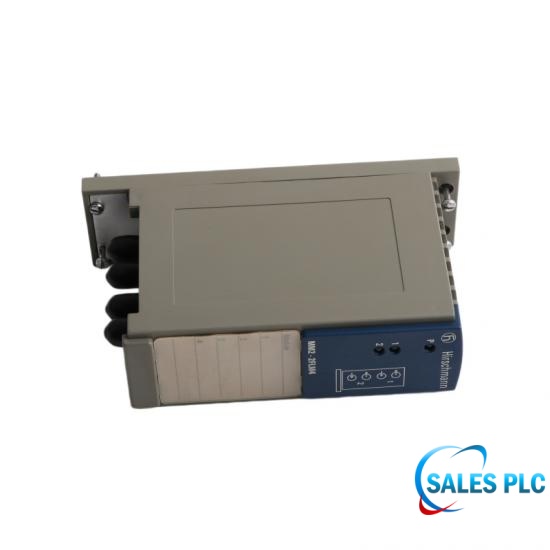

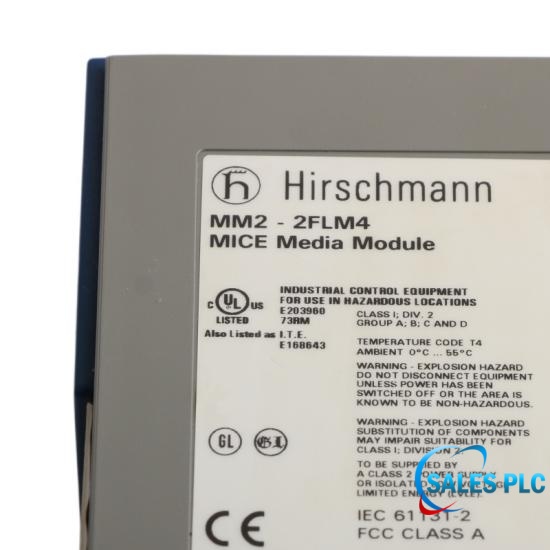

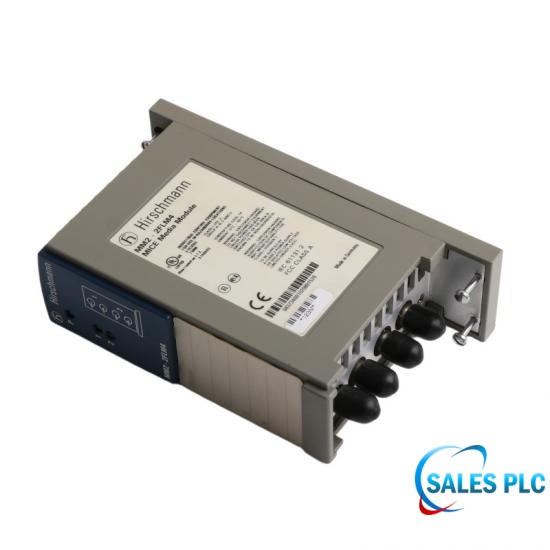

Hirschmann MM2-2FLM4 Fiber Optic Media Module

Technical Specifications

• Media module used as the LAN interface expansion module for Hirschmann MICE modular Industrial Ethernet switches.
• 2 × multimode fiber optic ports
• 10BASE-FL multimode fiber optic communication
• Optical LAN interface between MICE switch system and network infrastructure
• Modular plug-in structure for flexible network configuration

The Hirschmann MM2-2FLM4 is a fiber optic media module for use with Hirschmann MICE modular Industrial Ethernet switches. It provides the optical interface between the MICE switch and the LAN network, allowing the switch system to be configured with fiber optic communication connections for industrial network applications. The MM2-2FLM4 belongs to the MICE media module family and is designed to be installed on compatible Hirschmann MS series modular switches, including the MICE 2000 MS2108-2 basic module. The module expands the communication capability of the switch by providing optical fiber ports for connection to industrial Ethernet networks. The module provides two 10BASE-FL multimode fiber optic interfaces with ST (BFOC) connectors, allowing connection through multimode fiber cables in industrial communication systems. The use of fiber optic transmission helps maintain stable communication in environments where electrical interference may affect conventional copper connections.

Main Features

Model Benefits

• Flexible fiber optic expansion for MICE systems-The MM2-2FLM4 provides an optical interface expansion option for Hirschmann MICE modular switches, allowing the network configuration to be adapted according to communication requirements.

• Reliable multimode fiber connection-Equipped with two 10BASE-FL multimode fiber optic ports with ST (BFOC) connectors, the module provides a suitable connection method for industrial fiber optic networks.

• Modular design for easy integration-As a MICE media module, the MM2-2FLM4 can be installed into compatible Hirschmann MS modular switches, providing a convenient way to add or change network interfaces without replacing the complete switch system.

• Compatible with Hirschmann MS modular switches-The MM2-2FLM4 is intended for use with Hirschmann MS series modular switches, including MICE 2000 systems such as the MS2108-2 basic module.

Technical FAQ

Q: Is the MM2-2FLM4 suitable for Industrial Ethernet applications?
A: Yes. The Hirschmann MICE system is designed for industrial environments and supports the construction of switched Industrial Ethernet networks according to IEEE 802.3 when used with compatible switch modules

Q: What type of interface does the Hirschmann MM2-2FLM4 provide?
A: The MM2-2FLM4 provides two 10BASE-FL multimode fiber optic interfaces with ST (BFOC) connectors for optical network connections.

Q: What should be checked before installing the Hirschmann OYDE-S BFOC 743536-101?
A: Before installation, users should confirm equipment compatibility, fiber optic connector type, optical cable requirements, and correct installation of the module within the Hirschmann network device.

Q: What is the main function of the MM2-2FLM4 media module?
A: The main function of the MM2-2FLM4 is to provide a fiber optic LAN interface for Hirschmann MICE modular switches, allowing the construction of Industrial Ethernet networks using optical connections.

Q: Can the MM2-2FLM4 be installed directly as a standalone switch?
A: No. The MM2-2FLM4 is a media module and must be installed on a compatible Hirschmann MS modular switch basic module. It works as an interface expansion component within the MICE system.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
