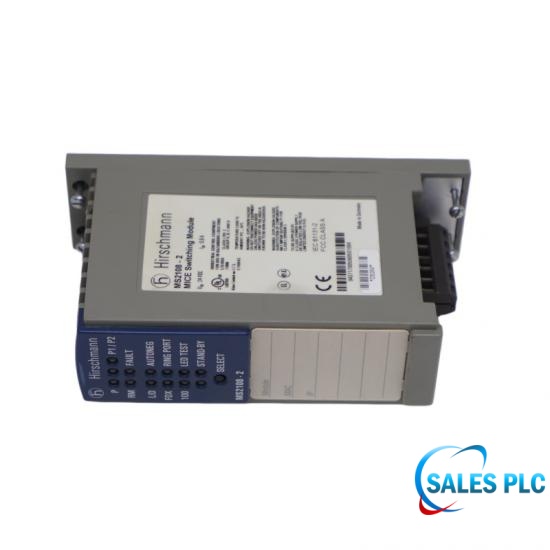

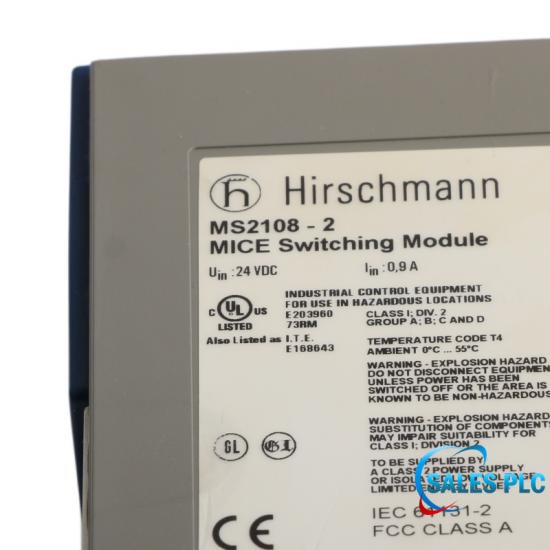

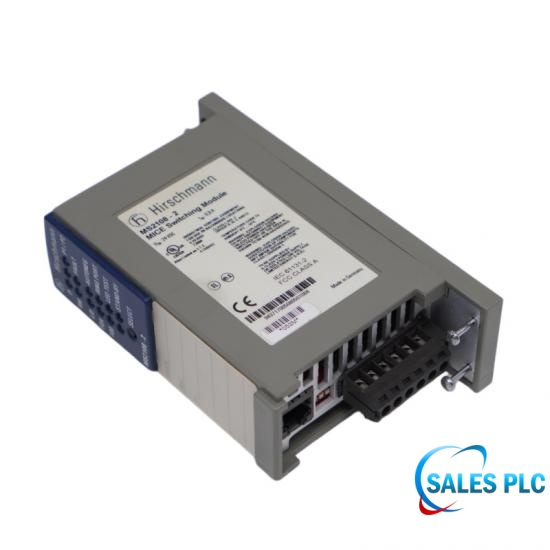

Hirschmann MS2108-2 Switching Module

Technical Specifications

• Modular Industrial Ethernet Switch Basic Module
• 2 × slots for Hirschmann MICE media modules
• 24 V DC redundant power input
• 1 × pluggable terminal block, 6-pin
• Supports HIPER-Ring redundancy technology for industrial network availability

The Hirschmann MS2108-2 is a modular industrial Ethernet switch basic module belonging to the MICE 2000 product family. It is designed for building flexible Industrial Ethernet networks in demanding industrial environments. The MS2108-2 works together with Hirschmann MICE media modules, which provide the interface between the switch and the LAN network. The modular design of the MS2108-2 allows different media modules to be installed according to the required network interface configuration. This structure enables users to adapt the communication system to different industrial network requirements while maintaining a consistent MICE platform architecture. The MS2108-2 supports the construction of switched Industrial Ethernet networks based on the IEEE 802.3 standard. Combined with Hirschmann MICE media modules, it provides a flexible solution for industrial automation networks, machine communication systems, and other applications requiring reliable Ethernet connectivity.

Main Features

Installation Information

The Hirschmann MS2108-2 should be installed according to the MICE 2000 system installation instructions and used together with compatible Hirschmann MICE media modules. During installation, the device should be securely mounted in a suitable industrial cabinet or control environment, with attention to the specified operating conditions. The MS2108-2 is designed for DIN rail mounting and provides slots for MICE media modules, which are installed according to the required network interface configuration. After the media modules are fitted, the corresponding Ethernet or fiber optic connections can be connected through the selected interfaces. The power supply should be connected through the designated terminal connection, ensuring correct wiring before commissioning. Before operation, verify that the basic module, media modules, network connections, and power supply are properly installed. The modular structure of the MS2108-2 allows the network configuration to be adapted by selecting suitable MICE media modules, providing flexibility for different Industrial Ethernet applications.

Technical FAQ

Q: What is the main function of the MS2108-2?
A: The MS2108-2 provides the switching base for MICE modular network systems. By installing suitable media modules, users can configure different network interfaces according to the requirements of the industrial communication system.

Q: Which media modules can be used with Hirschmann MS2108-2?
A: The MS2108-2 is designed for use with Hirschmann MICE 2000 media modules. These media modules act as the interface between the switch and the LAN network and can be plugged into the basic module.

Q: Can the MS2108-2 support fiber optic communication?
A: The MS2108-2 itself is a modular switch basic module. Fiber optic communication can be achieved by installing compatible Hirschmann MICE media modules with optical interfaces.

Q: Is the Hirschmann MS2108-2 suitable for industrial environments?
A: Yes. The MICE system was developed specifically for industrial environments. The MS2108-2 is used as part of an industrial Ethernet solution where flexible network configuration and reliable communication are required.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
