Extends PROFIBUS communication over electrical and fiber optic networks with automatic signal regeneration, redundant power support, and integrated diagnostics for reliable industrial automation. In Stock Original New Unused.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales8@amikon.cnWhatsapp/Mob:
+86 18030235313
Technical Specifications
• 5 V DC + 5 %, –10 % / 90 mA; short circuit-proof
• 60 VDC; 42 VAC (safety extra-low voltage)
• During operation: up to 2000 m (795 hPa)
• Transport and storage: up to 3000 m (700 hPa)
• NEC Class 2 power source 18-32 V DC (24 V DC typ.) safety extra-low voltage (SELV/PELV); (redundant inputs decoupled), 5 A max., buffer time min. 10 ms at 24 V DC
The PROFIBUS Repeaters are designed to be used in optical PROFIBUS field bus networks according to IEC 61784 ED.1:2002 CPF3/1. They enable electrical PROFIBUS interfaces (RS 485 level) to be converted into optical PROFIBUS interfaces and vice-versa. By profiting from the familiar advantages of optical transmission technology, the repeaters can be integrated into existing PROFIBUS field bus networks. A complete PROFIBUS field bus network with repeaters in line, star or ring topology, and an arbitrary combination of these, can also be built up.
Manufacturer:
Hirschmann
Power consumption
4.8 W
Setting transmission rate
automatic
Relative humidity
< 95 %, non-condensing
Counliy of origin:
Germany
Dimensions (W x H x D)
35 mm × 156 mm × 119 mm
Weight
200 g
Ambient temperature
0 °C to +60 °C
Storage temperature
–40 °C to +70 °C
Protection class
IP 20
Technical Overview
Signal regeneration-The RH1-TP processes the signal shape and amplitude of the data received.
Housing-The housing consists of two plastic sections and a front panel made of metal. It can be mounted on a DIN rail.

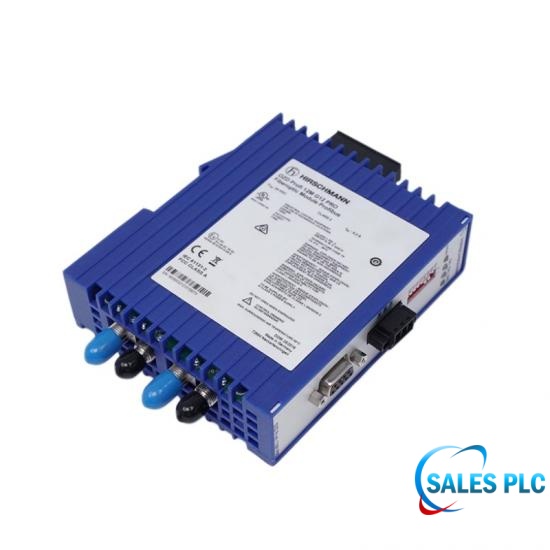

Ports-Each repeater has two or three mutually independent channels (ports), which in turn consist of a transmitting and a receiving component. The electric channel is a 9-pole Sub-D socket (female). A PROFIBUS bus segment can be connected to this channel. The channels 2 and 3 are optical BFOC/2.5 (ST ®) sockets.
Glass fiber technology-The use of glass fiber transmission technology enables a very large transmission range and ensures optimal protection from EMC effects on the transmission path and – due to the potential separation – on the Repeater itself.
Power supply-The power supply is +24 V direct current. To improve the operating safety, a redundant operating power supply consisting of two separate sources can be used.
Installation and Commissioning
• Setting compatibility, operating mode and transmitting power
• Connecting the optic bus cables
• Connecting the electric bus cables
• Connecting the function ground and the shield of the bus cable
• Connecting the signal contact lines (optional)
Technical FAQ
Q: What communication interfaces are available?
A: The G12 PRO version provides one electrical PROFIBUS interface through a 9-pin Sub-D connector and two optical channels using BFOC/2.5 (ST®) fiber optic connectors for network expansion.
Q: Does the repeater support redundant power input?
A: Yes. The device operates from 24 V DC and supports redundant power supplies using two independent power sources connected to the 7-pin terminal block. Internal diode isolation protects against reverse polarity and incorrect wiring.
Q: What diagnostic features are included?
A: Four multicolor LEDs indicate operating status, communication activity, optical channel condition, and fault information. Signal contacts and measuring outputs are also available for external monitoring systems.
Q: How is the repeater configured?
A: Configuration is completed using externally accessible DIL code switches. These switches allow adjustment of compatibility mode, operating mode, and optical transmitting power without additional software tools.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
