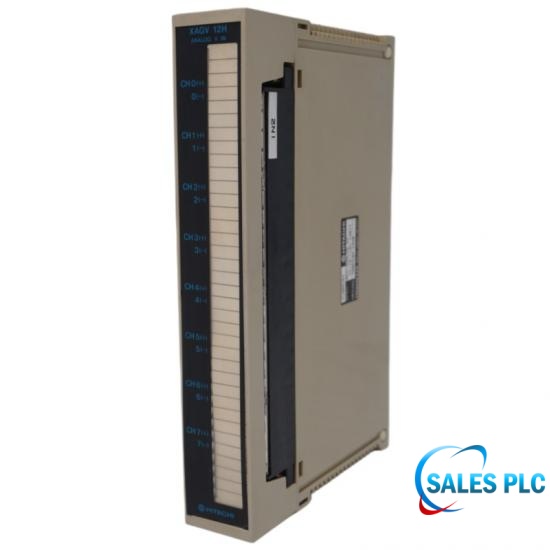

HITACHI XAGV12H Analog Input Module

Technical Specifications

• Provides 8-channel high-density analog signal inputs
• Supports standard industrial-grade -10V to +10V DC voltage signal inputs
• Features 12-bit resolution for high-precision analog-to-digital (A/D) conversion
• A slot-in special function module purpose-built for Hitachi H-Series medium-to-large PLC systems

The XAGV12H is an analog voltage input module for Hitachi H-Series (such as H-200, H-252, H-700, and H-2000) PLC systems. This module converts voltage changes from external sensors into digital signals within the PLC. It provides 8 independent analog input channels within a single slot space, with an input signal range of -10V to +10V DC. Featuring a built-in A/D converter with a 12-bit digital resolution, the module is used to monitor physical variables such as flow, pressure, temperature, liquid level, and mechanical displacement.

Applications and Features

Lifecycle and Market Status

The XAGV12H is currently discontinued by Hitachi. However, because traditional production lines and equipment worldwide still rely on Hitachi H-Series PLCs to run, this module remains in circulation across global refurbished, surplus, and obsolete spare parts markets as a discontinued spare part that keeps systems running and avoids complete line replacement costs.

Technical FAQ

Q: What function does XAGV12H serve in the system?
A: It converts voltage changes from external sensors into digital signals recognized by the PLC.

Q: What sensors are typically connected to XAGV12H?
A: It connects to pressure, temperature, liquid level, and displacement sensors with voltage output.

Q: What is the purpose of isolation in XAGV12H?
A:  To prevent external electromagnetic noise from entering the PLC backplane bus and main CPU.

Q: How to check if XAGV12H works normally in the program?
A: Read the 12-bit digital register values of the corresponding input channels via the PLC programming software.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
