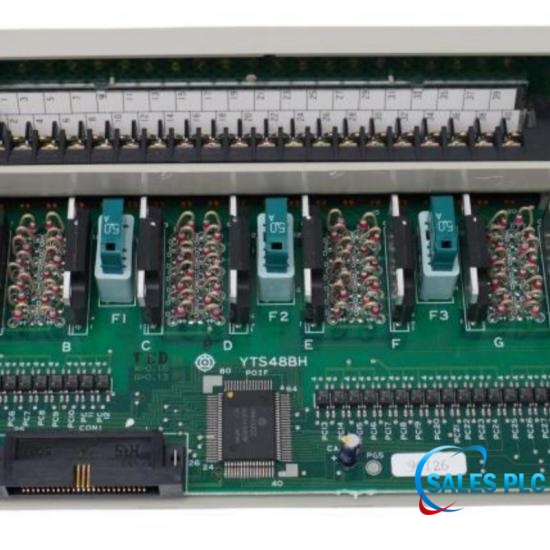

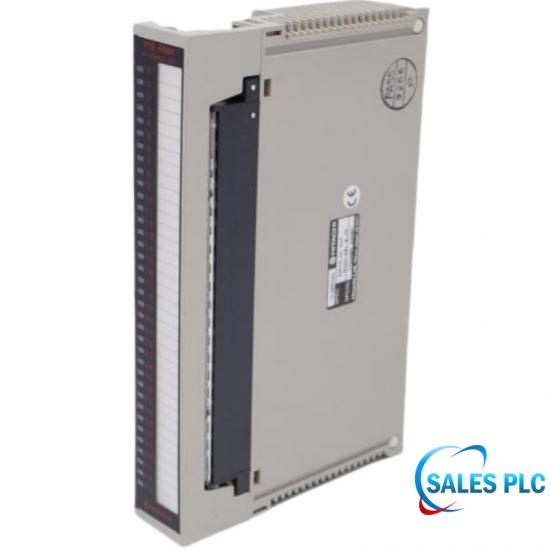

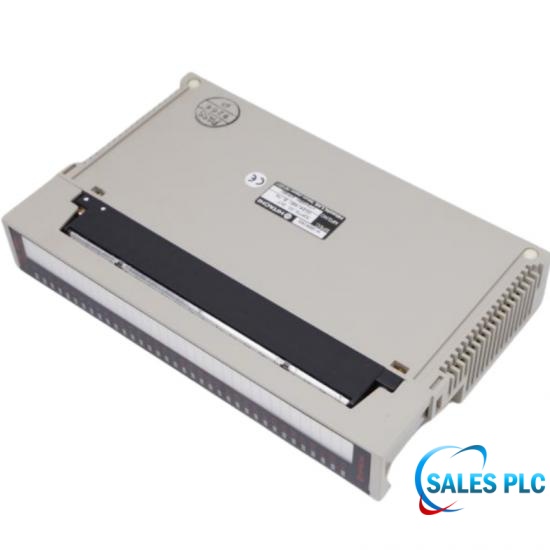

The YTS48BH is a 32-point DC output module within the Hitachi H-Series Programmable Logic Controller (PLC) system. In Stock Original New Unused.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales8@amikon.cnWhatsapp/Mob:
+86 18030235313
Technical Specifications
• Provides 32-point transistor sink output channels
• Supports 24V / 48V DC industrial direct current environments
• Maximum output drive current per channel is 0.7A
• Features a slot-in structure specifically designed for the Hitachi H-Series PLC systems.
The YTS48BH is a transistor output module from Hitachi, Japan, belonging to the H-Series Programmable Logic Controller product line. This module connects the PLC system and field actuators, converting logical commands from the controller into electrical signals to drive external industrial equipment. It provides 32 DC output points, operates within a voltage range of 24V DC to 48V DC, and has a maximum output current of 0.7A per point, allowing direct drive of DC solenoid valves, contactor coils, indicator lights, and other actuators.
|
Manufacturer |
HITACHI |
|
Model |
YTS48BH |
|
Maximum Load Current |
0.7A per point / 3.0A per common terminal |
|
Maximum Surge Current |
2.0 A |
|
Leakage Current (OFF State) |
0.1mA maximum (at 48V DC) |
|
Residual Voltage (ON State) |
1.5V DC maximum (at 0.7A) |
|
Response Time (OFF to ON) |
1.0ms or less |
|
Dimensions (W x H x D) |
32 x 210 x 133 mm |
|
Weight |
0.35 kg |
Applications and Features
The module uses semiconductor transistor switching technology, offering different response speeds and lifespans compared to traditional relay outputs, making it suitable for high-frequency switching, pulse control, or automation lines with specific response time requirements. The component integrates photocoupler isolation technology internally to block external electromagnetic interference from affecting the PLC's main CPU.
Lifecycle and Market Status
As a classic component representing Japan's early precision industrial manufacturing, the YTS48BH is currently discontinued by the manufacturer. However, due to its exceptional stability and low failure rate, a vast number of legacy automation systems worldwide still rely on it for daily operations. Today, it circulates actively in the global surplus, refurbished, and obsolete spare parts markets as a critical "obsolescence spare," helping industries maintain old control systems and avoid the high costs of complete production line overhauls.
Technical FAQ
Q: What is the primary function of YTS48BH?
A: It converts internal PLC logical commands into external electrical signals to drive industrial field equipment.
Q: How many output points does YTS48BH provide?
A: This module provides 32 independent DC output points.
Q: How to install and use the YTS48BH module?
A: Insert it into a compatible H-Series PLC rack slot and connect the external power supply and load pins.
Q: How to inspect a faulty YTS48BH?
A: Check the module's status indicators, test the output terminal voltage, and measure whether the external load is short-circuited.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
