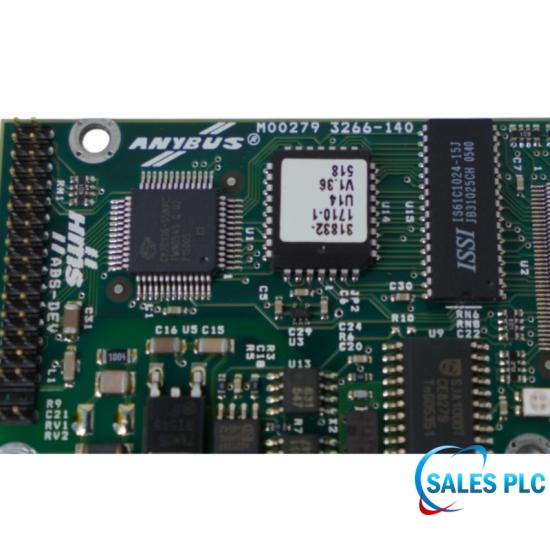

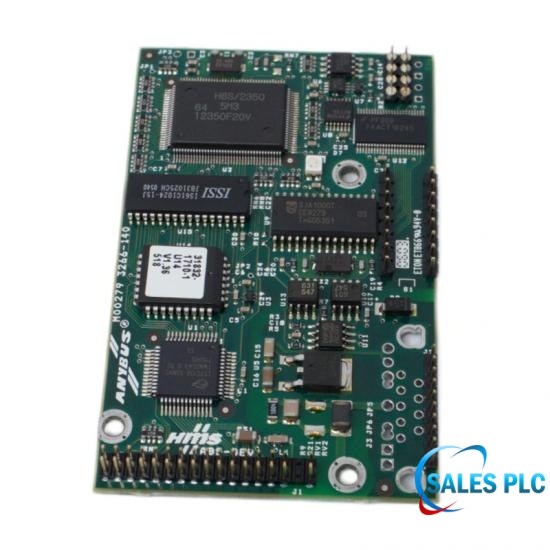

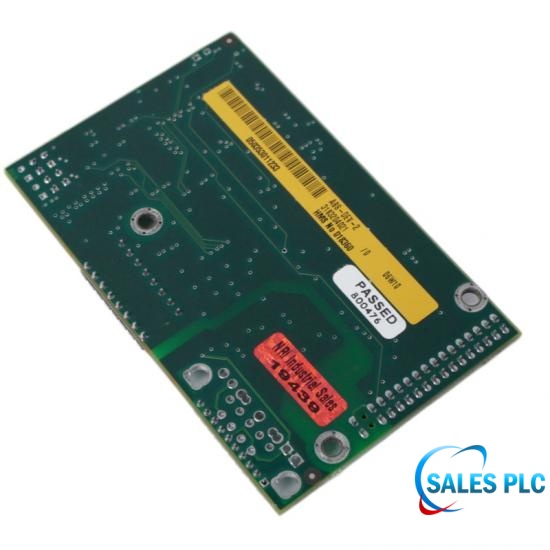

HMS M00279 3266-140 Control Card Module

Technical Specifications

• Embedded multi-pin board mounts directly onto HITACHI mainboards/inverters, granting robust network connectivity.
• Utilizing Anybus architecture, it acts as a dedicated DeviceNet gateway for millisecond-level cyclic data exchange.
• The physical layer incorporates rigid isolation to block ground loop currents and eliminate intense EMI conduction.
• Onboard logic tracks bus states, instantly triggering hardware interrupts to the host system upon anomalies.

The M00279 3266-140 utilizes the Anybus communication architecture, functioning as a dedicated protocol gateway module to interface industrial slave hardware directly with fieldbus networks, such as DeviceNet. Due to its modular plug-in form factor, the module is integrated onto proprietary host controller mainboards across major automation ecosystems, including HITACHI control architectures.

Data Processing and Fault Tolerance

This M00279 3266-140 delivers real-time cyclic data exchange and non-cyclic parameter routing, maintaining high signal synchronization between host processors and industrial networks. Incorporating robust physical layer isolation to eliminate network noise and ground loop currents, the card supports continuous 24/7 process monitoring as onboard diagnostics constantly track connection states and logic voltages. Upon bus errors or transmission timeouts, the module invokes instant safety subroutines to secure data integrity while notifying the host system via hardware interrupts.

Lifecycle and Market Status

The M00279 3266-140 is currently positioned in the mature/maintenance phase. It functions mainly as a replacement unit for legacy Hitachi PLC systems, with procurement emphasizing certified stock for long-term support Source.

Technical FAQ

Q: What is the primary application of the M00279 3266-140 module?
A: It is primarily used for data acquisition, signal conversion of field-level devices, or communication linkage with the main PLC.

Q:  How to install and connect M00279 3266-140 in a system?
A:  It should be inserted into a compatible industrial rack slot and connected to external input/output cables via designated backplane bus interfaces or terminal strips.

Q: What physical interfaces are included on the M00279 3266-140 module?
A: It is equipped with a backplane gold finger interface for system connection, as well as specialized pluggable terminal blocks for field wiring.

Q: What hardware protection features does M00279 3266-140 possess?
A: Circuit includes over-current, over-voltage protection, and optocoupler isolation for industrial operational stability.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
