Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications

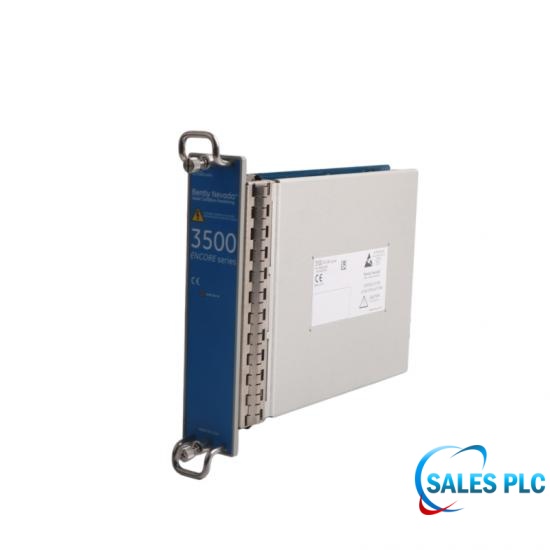

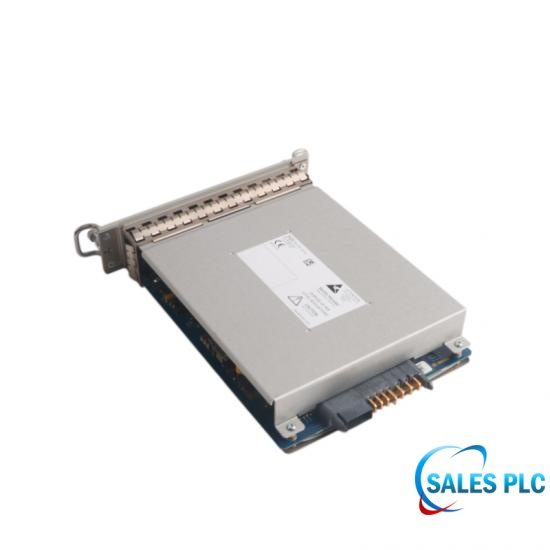

The 3500 Encore Power Supplies are full height modules and must be installed in the specially designed slots on the left side of the rack. The 3500 Encore power supply works with the existing Power Input Module and transformer or DC input board within existing 3300 racks. The 3500 Encore Power Supplies accept a wide range of input voltages and converts them to voltages acceptable for use by other 3500 Encore modules.
|
Manufacturer |
Bently Nevada |
|
Article number |
3500/15E |
|
Type |
Power Supply |
|
Inputs Voltage Options: |
Voltage AC, Low Voltage DC, High Voltage DC |
|
AC Input Voltage |
95 to 125 Vac 190 to 250 Vac |
|
AC Input Frequency |
47 to 63 Hz |
|
Low Voltage DC Input voltage |
20 to 34 Vdc |
|
High Voltage DC Input voltage |
88 to 140 Vdc |
|
Full Rack Current Draw(Low Voltage AC) |
4.5 A rms (maximum) |
|
Full Rack Current Draw(High Voltage AC) |
2.3 A rms (maximum) |
|
Full Rack Current Draw(Low Voltage DC) |
7.5 A (maximum) |
|
Full Rack Current Draw(High Voltage DC) |
1.9 A (maximum) |
|
Outputs Front Panel LEDs (Supply OK LED) |
Indicates when the power supply is operating properly |
|
Operating Temperature |
-20 °C to +65 °C (-4 °F to +150 °F) |
|
Storage Temperature |
-30 °C to +85 °C (-22 °F to +185 °F) |
|
Humidity |
95%, non-condensing |
|
Rack Space Requirements |
1 full-height front slot, located on the left side of the rack |
|
Dimension: |
5.5x29x23cm |
|
Weight: |
1.42kg |
Features
Retrofit for Legacy Systems: Installed in a dedicated slot on the far left of the 3500/05E instrumentation cabinet. It works directly with existing Power Input Modules (PIMs), transformers, or DC input boards in the 3300 rack, eliminating the significant work involved in re-laying power cables and modifying the cabinet backplane.
Status Indication and Self-Diagnosis: A green "Supply OK" LED indicator is present on the panel. This light remains constantly lit when the module detects that the DC voltage output to all monitoring modules within the rack (such as the 3500/42E vibration module and the 3500/23E interface module) is normal. An alarm will be triggered in case of overvoltage or hardware failure (some versions also have a red LED fault indicator).
Electromagnetic Compatibility and Safety: Built-in standard line noise filter, fully compliant with industrial-grade **EMC (Electromagnetic Compatibility) specifications and Low Voltage Directive (LVD) requirements. Its back typically features a hinged power protector to prevent accidental contact with exposed high-voltage terminals.
Key differences from the standard 3500/15 (do not confuse)
Height: The standard 3500/15 is a half-height module (two power supplies can be installed in one slot for redundancy); while the 3500/15E is a full-height module, occupying the entire height slot.
Redundancy mechanisms: Dual power supply redundancy is strongly recommended for the standard 3500 system; however, in the upgraded 3500 ENCORE rack (supporting in-situ modification of the 3300 frame), the dedicated space on the left side of the upgraded rack typically only supports the installation of a single power supply module and a single system monitor (TDI).
Technical FAQ
Q: When configuring the Bently Nevada 3500/15E Power Supply Module, what are the mandatory limitations regarding the number of power supplies and redundancy mode in a rack?
A: A single rack can accommodate a maximum of two power supply modules to provide dual redundancy. The lower slot serves as the primary power supply, while the upper slot serves as the backup power supply.
Q: Can the original Power Input Module (PIM) used with the Bently Nevada 3500/15E Power Supply Module be mixed with legacy 3500 power supplies?
A: No. The 3500/15E universal AC power supply and its corresponding PIM are not compatible with earlier-generation AC power supply modules or older PIM versions.
Q: Is a single Bently Nevada 3500/15E Power Supply Module capable of independently supporting a fully loaded 3500 rack?
A: Yes. Whether operating as the primary or backup unit, any single 3500/15E module is designed to provide sufficient power for a fully populated rack and all installed monitoring modules.
Q: In which specific slots should the Bently Nevada 3500/15E Power Supply Module be installed within a 3500 rack?
A: It must be installed in the dedicated half-height power supply slots located at the far left side of the rack, specifically Slot P1 and Slot P2.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
