Transient Data Interface | 3500/23E | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications

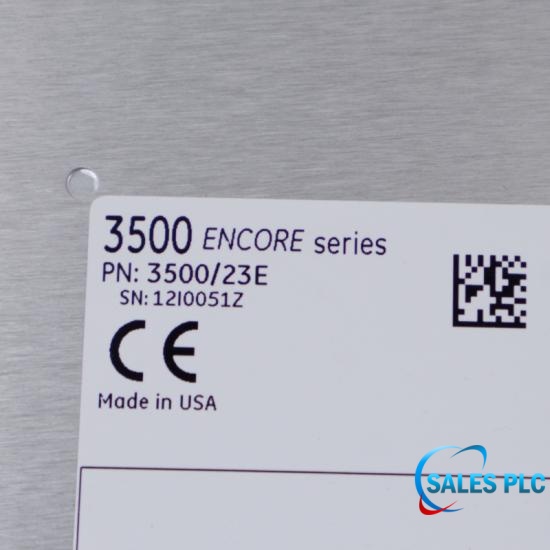

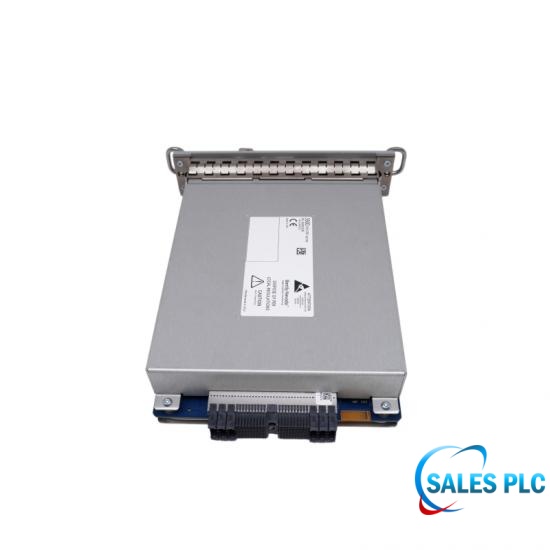

The Bently Nevada 3500/23E TDl is the communication interface between the 3500 ENCORE monitoring system and GE's System 1@ software, combining System Monitor functionality with advanced data collection capabilities. It resides in Slot 1of the 3500 ENCORE rack.
|
Manufacturer |
Bently Nevada |
|
Article number |
3500/23E |
|
Type |
Transient Data Interface |
|
Ethernet Ports |
2 x 10Base-T / 100Base-TX |
|
Ethernet Connector Type |
Auto-sensing RJ-45 |
|
Max Ethernet Cable Length |
100 m |
|
Serial Communication Protocols |
RS-232; RS-422; RS-485 |
|
Max Baud Rate |
115.2 kbaud |
|
RS-232 Cable Length |
Max 30 m |
|
RS-422/RS-485 Cable Length |
Max 1220 m |
|
Keyphasor Inputs |
4 channels |
|
Keyphasor Capability |
Up to 20 kHz multiple events per revolution |
|
Waveform Sampling (Synchronous) |
16–1024 samples/rev over 2–128 revolutions |
|
Waveform Sampling (Asynchronous) |
10 Hz–30 kHz, anti-alias filtered |
|
Alarm Data Rate |
Static values at 1 s and 100 ms intervals |
|
Waveform Alarm Function |
Pre- and post-alarm capture supported |
|
Operating Temperature |
0 °C to +65 °C |
|
Airflow Requirement |
300 ft/min above +55 °C |
|
Storage Temperature |
–40 °C to +85 °C |
|
Compliance |
CE (EN61000-6-4 EMC; EN61010-1 Safety) |
|
Hazardous Area Rating |
Class I, Division 2 (T4A @ –20 °C to +60 °C) |
|
Dimensions |
5.2 x 28.5 x 23 cm |
|
Weight |
1.42 kg |
|
Supported Protocols |
Modbus RTU; Bently Nevada Host Protocol; BN TDI over Ethernet TCP/IP |
|
Battery Life (Powered) |
38 years @ 50 °C |
|
Battery Life (Unpowered) |
12 years @ 50 °C |
Features
Collects steady-state and transient waveform data via Ethernet
Supports static and dynamic data capture (requires optional Channel Enabling Disk for
transients)
Integrates with automation systems using RS232/RS422/RS485 and Ethernet protocols

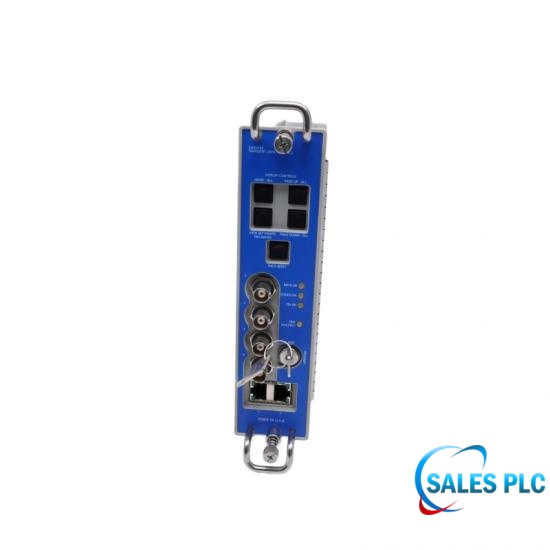

Includes front-panel controls: reset button,display switches, and RUN/PROGRAM keylock
mode selector
Applicable Equipment and Scenarios
The 3500/23E module is primarily used for permanent online monitoring of various critical rotating machinery, conforming to the American Petroleum Institute (API) 670 standard. Applicable machinery types include, but are not limited to: industrial gas turbines and steam turbines for power generation and mechanical drives; compressors (air compressors/process gas compressors, radial/axial, centrifugal/positive displacement); expanders; electric motors; generators; gearboxes; centrifugal pumps; and positive displacement pumps.
Technical FAQ
Q: What is the mandatory installation position of the 3500/23E Transient Data Interface (TDI) Module in the rack?
A: It must be installed in the slot immediately adjacent to the power supply module (typically Slot 1) to ensure proper coordination with the power supply and other monitoring modules.
Q: Is the 3500/23E TDI part of the critical path for machinery protection?
A: No. The operation or failure of this module does not affect the correct and normal functioning of the overall monitoring system, including relay protection logic.
Q: How can the 3500/23E be connected to System 1 Condition Monitoring and Diagnostic Software?
A: The Ethernet port located on either the front or rear panel of the TDI can be used to establish a single-cable connection over a standard TCP/IP network, eliminating the need for an external communication processor.
Q: Where can system configuration security be ensured to prevent unauthorized modifications on the 3500/23E?
A: A key-lock switch is provided on the front panel of the TDI. System configuration is protected by this hardware lock in combination with software password protection, effectively preventing unauthorized changes.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
