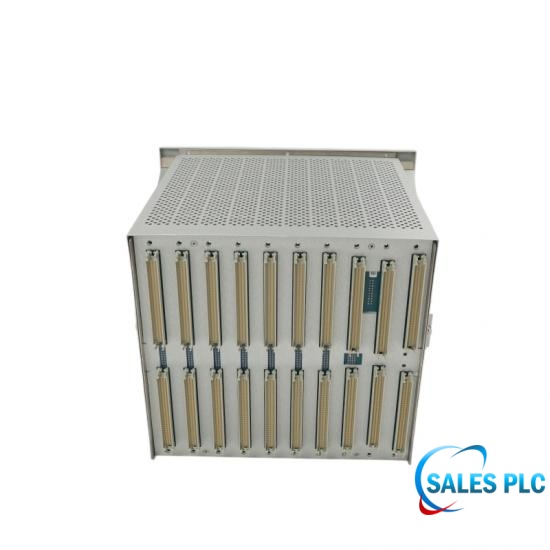

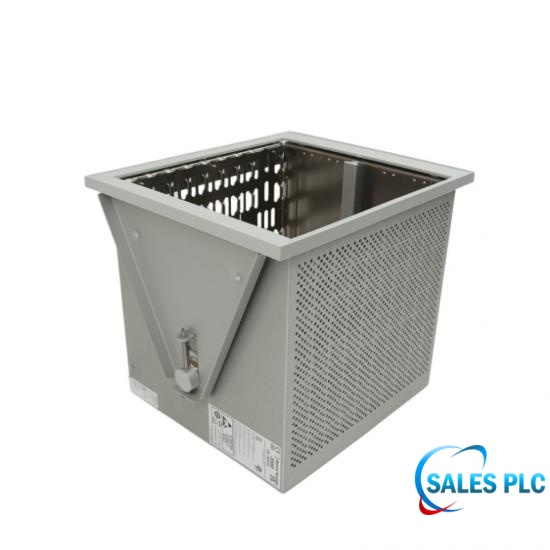

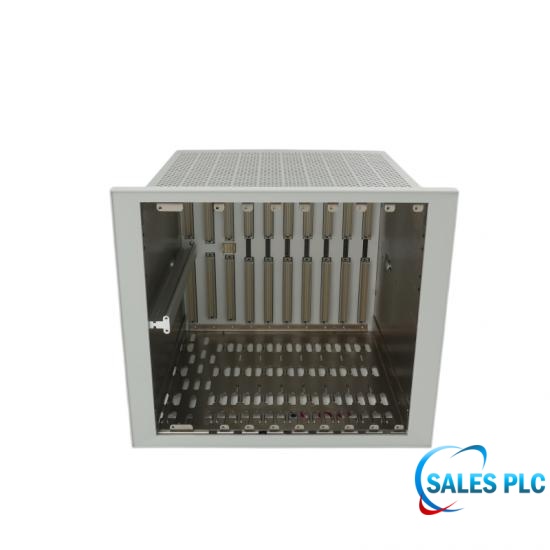

System Rack | 3500/05-02-04-00-00-00 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications
The 3500 System rack design holds all 3500 monitor modules and rack power supplies. It allows the various 3500 modules to communicate with one another and the power supplies to distribute power to each module as required. The Power Supplies and Rack Interface Module must occupy the far left rack positions. The remaining 14 rack positions (7 rack positions for the Mini-Rack) are available for any combination of modules. If you plan to install internal barriers in the 3500 rack, consult our document part number 141495-01, Specifications and Ordering Information for 3500 Internal Barriers.
|
Manufacturer |
Bently Nevada |
|
Article number |
3500/05-02-04-00-00-00 |
|
Type |
System Rack |
|
Rack Size |
12-inch Mini-Rack (7 module slots) |
|
Mounting Options |
Panel Mount Option, Mini-Rack |
|
Agency Approval Option |
None |
|
Reserved |
None |
|
Dimension: |
30.5x26.5x26.5cm |
|
Weight: |
5.15kg |
Slot Layout
Leftmost Slot (Slot 0): Requires installation of a 3500/15 power supply module. The mini-rack only supports single-power supply operation (dual redundant power supply configurations for the 19-inch rack are not supported).
Rightmost Slot (Slot 1): Requires installation of a 3500/22M rack interface module (TDI). This module handles the configuration, communication, and transient data acquisition of the entire rack.
Remaining 7 Slots (Slots 2 to 8): Can accommodate any combination of 3500 series monitoring modules.
Rear Maintenance Space
Due to panel mounting, all field sensor cables, relay output lines, and network cables are connected to their respective I/O modules from inside the rack (back of the rack). Therefore, ensure that there is at least 250-300 mm of clearance inside the rack to protect cable bending radius and facilitate wiring maintenance by technicians.
Technical FAQ
Q: What is the rack size of 3500/05-02-04-00-00-00?
A: A 12-inch mini rack containing 7 module slots.
Q: What installation options are supported by 3500/05-02-04-00-00-00?
A: It supports panel mounting and a mini rack configuration.
Q: What certification options are included in 3500/05-02-04-00-00-00?
A: This model currently has no agency certification options.
Q: What is the reserved parameter status of 3500/05-02-04-00-00-00?
A: The reserved parameter is none (not used).
Q: Can internal isolator barriers be added later for 3500/05-02-04-00-00-00 if explosion protection is required?
A: No. Because this configuration selects option -00 (no internal isolator barrier), it cannot be directly upgraded. If intrinsic safety is required for hazardous area sensors, external safety barriers must be installed in the cabinet (e.g., MTL or Pepperl+Fuchs isolators), or a rack with built-in internal isolator options must be selected at the initial configuration stage.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
