LC1D32F7C
3-Pole 32 A Contactor · 110 V AC 50/60 Hz Coil
Configuration note: Use the complete nameplate and current manufacturer documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 153594082753-Pole 32 A Contactor · 110 V AC 50/60 Hz Coil

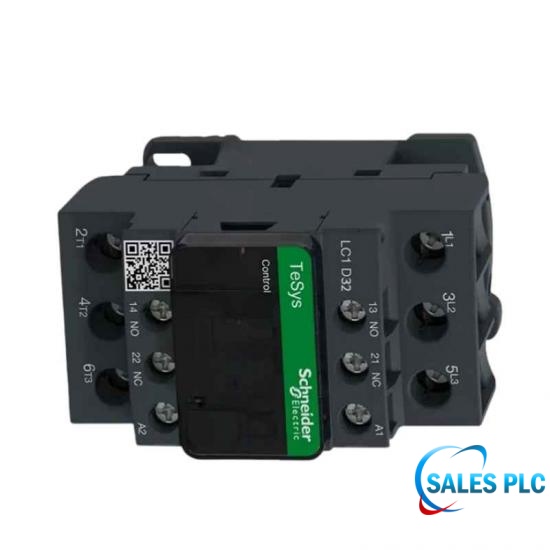

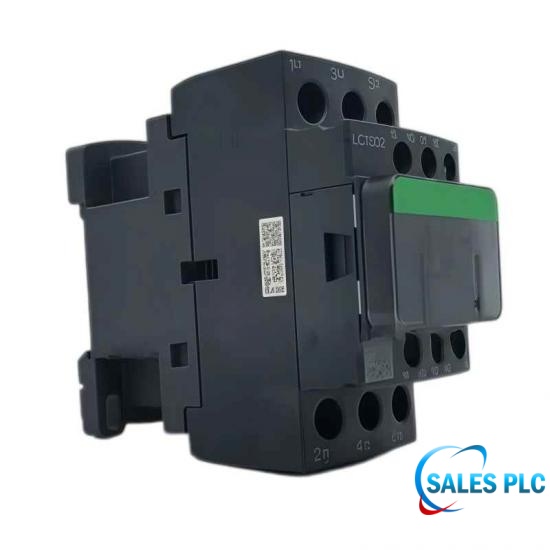

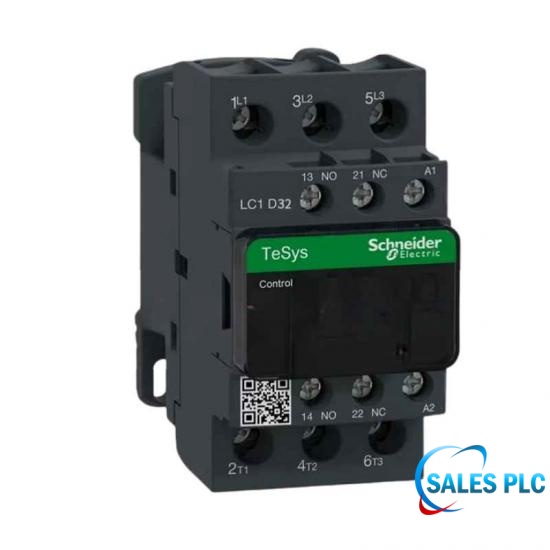

Schneider Electric LC1D32F7C is a TeSys Deca three-pole contactor with three normally open power poles. It is rated 32 A for AC-3 and AC-3e motor loads up to 440 V and uses a 110 V AC 50/60 Hz control coil.
The contactor includes one normally open and one normally closed auxiliary contact, with the NC contact designed as a mirror contact. Screw-clamp terminals and DIN-rail or base mounting support standard industrial motor-control panel installation.
The exact LC1D32F7C code must be retained because pole arrangement, current rating, coil voltage/frequency and regional suffix determine suitability. Verify motor voltage and power, control voltage, protective coordination, enclosure and certification before replacement.
| Manufacturer | Schneider Electric |
|---|---|
| Complete model | LC1D32F7C |
| Product range | TeSys Deca |
| Product type | Contactor |
| Power poles | 3P, 3 normally open |
| Utilization category | AC-3 / AC-3e up to 440 V |
| Rated operational current | 32 A at ≤440 V AC, ≤60°C |
| AC-1 current | 50 A |
| Control coil | 110 V AC, 50/60 Hz |
| Rated operational voltage | ≤690 V AC 25–400 Hz; ≤225 V DC |
| Motor power at 220/240 V | 7.5 kW |
| Motor power at 380/400 V | 15 kW |
| Motor power at 415/440 V | 15 kW |
| Motor power at 500 V | 18.5 kW |
| Motor power at 660/690 V | 18.5 kW |
| Built-in auxiliary contacts | 1 NO + 1 NC; NC mirror contact |
| Conventional free-air thermal current | 50 A power; 10 A signalling |
| Rated insulation voltage | 690 V |
| Impulse withstand voltage | 6 kV |
| Overvoltage / pollution | Category III / degree 3 |
| Mechanical durability | 15 million cycles |
| Electrical durability | 1.6 million cycles at 32 A AC-3/AC-3e ≤440 V |
| Maximum operating rate | 3600 cycles/hour at 60°C |
| Surge suppression | No built-in suppressor |
| Mounting | DIN rail or plate / base |
| Terminals | Screw clamp |
| Standards | IEC 60947-1; IEC 60947-4-1; GB/T 14048.4 |
| Certifications listed | CE, UKCA, CCC |
| Front protection | IP2X |
| Operating temperature | -40°C to +60°C; derating from +60°C to +70°C |
| Storage temperature | -60°C to +80°C |
| Dimensions | 85 × 45 × 92 mm |
| Weight | 0.375 kg |
Schneider Electric LC1D32F7C is a TeSys Deca three-pole 32 A AC-3/AC-3e contactor with a 110 V AC 50/60 Hz coil.
Schneider Electric LC1D32F7C switches compatible three-phase motor or AC loads and provides built-in 1 NO plus 1 NC auxiliary contacts.
Schneider Electric LC1D32F7C requires checking 32 A at ≤440 V AC-3/AC-3e, 110 V coil, motor kW by voltage, terminal type and environmental limits.
Schneider Electric LC1D32F7C must be checked against motor current and power, utilization category, control voltage and frequency, protection and panel dimensions.
Schneider Electric LC1D32F7C requires correct isolation, conductor sizing, terminal torque, protective coordination, DIN-rail or plate mounting and adequate enclosure temperature.
Schneider Electric LC1D32F7C should be tested for coil pickup and dropout, power-pole continuity, auxiliary logic, interlocks and motor rotation.
Schneider Electric LC1D32F7C is supported by a current Schneider Electric product datasheet dated January 2025; confirm availability and certificate needs at quotation.
Schneider Electric LC1D32F7C requires the full LC1D32F7C code, motor data, coil supply, quantity, certification needs and nameplate photos.
Schneider Electric LC1D32F7C data comes from the Schneider Electric datasheet for exact model LC1D32F7C.
Send the complete Schneider Electric model, part number, revision, quantity, destination and nameplate photo. Identification details will be verified before availability and lead time are confirmed.
