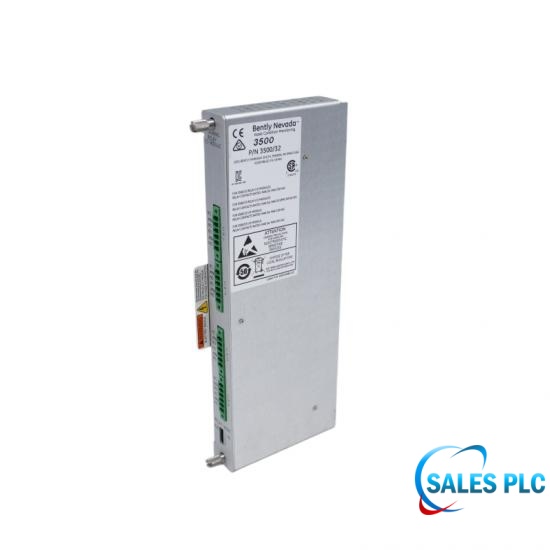

125720-02 Bently Nevada 3500/32M Relay Output Module
125720-02
125720-02 is the Bently Nevada Spare 4-Channel Relay Output Module for hazardous-area and functional-safety systems identified exactly in Baker Hughes 3500/32M 4-Channel Relay Module Datasheet, document 141533 Rev. W. Four epoxy-sealed SPDT relays are individually switch-selectable for normally energized or normally de-energized operation. 125720-02 is limited to the rear four-channel relay output module only and does not include the front relay control module, rack, TDI, certification, software, and field wiring.
Scope note: 125720-02 is not a complete system. A complete matched path requires the correct front relay control module, approved 3500 rack order, TDI, software, and field wiring.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Exact Baker Hughes spare-part identity with component and complete-system boundaries clearly separated.
Baker Hughes 3500/32M 4-Channel Relay Module Datasheet, 141533 Rev. W, lists or decodes 125720-02 exactly as the Spare 4-Channel Relay Output Module for hazardous-area and functional-safety systems.
125720-02 is the restricted-voltage spare for hazardous-area and functional-safety systems. Four epoxy-sealed SPDT relays are individually switch-selectable for normally energized or normally de-energized operation.
125720-02 is not a complete system. A complete matched path requires the correct front relay control module, approved 3500 rack order, TDI, software, and field wiring.
| Part number | 125720-02 |
|---|---|
| Full model | 3500/32M 125720-02 |
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product family | 3500/32M 4-Channel Relay Module |
| Official spare identity | Spare 4-Channel Relay Output Module for hazardous-area and functional-safety systems |
| Component boundary | 125720-02 does not include the front relay control module, rack, TDI, certification, software, and field wiring |
| Official qualifier | For hazardous-area systems and functional-safety systems |
| Output channels | 4 |
| Relay type | Single-pole, double-throw (SPDT) |
| Sealing | Epoxy-sealed |
| Arc suppressor | 250 Vrms, installed as standard |
| Contact life | 100,000 cycles at 5 A, 24 Vdc or 240 Vac |
| Operation | Each relay is selectable for normally energized or normally de-energized |
| Restricted resistive ratings | 2 A maximum at 0 to 30 Vdc; 30 Vdc maximum; 2 A maximum at 30 Vac |
| Dimensions | 241 x 24.4 x 99.1 mm |
| Weight | 0.4 kg (1.0 lb) |
| Rack position | 1 full-height rear slot |
| Approval boundary | Approval requires the complete ordered configuration and cannot be assigned automatically to bare 125720-02 |
| Official source | Baker Hughes 3500/32M 4-Channel Relay Module Datasheet, 141533 Rev. W |
| Complete-system Required integration | A complete matched path using 125720-02 requires the correct front relay control module, approved 3500 rack order, TDI, software, and field wiring. |
| Complete-system System function | In a complete matched path using 125720-02, programmable voting and alarm-drive logic operate only in the configured rack path; bare 125720-02 does not perform the complete function independently. |
| Complete-system Limits and ratings | Any system performance, environmental limit, contact rating, or communications behavior for 125720-02 must be applied only to the stated complete matched configuration. |
| Complete-system Approvals | Approval claims for 125720-02 require a complete matched ordered and installed configuration with applicable certification evidence. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
Bently Nevada 125720-02 is the Spare 4-Channel Relay Output Module for hazardous-area and functional-safety systems identified exactly in Baker Hughes 3500/32M 4-Channel Relay Module Datasheet, document 141533 Rev. W.
Bently Nevada 125720-02 is not a complete system or assembly because 125720-02 does not include the front relay control module, rack, TDI, certification, software, and field wiring.
Bently Nevada 125720-02 is used or installed in one full-height rear slot behind the matching 3500/32M relay control module.
For Bently Nevada 125720-02, 125720-02 measures 241 x 24.4 x 99.1 mm and weighs 0.4 kg (1.0 lb).
Bently Nevada 125720-02 is the restricted-voltage spare for hazardous-area and functional-safety systems.
Bently Nevada 125720-02 includes the rear four-channel relay output module only; 125720-02 must not be represented as including unlisted companion hardware.
Baker Hughes 3500/32M 4-Channel Relay Module Datasheet, document 141533 Rev. W, confirms Bently Nevada 125720-02.
A system approval cannot be assumed for bare Bently Nevada 125720-02; 125720-02 must be evaluated in the complete ordered and installed configuration with applicable certification evidence.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
