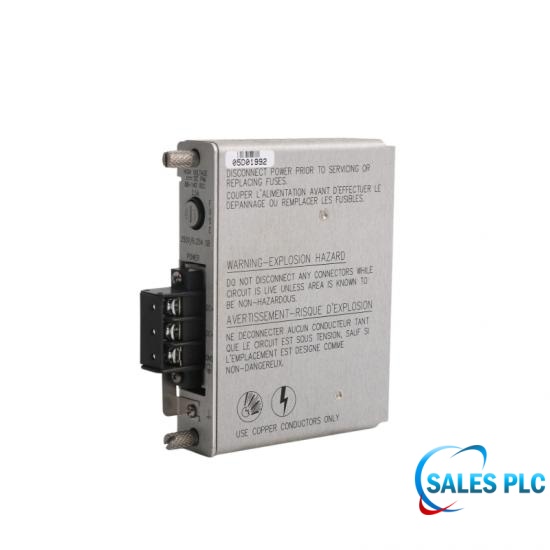

129478-01 Bently Nevada 3500/15 HV DC Power Input Module
129478-01
129478-01 is the Bently Nevada Legacy High Voltage DC Power Input Module identified exactly in Baker Hughes 3500/15 AC and DC Power Supplies Datasheet, document 141530 Rev. P. The matched legacy high-voltage DC supply path is specified for 88 to 140 Vdc input. 129478-01 is limited to the legacy Power Input Module only and does not include the associated power supply module, rack, fuse arrangement, redundancy, and field wiring.
Scope note: 129478-01 is not a complete system. A complete matched path requires the correct legacy high-voltage DC supply module, rack connection, fuse arrangement, and field wiring.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Exact Baker Hughes spare-part identity with component and complete-system boundaries clearly separated.
Baker Hughes 3500/15 AC and DC Power Supplies Datasheet, 141530 Rev. P, lists or decodes 129478-01 exactly as the Legacy High Voltage DC Power Input Module.
129478-01 is the legacy high-voltage DC Power Input Module. The matched legacy high-voltage DC supply path is specified for 88 to 140 Vdc input.
129478-01 is not a complete system. A complete matched path requires the correct legacy high-voltage DC supply module, rack connection, fuse arrangement, and field wiring.
| Part number | 129478-01 |
|---|---|
| Full model | 3500/15 129478-01 |
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product family | 3500/15 AC and DC Power Supplies |
| Official spare identity | Legacy High Voltage DC Power Input Module |
| Component boundary | 129478-01 does not include the associated power supply module, rack, fuse arrangement, redundancy, and field wiring |
| Component class | Power Input Module (PIM) |
| Lifecycle qualifier | Legacy |
| Matched voltage option | 88 to 140 Vdc |
| Dimensions | 120.7 x 25.4 x 114.3 mm |
| Weight | 0.34 kg (0.75 lb) |
| Rack position | Special half-height module directly behind the associated supply |
| Supply boundary | Associated legacy high-voltage DC power supply is not included |
| Compatibility | Current DC supplies and PIMs are not compatible with legacy DC supplies and PIMs |
| Current boundary | 2.5 A maximum is a full-rack high-voltage DC value, not a bare-PIM rating |
| Approval boundary | Approval requires the complete ordered configuration and cannot be assigned automatically to bare 129478-01 |
| Official source | Baker Hughes 3500/15 AC and DC Power Supplies Datasheet, 141530 Rev. P |
| Complete-system Required integration | A complete matched path using 129478-01 requires the correct legacy high-voltage DC supply module, rack connection, fuse arrangement, and field wiring. |
| Complete-system System function | In a complete matched path using 129478-01, input conversion and rack power depend on the complete matched legacy supply path; bare 129478-01 does not perform the complete function independently. |
| Complete-system Limits and ratings | Any system performance, environmental limit, contact rating, or communications behavior for 129478-01 must be applied only to the stated complete matched configuration. |
| Complete-system Approvals | Approval claims for 129478-01 require a complete matched ordered and installed configuration with applicable certification evidence. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
Bently Nevada 129478-01 is the Legacy High Voltage DC Power Input Module identified exactly in Baker Hughes 3500/15 AC and DC Power Supplies Datasheet, document 141530 Rev. P.
Bently Nevada 129478-01 is not a complete system or assembly because 129478-01 does not include the associated power supply module, rack, fuse arrangement, redundancy, and field wiring.
Bently Nevada 129478-01 is used or installed in the special half-height position directly behind its associated 3500/15 power supply.
For Bently Nevada 129478-01, 129478-01 measures 120.7 x 25.4 x 114.3 mm and weighs 0.34 kg (0.75 lb).
Bently Nevada 129478-01 is the legacy high-voltage DC Power Input Module.
Bently Nevada 129478-01 includes the legacy Power Input Module only; 129478-01 must not be represented as including unlisted companion hardware.
Baker Hughes 3500/15 AC and DC Power Supplies Datasheet, document 141530 Rev. P, confirms Bently Nevada 129478-01.
A system approval cannot be assumed for bare Bently Nevada 129478-01; 129478-01 must be evaluated in the complete ordered and installed configuration with applicable certification evidence.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
