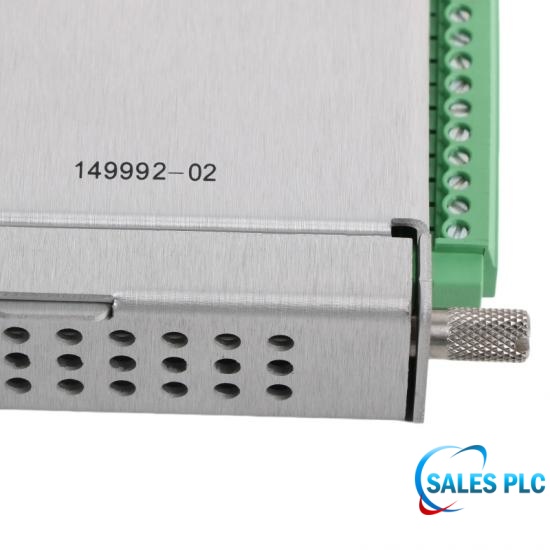

149992-02 Bently Nevada 3500/33 16-Channel Failsafe Relay
149992-02
149992-02 is the Bently Nevada Spare 16-Channel Failsafe Relay Output Module identified exactly in Baker Hughes 3500/33 16-Channel Relay Module Datasheet, document 162301 Rev. AC. Sixteen standard silver-contact SPDT relays are arranged in four groups of four channels with restricted failsafe and hazardous-area voltage limits. 149992-02 is limited to the rear 16-channel failsafe relay output module only and does not include the front relay control module, rack, TDI, certification, software, and field wiring.
Scope note: 149992-02 is not a complete system. A complete matched path requires the correct front relay control module, approved 3500 rack order, TDI, software, and field wiring.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Exact Baker Hughes spare-part identity with component and complete-system boundaries clearly separated.
Baker Hughes 3500/33 16-Channel Relay Module Datasheet, 162301 Rev. AC, lists or decodes 149992-02 exactly as the Spare 16-Channel Failsafe Relay Output Module.
149992-02 is the failsafe 16-channel relay output spare with silver contacts. Sixteen standard silver-contact SPDT relays are arranged in four groups of four channels with restricted failsafe and hazardous-area voltage limits.
149992-02 is not a complete system. A complete matched path requires the correct front relay control module, approved 3500 rack order, TDI, software, and field wiring.
| Part number | 149992-02 |
|---|---|
| Full model | 3500/33 149992-02 |
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product family | 3500/33 16-Channel Relay Module |
| Official spare identity | Spare 16-Channel Failsafe Relay Output Module |
| Component boundary | 149992-02 does not include the front relay control module, rack, TDI, certification, software, and field wiring |
| Output channels | 16 |
| Relay grouping | Four groups of four channels |
| Relay type | Single-pole, double-throw (SPDT) |
| Contact material | Standard silver contacts |
| Sealing | Epoxy-sealed |
| Arc suppressor | 250 Vrms, installed as standard |
| Contact life | 10,000 cycles |
| Operation | Each group of four is selectable for normally energized or normally de-energized |
| Minimum switched current | 100 mA at 5 Vdc |
| Restricted resistive ratings | 5 A maximum and 30 Vdc maximum for failsafe and hazardous-area systems |
| Dimensions | 241 x 24.4 x 99.1 mm |
| Weight | 0.4 kg (1.0 lb) |
| Rack position | 1 full-height rear slot |
| Approval boundary | Approval requires the complete ordered configuration and cannot be assigned automatically to bare 149992-02 |
| Official source | Baker Hughes 3500/33 16-Channel Relay Module Datasheet, 162301 Rev. AC |
| Complete-system Required integration | A complete matched path using 149992-02 requires the correct front relay control module, approved 3500 rack order, TDI, software, and field wiring. |
| Complete-system System function | In a complete matched path using 149992-02, failsafe voting and alarm-drive behavior operate only in the configured certified rack path; bare 149992-02 does not perform the complete function independently. |
| Complete-system Limits and ratings | Any system performance, environmental limit, contact rating, or communications behavior for 149992-02 must be applied only to the stated complete matched configuration. |
| Complete-system Approvals | Approval claims for 149992-02 require a complete matched ordered and installed configuration with applicable certification evidence. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
Bently Nevada 149992-02 is the Spare 16-Channel Failsafe Relay Output Module identified exactly in Baker Hughes 3500/33 16-Channel Relay Module Datasheet, document 162301 Rev. AC.
Bently Nevada 149992-02 is not a complete system or assembly because 149992-02 does not include the front relay control module, rack, TDI, certification, software, and field wiring.

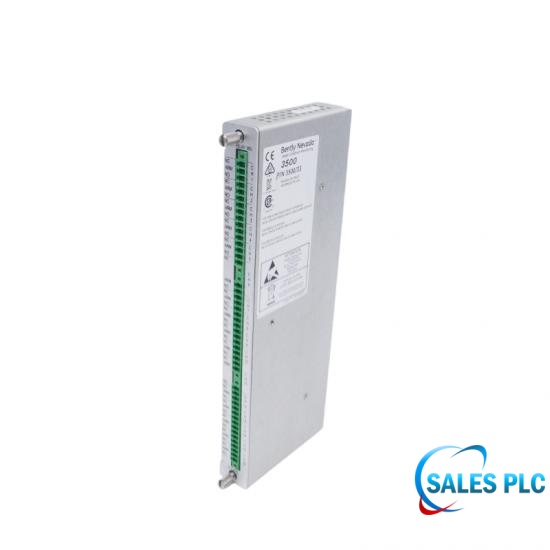

Bently Nevada 149992-02 is used or installed in one full-height rear slot behind the matching 3500/33 relay control module.
For Bently Nevada 149992-02, 149992-02 measures 241 x 24.4 x 99.1 mm and weighs 0.4 kg (1.0 lb).
Bently Nevada 149992-02 is the failsafe 16-channel relay output spare with silver contacts.
Bently Nevada 149992-02 includes the rear 16-channel failsafe relay output module only; 149992-02 must not be represented as including unlisted companion hardware.
Baker Hughes 3500/33 16-Channel Relay Module Datasheet, document 162301 Rev. AC, confirms Bently Nevada 149992-02.
A system approval cannot be assumed for bare Bently Nevada 149992-02; 149992-02 must be evaluated in the complete ordered and installed configuration with applicable certification evidence.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
