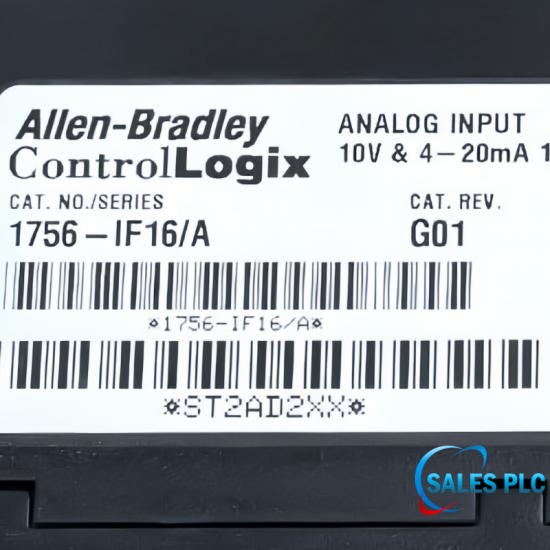

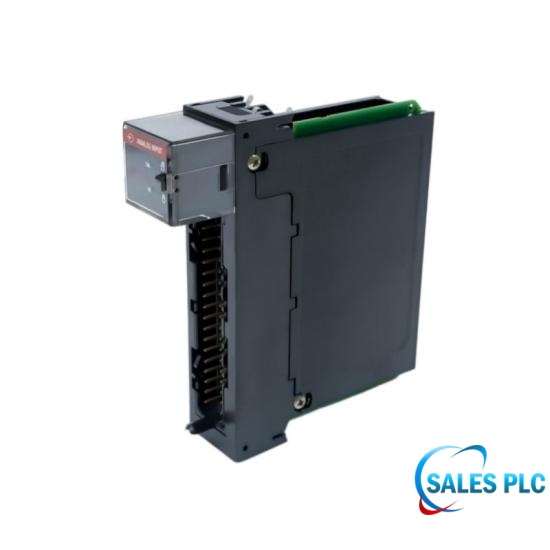

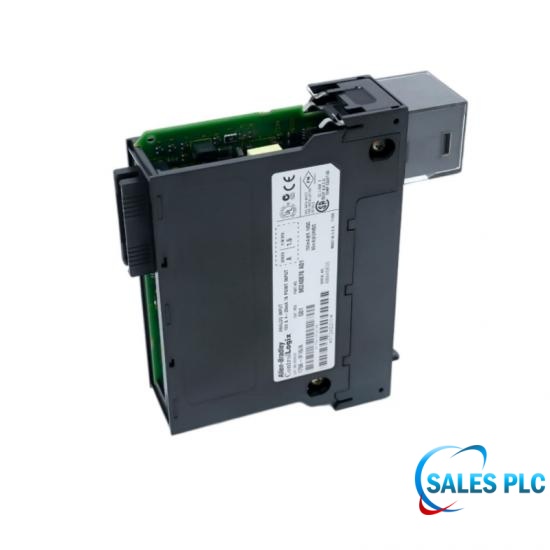

1756-IF16 PLC ControlLogix 16-Point Current and Voltage Analog Input Module
1756-IF16
Configurable analog input module supporting voltage and current signals in single-ended, differential or high-speed differential wiring modes. Confirm the exact installed configuration and revision before replacement.
Scope note: Supplied as a model-specific industrial component; system engineering, accessories and site acceptance are verified separately.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 1815011768516-point current and voltage analog input module for ControlLogix 1756
This active ControlLogix analog input module accepts four voltage or current ranges and can be configured for sixteen single-ended, eight differential or four high-speed differential inputs.
Input channels share a common isolation group rather than individual channel isolation, while removable terminal block choice, current-loop return wiring and digital filtering must be matched to the application.
Ordering note: Verify the complete model, installed system, revision and current manufacturer documentation before purchase or installation.
| Product type | ControlLogix current and voltage analog input module |
|---|---|
| Input configuration | 16 single-ended, 8 differential, or 4 high-speed differential inputs |
| Input ranges | ±10 V, 0–10 V, 0–5 V, and 0–20 mA |
| Resolution | 15 bits plus sign at ±10.25 V; 16 bits on unipolar voltage and current ranges |
| Backplane load | 150 mA at 5.1 VDC and 65 mA at 24 VDC |
| Input impedance | Greater than 10 MΩ for voltage; 249 Ω for current |
| Calibrated accuracy at 25 °C | Better than 0.05% of range for voltage and 0.15% for current |
| Isolation / terminal blocks | 250 V reinforced input-to-backplane; 1756-TBCH or 1756-TBS6H |
Compatibility depends on the complete ordering code, installed hardware, wiring and approved engineering data.
It accepts ±10 V, 0–10 V, 0–5 V, and 0–20 mA analog signals.
It provides sixteen single-ended inputs, eight differential inputs, or four high-speed differential inputs.
The channels are not isolated from one another, while the input group has reinforced 250 V continuous isolation from the backplane.
It accepts either the 1756-TBCH cage-clamp block or the 1756-TBS6H spring-clamp block.
Each current input uses an internal 249 Ω loop resistor and requires its iRTN terminal to be connected to RTN.
Send the complete 1756-IF16 model, quantity, installed system, destination and clear label photos. Availability and condition will be confirmed before quotation.
