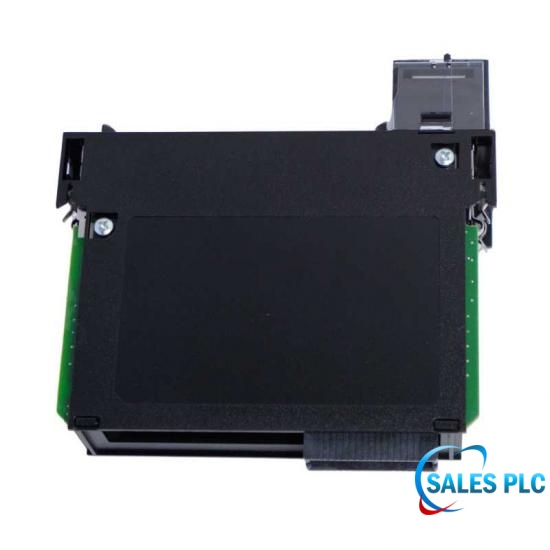

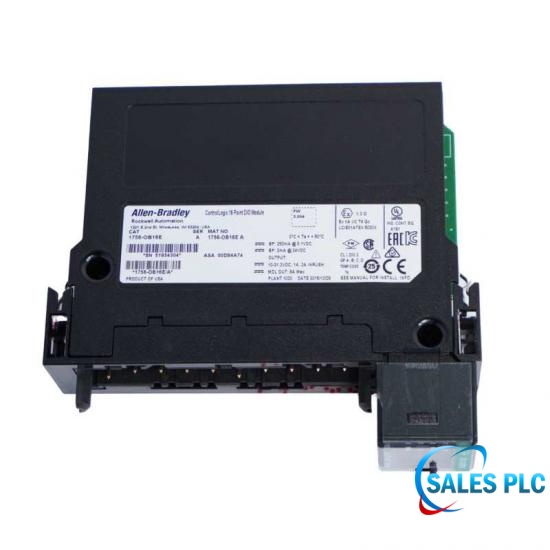

1756-OB16E
16-Point DC Output Module · Electronically Fused 12/24 VDC Source Output Module
Lifecycle note: Use the unit nameplate and current official documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 1535940827516-Point DC Output Module · CL Chassis I/O Platform
1756-OB16E is a 16-point source output module with electronic fusing arranged as two groups of eight outputs. It switches 12/24 VDC field loads across a 10 to 31.2 VDC operating range.
The official data specifies 1 A maximum per point, 8 A maximum per module at 60 °C, 3 mA minimum load current and maximum delays of 1 ms in either switching direction.
Engineering checks should cover group loading, inrush current, electronic-fuse behavior, field supply, fault/program state configuration, terminal-block selection, output ownership and the chassis power budget.
| Manufacturer | PLC |
|---|---|
| Model | 1756-OB16E |
| Product type | Electronically Fused 12/24 VDC Source Output Module |
| System family | CL Chassis I/O Platform |
| Catalog number | 1756-OB16E |
| Outputs | 16 electronically fused |
| Grouping | 8 points per group |
| Output type | 12/24 VDC source |
| Operating voltage | 10 to 31.2 VDC |
| Current per point | 1 A maximum at 60 °C |
| Current per module | 8 A maximum at 60 °C |
| Minimum load current | 3 mA per point |
| Off-state leakage | 1 mA maximum per point |
| On-state voltage drop | 400 mV maximum at 1 A |
| Off-to-on delay | 70 µs nominal / 1 ms maximum |
| On-to-off delay | 360 µs nominal / 1 ms maximum |
| Backplane power | 1.32 W |
| Power dissipation | 4.1 W maximum at 60 °C |
| Isolation | 250 V continuous, outputs-to-backplane and group-to-group |
| Compatible terminal blocks | 1756-TBNH or 1756-TBSH |
1756-OB16E is a 16-point electronically fused source output module for 12/24 VDC field loads, arranged as two groups of eight outputs with separate group loading limits.
1756-OB16E operates from 10 to 31.2 VDC and supports up to 1 A per point and 8 A per module at 60 °C, subject to load and inrush limits.
The electronic fusing in 1756-OB16E protects output groups differently from replaceable mechanical fuses, so fault behavior, reset procedure and configured output states must be reviewed.
1756-OB16E uses compatible 1756-TBNH or 1756-TBSH removable terminal blocks; the installed block, keying and field wiring must match the replacement module.
Before replacing 1756-OB16E, verify field-supply polarity, group current, load inrush, terminal-block wiring, output ownership, fault/program state settings and chassis power capacity.

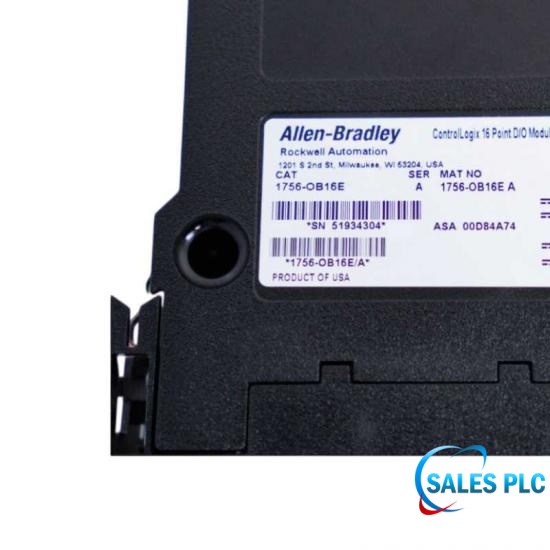

A 1756-OB16E inquiry should include catalog and series, quantity, field voltage, load type and current, terminal-block catalog, chassis details and clear wiring and nameplate photographs.
Send the complete 1756-OB16E catalog number, revision, quantity, destination and nameplate photo. Identification details will be checked before availability and lead time are confirmed.
