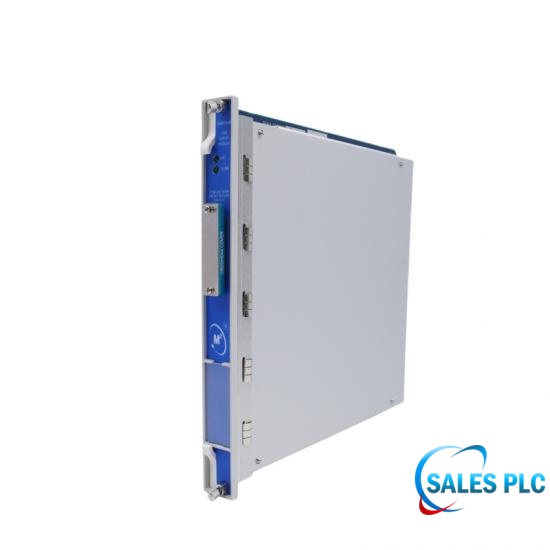

184826-01 Bently Nevada 3500/94M VGA Display Main Module
184826-01
184826-01 is the Bently Nevada 3500/94M main module identified in Baker Hughes datasheet 122M3217 Rev. N. 184826-01 occupies one full-height front rack slot and is the front VGA module in a configured 3500/94M display path. 184826-01 is not a rear I/O module and does not include the matched I/O module, touch display, display cables, 3500/22 TDI, rack, or complete 3500/94M system.
Scope note: 184826-01 is the front main module. 184826-01 is not a rear I/O module, a touch display, a display router, a KVM extender, or a complete 3500/94M system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Official exact-spare identity with front module, rear I/O and complete display-system boundaries kept separate.
Baker Hughes datasheet 122M3217 Rev. N lists 184826-01 exactly as the 3500/94M Main module.
184826-01 is the front main module. 184826-01 is not a rear I/O module, a touch display, a display router, a KVM extender, or a complete 3500/94M system.
A complete matched 3500/94M display path uses a front main module, associated I/O module, supported 10-inch or 15-inch touch display and cables, compatible rack with 3500/22 TDI, and the required firmware and software configuration.
| Part number | 184826-01 |
|---|---|
| Full model | 3500/94M 184826-01 |
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product family | 3500/94M VGA Display Monitor |
| Official spare identity | 3500/94M Main module |
| Component class | Front VGA display main module |
| Rack position | 1 full-height front slot |
| Dimensions | 241.3 x 24.4 x 241.8 mm (9.5 x 0.96 x 9.52 in) |
| Weight | 0.73 kg (1.6 lb) |
| Associated rear component | A compatible 3500/94M I/O module is required; 190214-01 is the separately identified Normal I/O spare |
| Supported system displays | Configured 3500/94M paths support the specified Advantech 10-inch or 15-inch touch displays |
| Required rack interface | A configured 3500/94M system requires a 3500/22 TDI module |
| Display information | The configured system can show event lists, alarms, module and channel data, status, and custom screens |
| Power consumption | 4.6 W maximum is stated for the 3500/94M VGA Display Unit; do not treat it as an independently measured bare-184826-01 value |
| Environmental limits | The VGA Display Unit is rated -20 to +65 deg C operating, -40 to +85 deg C storage, and 95% non-condensing humidity |
| Approval boundary | Do not assign a hazardous-area approval to bare 184826-01 without the configured system order option and applicable certification evidence |
| Official source | Baker Hughes / Bently Nevada datasheet 122M3217 Rev. N |
| Complete-system Required matched components | A complete matched 3500/94M display path combines 184826-01 with the correct rear I/O module, supported display, cables, 3500/22 TDI, rack, firmware, and software configuration. |
| Complete-system Display functions | System event lists, alarm event lists, module and channel data, alarm and OK status, and custom screens are functions of the complete matched 3500/94M path, not of bare 184826-01 alone. |
| Complete-system Power and environmental values | The 4.6 W maximum and stated environmental limits belong to the complete matched 3500/94M VGA Display Unit scope; do not present them as independently measured bare-184826-01 ratings. |
| Complete-system Approvals | Hazardous-area approval statements apply only to the complete matched configuration and selected approval option, not automatically to bare 184826-01. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
Bently Nevada 184826-01 is the 3500/94M Main module listed as an exact spare in Baker Hughes datasheet 122M3217 Rev. N.
Bently Nevada 184826-01 is not a rear I/O module; 184826-01 is the front VGA display main module for a configured 3500/94M path.
Bently Nevada 184826-01 is not a complete VGA display system because 184826-01 requires the matched rear I/O module, display, cables, rack, 3500/22 TDI, and configuration.
Bently Nevada 184826-01 occupies one full-height front slot in a compatible 3500 rack.
Bently Nevada 184826-01 measures 241.3 x 24.4 x 241.8 mm and weighs 0.73 kg (1.6 lb).
A complete matched 3500/94M path using Bently Nevada 184826-01 can display system and alarm events, module and channel data, status, and configured custom screens.
A configured 3500/94M path using Bently Nevada 184826-01 requires a compatible 3500/22 TDI module and the required firmware and software versions.
A hazardous-area approval cannot be assumed for bare Bently Nevada 184826-01 without the complete configured order option and applicable certification evidence for 184826-01.

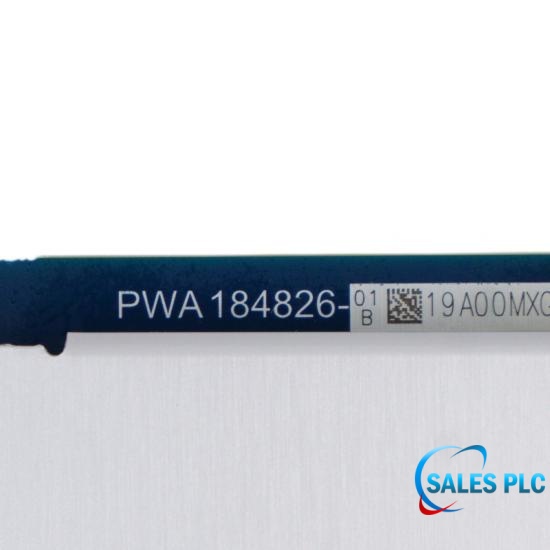

Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
