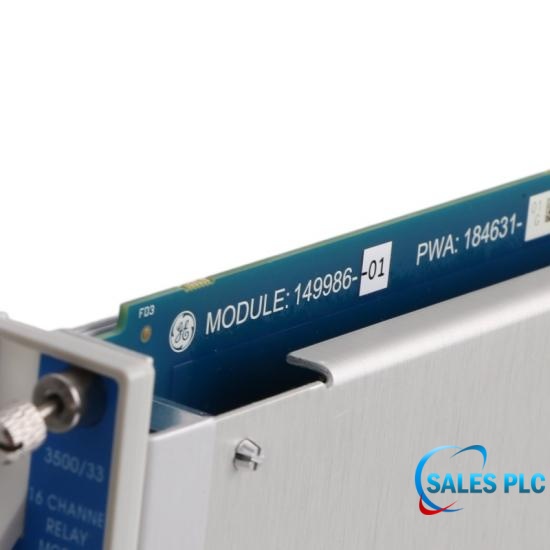

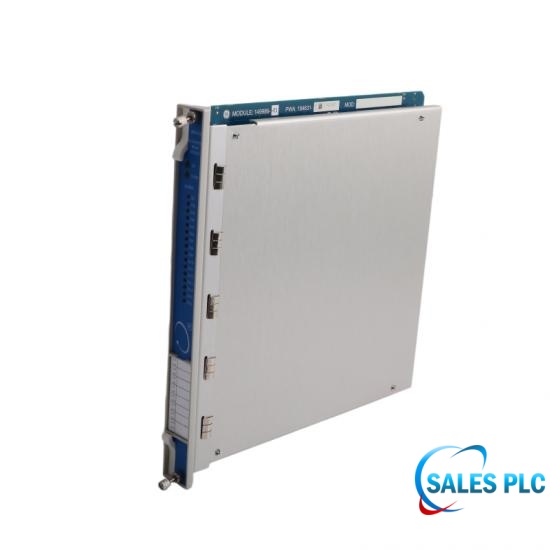

3500/33 Bently Nevada 16-Channel Relay Module Family
3500/33
3500/33 identifies the Bently Nevada full-height 16-Channel Relay Module model family. 3500/33 provides 16 independently programmable SPDT relay outputs; each relay includes Alarm Drive Logic that can use AND and OR voting logic with monitor statuses and measured variables from the 3500 rack. The official 3500/33-AA-BB ordering pattern offers standard, failsafe, low-current, and low-current failsafe output-module variants plus approval options. This record does not select an AA output-module variant or BB approval option and does not assign any exact control-module or output-module spare part number.
Scope note: 3500/33 does not select an I/O or output option, approval suffix, exact front-module spare, or exact rear-module spare. Content must remain at model/family level until an exact order code or nameplate is available.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Official model-family information only; no unlisted order variant or exact spare part number is assigned.
3500/33 is verified as the displayed model or manufacturer ordering-family identity in Baker Hughes / Bently Nevada document 162301 Rev. AC.
The manufacturer describes the 3500/33 as a full-height relay module with 16 programmable relay outputs and per-relay Alarm Drive Logic in a configured 3500 rack.
3500/33 does not select an I/O or output option, approval suffix, exact front-module spare, or exact rear-module spare. Content must remain at model/family level until an exact order code or nameplate is available.
| Manufacturer | Baker Hughes / Bently Nevada |
|---|---|
| Displayed model | 3500/33 |
| Official datasheet family | 3500/33 16-Channel Relay Module |
| Identity level | Model and ordering family only; no exact SKU assigned |
| Official ordering pattern | 3500/33-AA-BB |
| Selected I/O or output option | Not specified by the inventory record |
| Selected approval option | Not specified by the inventory record |
| Relay-output count | 16 |
| Relay type | Single-pole double-throw (SPDT) |
| Logic programming | Each output can be independently programmed for voting logic using AND and OR relationships |
| Alarm Drive inputs | Alert, danger, Not-OK, and measured variables from compatible monitor channels |
| Typical power consumption | 5.8 W |
| Relay sealing | Epoxy-sealed |
| Arc suppressor | 250 Vrms, installed as standard |
| Relay operation groups | Four groups of four channels selectable for normally de-energized or normally energized operation |
| Available output categories | Standard, failsafe, low-current, or low-current failsafe; no category selected by this record |
| Contact-rating boundary | Contact ratings and permitted voltage depend on the selected output and approval option |
| Rack space | One full-height front slot plus one compatible full-height rear output-module slot |
| Main-module dimensions | 241 x 24.4 x 242 mm |
| Main-module weight | 0.7 kg |
| Official source | 162301 Rev. AC |
| Configured-system Required integration | 3500/33 requires the selected compatible rear output module, a compatible 3500 rack to the right of the TDI, configured Alarm Drive Logic, and field wiring suitable for the selected contact class. |
| Configured-system Performance scope | 3500/33 contact current, voltage, power, failsafe behavior, and hazardous-area limits depend on the selected AA output-module and BB approval options. |
| Configured-system Functional boundary | 3500/33 does not identify an exact front control-module spare, rear output-module variant, contact class, approval suffix, field wiring, or complete relay installation. |
| Configured-system Approval boundary | 3500/33 has no selected approval suffix in this record. Any approval claim requires the exact ordered variant, applicable certificate, installation drawing, and installed configuration. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
3500/33 is the Bently Nevada full-height 16-Channel Relay Module model family for a configured 3500 rack.
3500/33 provides 16 independently programmable relay outputs.
3500/33 uses SPDT relays, while the exact contact class for 3500/33 depends on the selected AA output-module option.
3500/33 can use programmed Alarm Drive voting logic with AND and OR relationships for each 3500/33 relay output.
3500/33 organizes relay operation into four groups of four channels, with each 3500/33 group selectable for normally de-energized or normally energized operation.
3500/33 has a manufacturer-published typical power consumption of 5.8 W.
3500/33 does not specify the AA output-module option or BB approval option in the official 3500/33-AA-BB ordering pattern.
3500/33 does not identify an exact control-module or output-module spare part number; 3500/33 is published here only at model and family level.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
