3500/45

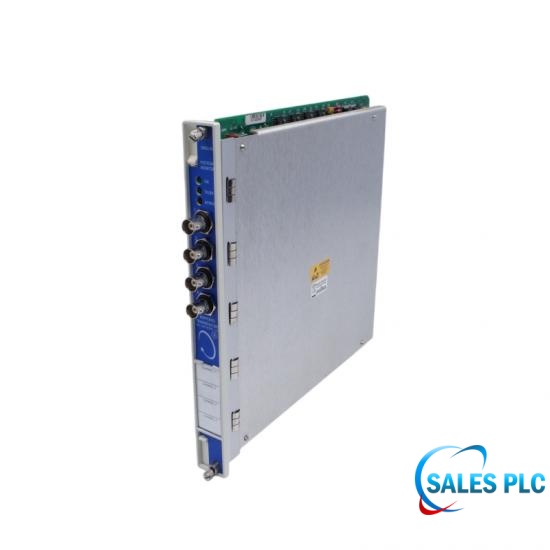

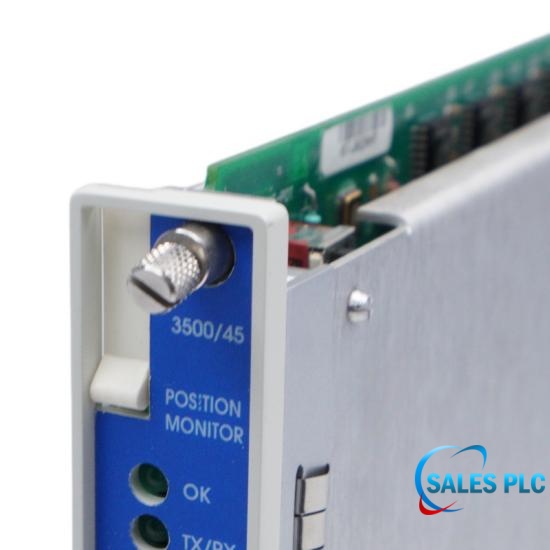

3500/45 identifies the Bently Nevada four-channel Position Monitor model family. 3500/45 accepts inputs from proximity transducers, rotary position transducers, DC or AC LVDTs, and rotary potentiometers when the corresponding I/O module is selected. Configurable functions include axial position, differential expansion, case expansion, and valve position. This record does not select the AA I/O-module option or BB approval option in 3500/45-AA-BB and does not assign main-monitor spare part number 176449-04 or any other exact SKU.
Scope note: 3500/45 does not select an I/O or output option, approval suffix, exact front-module spare, or exact rear-module spare. Content must remain at model/family level until an exact order code or nameplate is available.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Official model-family information only; no unlisted order variant or exact spare part number is assigned.
3500/45 is verified as the displayed model or manufacturer ordering-family identity in Baker Hughes / Bently Nevada document 141537 Rev. T.
The manufacturer describes the 3500/45 as a four-channel position monitor that conditions compatible position-transducer inputs and compares configured measurements with user-programmable alarms.
3500/45 does not select an I/O or output option, approval suffix, exact front-module spare, or exact rear-module spare. Content must remain at model/family level until an exact order code or nameplate is available.
| Manufacturer | Baker Hughes / Bently Nevada |
|---|---|
| Displayed model | 3500/45 |
| Official datasheet family | 3500/45 Position Monitor |
| Identity level | Model and ordering family only; no exact SKU assigned |
| Official ordering pattern | 3500/45-AA-BB |
| Selected I/O or output option | Not specified by the inventory record |
| Selected approval option | Not specified by the inventory record |
| Channel count | 4 |
| Input count | 1 to 4 signal inputs |
| Compatible input families | Proximity transducers, RPTs, DC LVDTs, AC LVDTs, and rotary potentiometers, with the matching I/O |
| Published functions | Axial position, multiple differential-expansion methods, case expansion, and valve position |
| Channel programming | Channels are programmed in pairs and can perform up to two selected functions |
| Typical power consumption | 7.7 W with Position I/O, 8.5 W with AC LVDT I/O, or 5.6 W with Rotary Potentiometer I/O |
| Available I/O categories | Internal or external Position I/O and internal or external AC LVDT I/O; no category selected by this record |
| External-termination boundary | Compatible termination blocks and cables are ordered separately when external I/O is selected |
| Rack space | One full-height front slot plus one compatible full-height rear I/O slot |
| Main-board dimensions | 241.3 x 24.4 x 241.8 mm |
| Main-board weight | 0.91 kg |
| Official source | 141537 Rev. T |
| Configured-system Required integration | 3500/45 requires the I/O module that matches the chosen transducer type, a compatible 3500 rack, the selected transducers and termination hardware, and software configuration. |
| Configured-system Performance scope | 3500/45 input impedance, sensitivity, power, measurement range, and field termination depend on the selected input and I/O type; no one option is inferred from the family-only record. |
| Configured-system Functional boundary | 3500/45 does not identify the exact main-board spare, rear I/O module, sensor selection, approval suffix, or complete installed measurement chain. |
| Configured-system Approval boundary | 3500/45 has no selected approval suffix in this record. Any approval claim requires the exact ordered variant, applicable certificate, installation drawing, and installed configuration. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
3500/45 is the Bently Nevada four-channel Position Monitor model family for configured machinery-position measurements.
3500/45 provides four channels, with 3500/45 channels programmed in pairs for selected measurement functions.
3500/45 can accept proximity transducers, rotary position transducers, DC LVDTs, AC LVDTs, or rotary potentiometers when 3500/45 uses the matching I/O module.
3500/45 can be configured for axial position, differential expansion, case expansion, or valve position measurements.
3500/45 power is I/O-dependent: 7.7 W typical with Position I/O, 8.5 W with AC LVDT I/O, or 5.6 W with Rotary Potentiometer I/O.
3500/45 does not select an AA I/O option in this record, so 3500/45 must not be presented as a specific internal, external, or AC LVDT I/O configuration.
3500/45 does not select a BB approval suffix in this record, so a hazardous-area approval cannot be inferred for 3500/45.
3500/45 does not identify an exact spare part number; 3500/45 is published here only at model and family level.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
