3500/64M Bently Nevada Dynamic Pressure Monitor Family
3500/64M
3500/64M identifies the Bently Nevada single-slot, four-channel Dynamic Pressure Monitor model family. 3500/64M accepts one to four compatible high-temperature pressure-transducer signals and provides one bandpass dynamic-pressure measured variable per channel, configured alarm processing, filtering, and individual recorder outputs. The official order-code root is 3500/64-AA-BB. This record does not select the AA I/O-module option or BB approval option and does not assign main-monitor spare part number 176449-05 or any other exact SKU.
Scope note: 3500/64M does not select an I/O or output option, approval suffix, exact front-module spare, or exact rear-module spare. Content must remain at model/family level until an exact order code or nameplate is available.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Official model-family information only; no unlisted order variant or exact spare part number is assigned.
3500/64M is verified as the displayed model or manufacturer ordering-family identity in Baker Hughes / Bently Nevada document 141536 Rev. T.

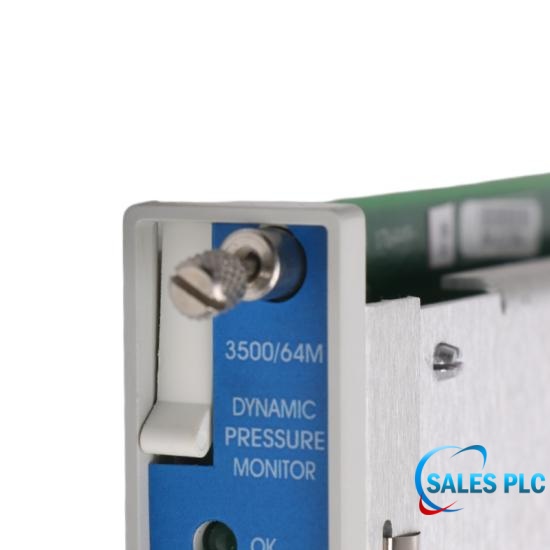

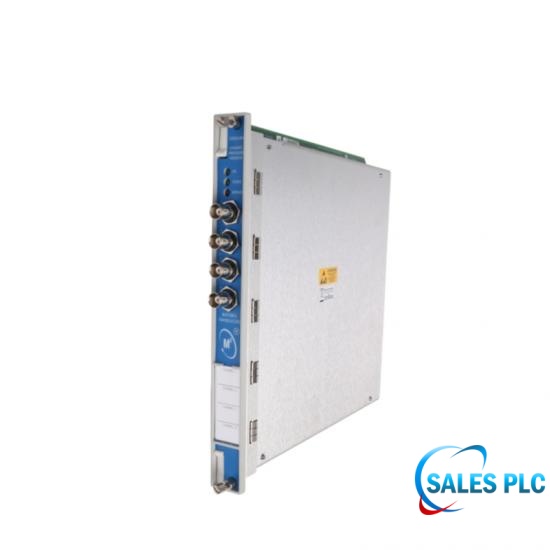

The manufacturer describes the 3500/64M as a single-slot, four-channel monitor for bandpass dynamic-pressure measurement from compatible high-temperature pressure transducers.
3500/64M does not select an I/O or output option, approval suffix, exact front-module spare, or exact rear-module spare. Content must remain at model/family level until an exact order code or nameplate is available.
| Manufacturer | Baker Hughes / Bently Nevada |
|---|---|
| Displayed model | 3500/64M |
| Official datasheet family | 3500/64M Dynamic Pressure Monitor |
| Identity level | Model and ordering family only; no exact SKU assigned |
| Official ordering pattern | 3500/64-AA-BB |
| Selected I/O or output option | Not specified by the inventory record |
| Selected approval option | Not specified by the inventory record |
| Monitor format | Single-slot, four-channel monitor |
| Input count | 1 to 4 pressure-transducer signals |
| Input transducers | Compatible high-temperature pressure transducers |
| Published sensitivity | 100 mV/psi (1.45 mV/mBar) |
| 3-wire input impedance | 10 kohm |
| 2-wire input impedance | 1.5 Mohm to 3.5 Mohm typical |
| Measured variable | One bandpass dynamic-pressure value per channel |
| Recorder outputs | Individual +4 to +20 mA values proportional to configured full scale |
| Filter configuration | Configurable bandpass corner frequencies with an additional 50 or 60 Hz notch-filter setting |
| Available I/O categories | Internal or external termination; no category selected by this record |
| Main-board dimensions | 241.3 x 24.4 x 241.8 mm |
| Main-board weight | 0.82 kg |
| Official source | 141536 Rev. T |
| Configured-system Required integration | 3500/64M requires a compatible pressure transducer, the selected rear I/O module and termination arrangement, a compatible 3500 rack, and configured filter and alarm settings. |
| Configured-system Performance scope | 3500/64M input wiring, termination hardware, filters, full scale, recorder values, and approvals depend on the selected AA and BB options and the configured transducer chain. |
| Configured-system Functional boundary | 3500/64M does not identify an exact front-board spare, rear I/O module, two-wire or three-wire installation, approval suffix, or complete pressure-measurement chain. |
| Configured-system Approval boundary | 3500/64M has no selected approval suffix in this record. Any approval claim requires the exact ordered variant, applicable certificate, installation drawing, and installed configuration. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
3500/64M is the Bently Nevada single-slot, four-channel Dynamic Pressure Monitor model family.
3500/64M provides four dynamic-pressure channels for one to four compatible pressure-transducer signals.
3500/64M accepts compatible high-temperature pressure transducers through the selected 3500/64M I/O and wiring arrangement.
3500/64M provides one bandpass dynamic-pressure measured variable per configured channel.
3500/64M provides individual +4 to +20 mA recorder values proportional to the configured full scale of each 3500/64M channel.
3500/64M does not select a two-wire or three-wire input in this record; the 3500/64M input and I/O arrangement must be confirmed from the ordered configuration.
3500/64M does not specify the AA I/O-module option or BB approval option in the official 3500/64-AA-BB ordering pattern.
3500/64M does not identify an exact spare part number; 3500/64M is published here only at model and family level.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
