PM 802F
AC 800F Base Unit · 3BDH000002R1 · 4 MB battery-buffered RAM · modular controller platform
Lifecycle note: PM 802F is legacy Freelance hardware. Confirm the complete installed configuration before replacement or migration.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786AC 800F Base Unit · Freelance AC 800F
ABB PM 802F, order code 3BDH000002R1, is a Freelance AC 800F base unit with 4 MB battery-buffered RAM. It provides the processor and modular expansion platform for installed AC 800F control systems.
ABB documentation lists four fieldbus-module slots and two Ethernet communication-module slots. The unit is supplied without an operating system; the operating system is installed with the Freelance software.
For replacement work, verify the complete part number, hardware revision, power-supply combination, communication modules, operating-system level and application backup before ordering.
| Manufacturer | ABB |
|---|---|
| Model / order code | PM 802F / 3BDH000002R1 |
| Product family | Freelance AC 800F |
| Product type | Base unit, 4 MB, battery-buffered |
| Processor | Superscalar RISC architecture, up to 150 MIPS |
| Processor cache | 16 kB internal cache |
| Main memory | 4 MB static RAM with error detection and correction |
| Flash EPROM | 4 MB, 32-bit word width |
| Serial EEPROM | 16 kbit |
| Fieldbus expansion | 4 slots for fieldbus modules |
| Ethernet expansion | 2 communication-module slots; 32-bit data bus; 10 Mbit/s |
| Power-supply configurations | SA 801F / SA 811F: 115–230 V AC, 50–60 Hz; SD 802F / SD 812F: 24 V DC |
| Dimensions | 239 × 152 × 164 mm |
| Operating system | Not preinstalled; installed with Freelance software |
PM 802F is legacy Freelance hardware. Confirm the complete installed configuration before replacement or migration.

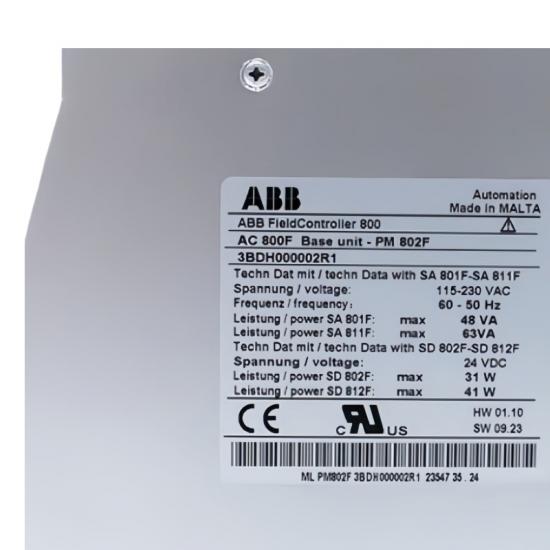

Check the nameplate for PM 802F and the complete order code 3BDH000002R1. Also record the hardware revision, installed power supply and communication modules before requesting a replacement.

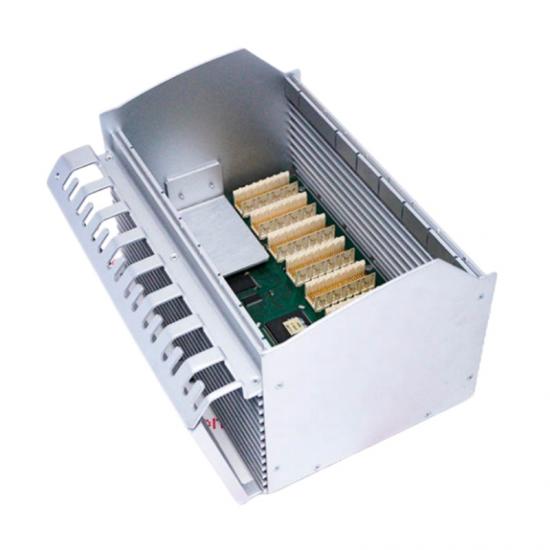

PM 802F is a base unit for the ABB Freelance AC 800F controller family. It provides the processor, memory and modular slots used to build an AC 800F control station.
ABB lists 4 MB static RAM with battery buffering and 4 MB Flash EPROM with 32-bit word width. A 16 kbit serial EEPROM is also listed.
The base unit provides four slots for fieldbus modules and two slots for Ethernet communication modules. The Ethernet module interface uses a 32-bit data bus and supports 10 Mbit/s communication.
ABB documentation and the product nameplate identify SA 801F or SA 811F for 115–230 V AC systems and SD 802F or SD 812F for 24 V DC systems. Verify the installed combination before ordering.
ABB states that the base unit is supplied without an operating system. The operating system is installed during Freelance software installation, so the required software level and application backup must be confirmed.
Do not assume direct interchangeability. PM 803F has a different memory configuration and may require a specific Freelance software level. Verify hardware, software and application compatibility.
This listing is offered as New with a one-year warranty. Confirm the exact unit, hardware revision and quotation terms before purchase.
The business listing uses In Stock status with stock location Xiamen, China. Courier, packing method and dispatch timing should be confirmed in the quotation.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on the ABB Freelance DCS Product Catalog. Final suitability must be verified against the exact installed unit and official documentation.
