SD832
24V 5A Power Supply · 3BSC610065R1 · Control and I/O Power Supplies
Lifecycle note: Keep the continuous load within the rated 5 A output and retain protective earth, mounting clearances and the approved redundant-supply arrangement.
ItemNO:
3BSC610065R1Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etc24V 5A Power Supply · Control and I/O Power Supplies

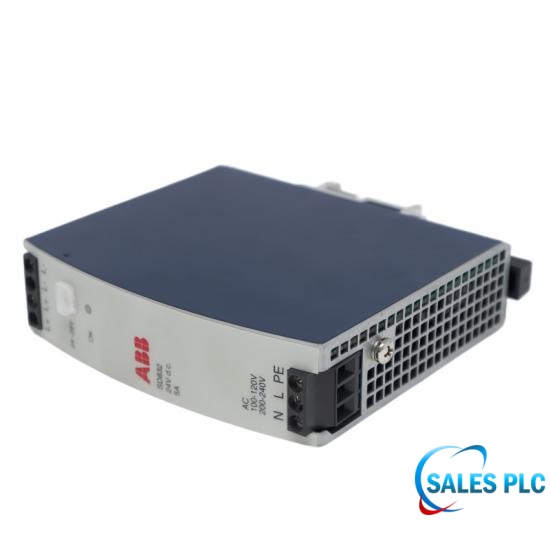

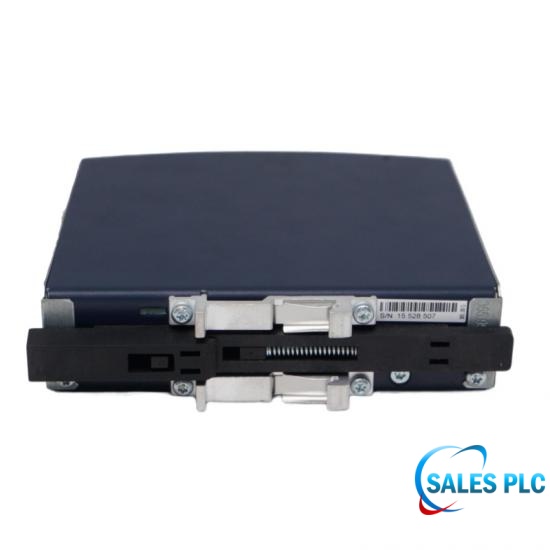

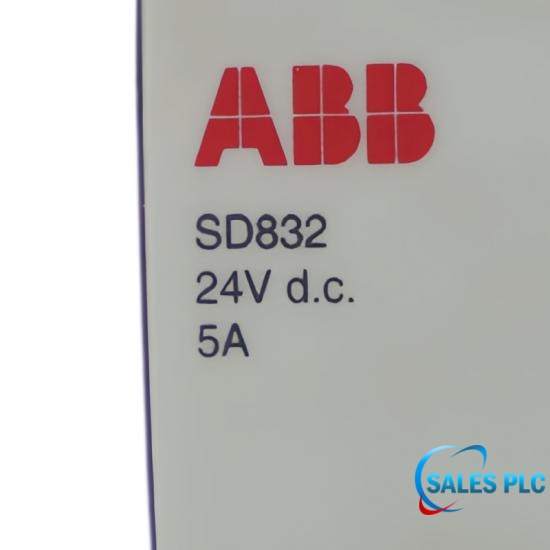

ABB SD832 is an ABB DIN-rail power supply, order 3BSC610065R1, rated at 24 V DC, 5 A and 120 W. Its AC input automatically selects between the nominal 100–120 V and 200–240 V ranges.
The SD83x family provides protective separation for SELV or PELV applications. ABB lists overcurrent and output-overvoltage protection, a soft-start function, and SS823 or SS832 diode voters for redundant applications. The SD832 hardware-selector dimensions are 32 × 117 × 124 mm (width × depth × height).
Plan the load and cabinet heat dissipation before installation. Confirm protective-earth continuity, the actual mains range and the voting circuit if redundancy is used. During commissioning, measure the output at the load and record the supply identity, installation orientation and operating condition.
| Manufacturer | ABB |
|---|---|
| Model / order number | SD832 / 3BSC610065R1 |
| Product function | DIN-rail power supply |
| Rated output voltage | 24 V DC |
| Rated output current | 5 A |
| Rated output power | 120 W |
| Nominal AC input | 100–120 V / 200–240 V; auto-select |
| Allowed mains variation | ±10% for each nominal input range |
| Mains frequency | 50–60 Hz ±6% |
| Efficiency | 89.4 / 90.2% as listed by ABB |
| Output ripple, peak to peak | Less than 50 mV |
| Maximum ambient temperature | 55 °C |
| Protection / atmosphere | IP20 / ISA-S71.04 G2 |
| Dimensions, W × D × H | 32 × 117 × 124 mm |
Keep the continuous load within the rated 5 A output and retain protective earth, mounting clearances and the approved redundant-supply arrangement.
ABB specifies auto-select input for the 100–120 V and 200–240 V nominal AC ranges. Verify the actual supply lies within the permitted range before energizing.
Its rated output is 5 A, or 120 W at 24 V. Include all connected loads and the applicable cabinet conditions in the continuous-load budget.
No. ABB qualifies the 6 A maximum by ambient temperature below 45 °C. The nominal product rating remains 5 A; preserve the conditions attached to any higher-current use.
The hardware selector identifies SS823 or SS832 diode voting units. Check the selected voter rating and the complete power-distribution design before commissioning redundancy.
It is the stated peak-to-peak output ripple. Use a suitable measurement method and the documented operating conditions when comparing a field measurement with that value.
ABB lists mounting spacing of 15 mm in width and 40 mm in height. Apply the specified mounting arrangement and avoid blocking the cooling space with wiring or adjacent equipment.
ABB accepts the secondary circuitry for SELV and PELV applications. The cabinet wiring, protective-earth arrangement and connected circuits must preserve the requirements of the chosen system.
No. ABB identifies SD832 as G2 compliant. Review the actual corrosive atmosphere requirement rather than assuming the environmental rating of another power-supply version.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: SD832 / 3BSC610065R1 — Sales PLC Cover & ABB Documentation. File size is below 1 MB; verify the exact installed hardware and configuration before use.
