9753-110
Field Termination · Analog Input Interface · DIN-Rail Mounting
Lifecycle note: Triconex 9753-110 is a 32-point differential TMR external termination panel. Confirm signal range, shunt resistors, grounding, termination and configured scaling before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786External Termination Panel · Tricon Safety Systems

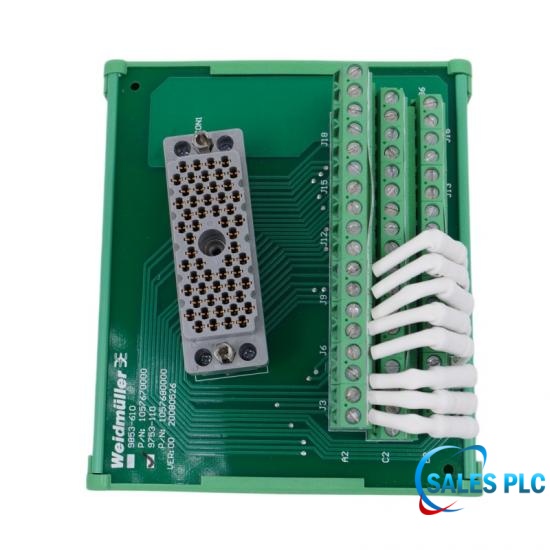

Triconex 9753-110 is a External Termination Panel engineered for use within Tricon Safety Systems. It supports installed control, safety and maintenance strategies where the exact module or termination identity must remain traceable to the approved system configuration.
Key technical identifiers for engineering review include Panel type: Basic termination panel; Pulse input capacity: 8 differential inputs; Pulse totalizer capacity: 16 inputs; Pulse input terminals: IN+ / IN-. These values should be checked against the installed hardware, field interface, project drawings and the current site asset record before replacement. From a system-integrator perspective, compatibility assessment should cover the complete model and hardware revision, chassis or termination arrangement, connector and channel mapping, field voltage or signal requirements, firmware or system release, and the applicable TriStation configuration.
For commissioning and maintenance, follow the approved isolation, inspection and test procedure. Record point checks, diagnostics, wiring condition and observed system response so the replacement decision can be traced to the installed loop or subsystem. For MRO procurement, provide a clear nameplate photo, required quantity, destination, urgency and any revision restrictions. Commercial confirmation should distinguish new, surplus and refurbished condition and should reference the offered serial or nameplate identity.
| Manufacturer | Triconex / Schneider Electric |
|---|---|

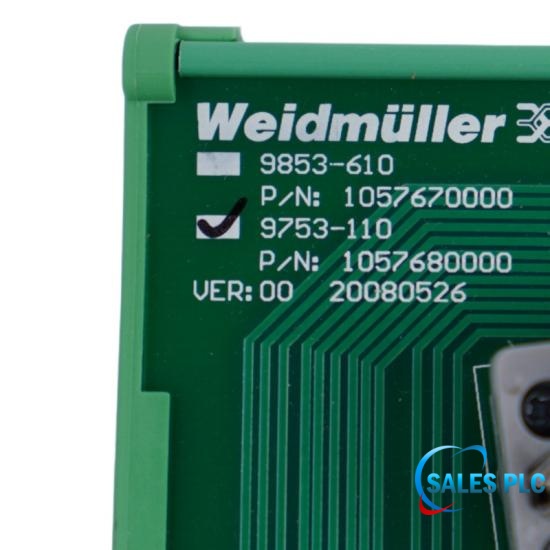

| Model | 9753-110 |
| Panel type | Basic termination panel |
| Pulse input capacity | 8 differential inputs |
| Pulse totalizer capacity | 16 inputs |
| Pulse input terminals | IN+ / IN- |
| Compatible pulse input modules | 3510 / 3511 |
| Compatible pulse totalizer module | 3515 |
| 3515 module capacity | 32 points |
| Panels required per 3515 module | 2 |
| Maximum interface cable length | 50 ft (15 m) |
| Cable for runs over 50 ft | Individually shielded twisted pair |
| Unused pulse-input points | Short IN+ and IN- together |
| 3515 sensor output | Push-pull preferred; high-side or low-side solid-state supported |
| Mechanical relay / switch contacts | Not permitted with 3515 |
| Shield connection | Functional earth (quiet ground) recommended |
| Supported system families | Tricon v9-v10 / Tricon 11.x |
Tricon is a legacy Triconex automation platform. Confirm the complete installed configuration before replacement or migration.
Record and approve 8 differential pulse inputs, 16 pulse-totalizer inputs, IN+/IN- terminals and the required two-panel arrangement for a 3515. The baseline must match the installed safety application before hardware is moved.
The integration record must cover shield grounding, unused-point shorting, cable length and the connected 3510, 3511 or 3515 module. Include drawings and point or port assignments with the change package.

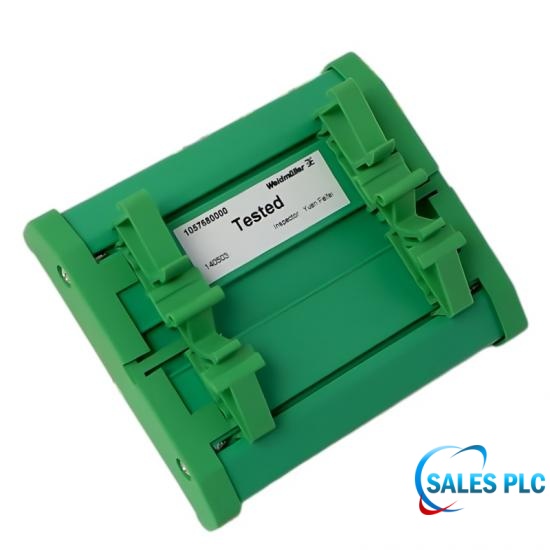

Supplier inspection should include terminal integrity, connector keying, point-to-point continuity and label sets 1-16 or 17-32. Results must be traceable to the offered serial or nameplate identity.
MRO should provide 9753-110 nameplate photos plus installed module, sensor output type, cable length and whether the duty is pulse input or pulse totalizer. This prevents a visually similar but unsuitable spare from being selected.
Under the approved site procedure, inject traceable pulses, verify frequency counts and confirm every unused pair is shorted. Record observed system indications before returning the loop or subsystem to service.
Check for unstable counts, cross-talk on long runs, open unused points or incorrect quiet-ground practice. Compare field measurements with module or panel indications before condemning the spare.
Engineering must account for one panel for an 8-point PI application versus two panels for a 32-point 3515 application. Similar connectors or base numbers alone do not establish interchangeability.
The final dossier should record pulse amplitude, frequency, channel count, connector condition and functional-earth continuity. Add revision and nameplate traceability so procurement and engineering review the same item.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
