AF100 Communication Interface | CI810V2 3BSE013224R1 | ABB

Technical Specifications

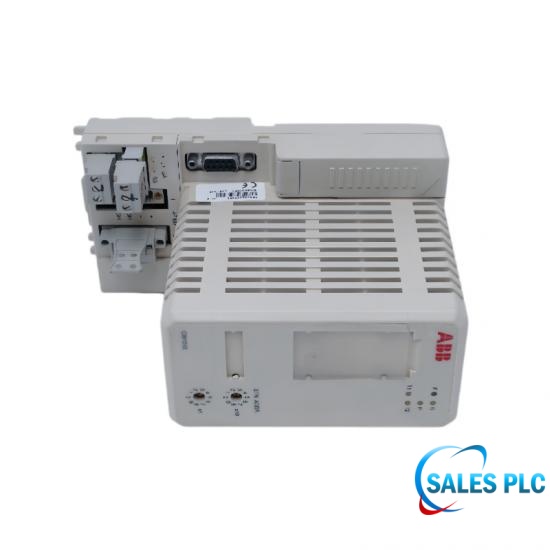

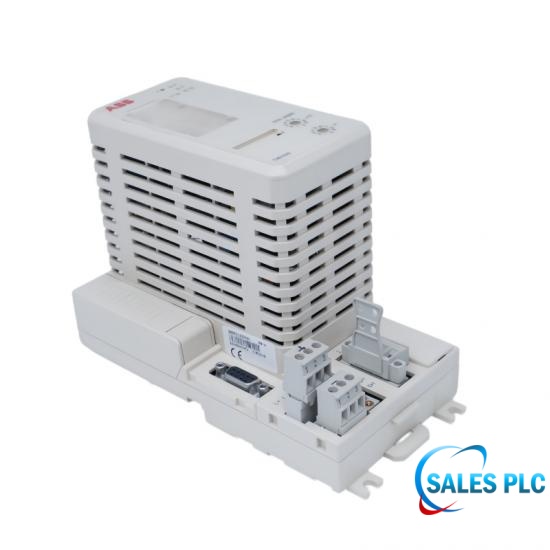

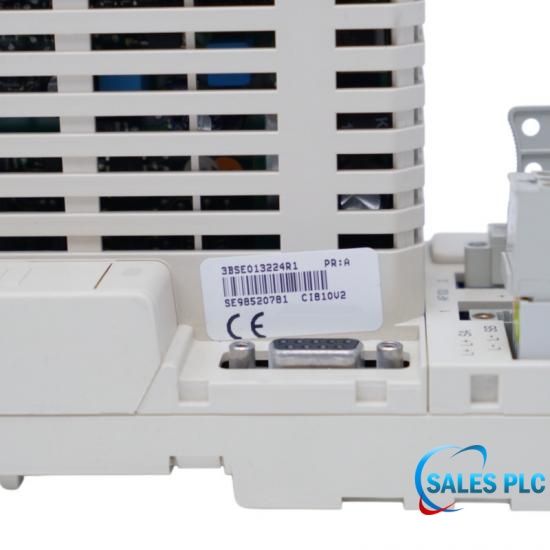

The CI810V2 3BSE013224R1 is a communication interface module from ABB's S800 I/O product line. It functions as an AF100 fieldbus communication interface, enabling data exchange between S800 I/O stations and ABB control systems. The module is equipped with two AF100 modems and includes 0.5 MB FPROM and 256 KB SRAM memory, operating at 16 MHz processor speed. It is used in ABB System 800xA and Compact Product Suite control platforms, compatible with S800 I/O versions 4.1, 5.0, and 5.1. The module requires a power connector (3BSC840088R4) and a fuse (3BSC770001R47) for installation.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Set Station Address: Configure the rotary/DIP hardware switches on the module to the designated AF100 station number before mounting.
Verify Keying Codes: Confirm that the mechanical keying code on the baseplate/Terminal Unit (MTU) aligns exactly with the CI810V2 requirements to prevent damage.
Set Cluster Address: Adjust the Cluster Address switch on the ModuleBus interface if extended clusters are utilized.

Field Engineering Considerations

Dual-Source Input: Power the module with a nominal 24V DC supply through its dedicated power connector. Always utilize dual independent 24V DC sources via a diode voter (e.g., ABB SD821/SD822 power setups) to maintain uptime during power grid failures.
Modulebus Limitations: The internal Modulebus can drive a maximum of 12 standard S800 I/O modules directly. If your field footprint expands past this local cluster, you must implement optical Modulebus modems (like the TB820V2) to safely branch into sub-clusters.
Electrical Isolation: Ensure all associated analog fields utilize proper single-ended or isolated I/O modules (such as AI810 or AI825) based on your ground loop risks to prevent electrical noise from disrupting the FCI.

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What is its core function?
A: It provides active communication and data exchange between field instrumentation and the primary ABB System 800xA / Advant OCS control network.

A: Yes. It includes two built-in AF100 modems to support dual cable media redundancy.

A: It operates at 16MHz and features 0.5MB FPROM and 256KB SRAM memory.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
