AO845A
HART Analog Output Module · 3BSE045584R1 · 8 channels · Single / redundant · 4–20 mA · 12-bit
ABB S800 I/O / System 800xA system maintenance
Exact AO845A identification by model and order code
Order code 3BSE045584R1
Installed system, revision, wiring and application
Confirm the complete installed configuration before selecting a spare or replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786HART Analog Output Module · S800 I/O / System 800xA

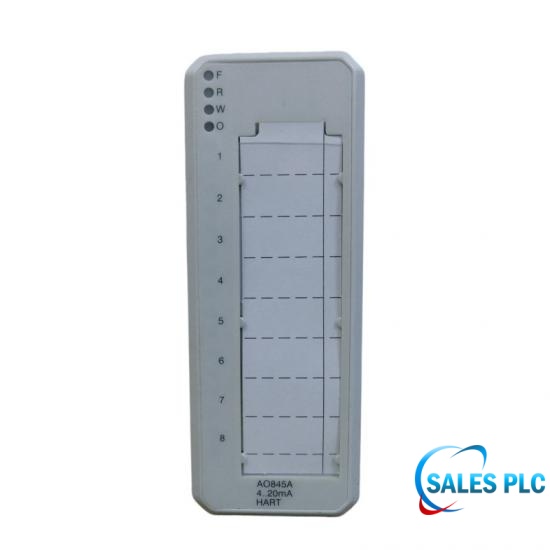

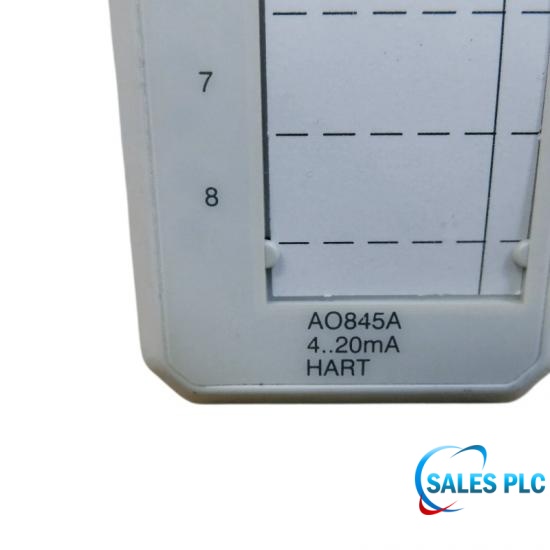

ABB AO845A, order code 3BSE045584R1, is an 8-channel HART-capable analog-output module for ABB S800 I/O and System 800xA. The ABB technical information referenced on this page supports the product characteristics shown in the technical-data section. This model is relevant to maintenance and replacement work where the complete order code, installed ABB system and actual I/O application have been verified.
For dependable sourcing, compare the installed unit against the complete AO845A order code 3BSE045584R1, including hardware revision, connected terminal equipment, field wiring, system release and project engineering. Similar ABB model names or related components must not be treated as interchangeable without this review. A clear nameplate photo and required quantity help confirm the offered configuration before order placement.
| Manufacturer | ABB |
|---|---|
| Model / order code | AO845A / 3BSE045584R1 |
| Product family | S800 I/O / System 800xA |
| Output channels | 8 |
| Configuration | Single or redundant |
| Output signal | 4–20 mA |
| HART | HART capable |
| D/A resolution | 12-bit |
| Output accuracy | 0.1 % |
| Maximum load | 750 Ω |
| Product type | Analog output S/R HART module |
| Loop-supervised DI function | Supported |
| Diagnostics | Advanced on-board diagnostics |
| Rated isolation | 50 V |
| Module termination units | TU810, TU812, TU814, TU830, TU833, TU842, TU843 or TU852 |
Confirm the complete installed configuration before replacement, retrofit or maintenance work.

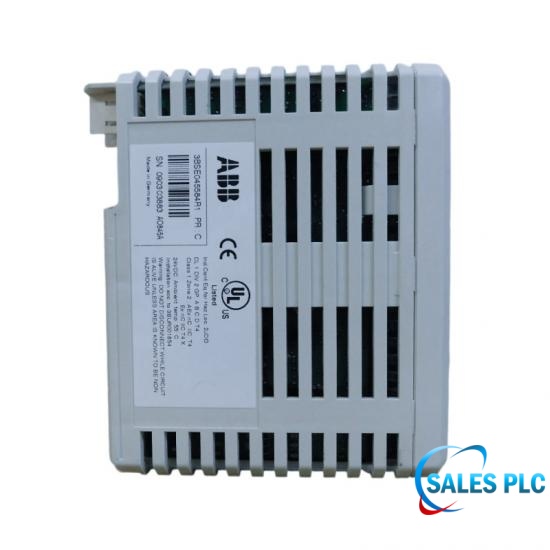

Check the product nameplate for the AO845A model and complete 3BSE045584R1 order code. Compare the hardware revision, installed system, terminal arrangement and signal or application requirements before ordering. A clear nameplate photo should be provided for quotation review.
ABB documentation identifies AO845A as an 8-channel HART-capable analog-output module for ABB S800 I/O and System 800xA. Use the product only in the verified ABB system configuration and with the confirmed I/O and engineering requirements.
The official ABB information used on this page identifies 8 HART-capable 4–20 mA output channels in single or redundant configurations with 12-bit conversion, 0.1 % output accuracy and 750 Ω maximum load. Confirm the complete order code and installed hardware before using these values for a replacement decision.
No. Similar model names do not establish direct interchangeability. Compare the complete order code, hardware revision, signal requirements, terminal unit or field wiring, system release and application engineering before describing any unit as a direct replacement.
ABB AO845A is intended for maintenance, replacement and system-support work in the verified ABB S800 I/O / System 800xA environment. The actual application depends on the installed control architecture, signal configuration, field devices and project engineering.
Install AO845A only in the ABB S800 I/O / System 800xA configuration identified for the installed unit. Use the official ABB product and system documentation for the correct module location, terminal arrangement, wiring, shielding, earthing and commissioning checks; qualified personnel should work with relevant circuits isolated.
This product page is presented with an In Stock procurement status. Confirm required quantity, condition, complete order code and dispatch requirement before quotation so the offered unit can be verified against the order.
The procurement status for this page states Original New with One Year Warranty. The quotation should confirm the offered condition, complete order code and applicable warranty terms before order placement.
The unit should be inspected and protected against moisture, electrostatic discharge and impact before shipment. Packaging, dispatch date, courier and use of a customer shipping account are confirmed according to the actual order and destination.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB System 800xA Product Catalog. Final suitability must be verified against the exact installed unit and official documentation.
