SD822
Power supply converter · 3BSC610038R1 · 115/230 V AC input · 24 V DC, 5 A output
Lifecycle note: Confirm mains selection, wiring, protective devices, DIN-rail spacing, 24 V DC load and redundancy arrangement before replacement or commissioning.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 1802077678624 V DC 5 A Power Supply Converter · AC 800M / System 800xA

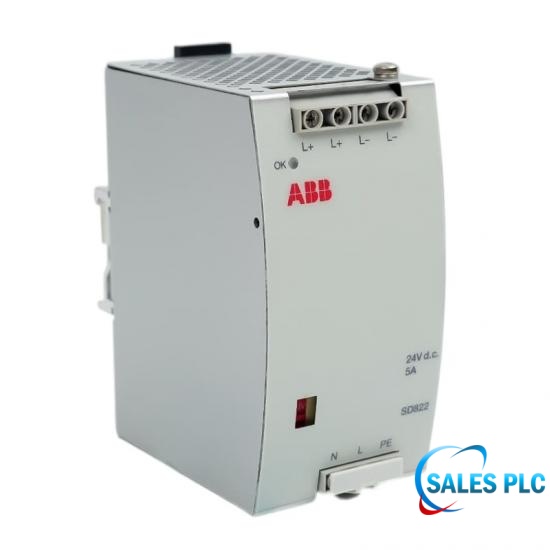

ABB SD822, article number 3BSC610038R1, is a power supply converter documented for AC 800M controller hardware. ABB specifies a nominal 115/230 V AC input and a rated 24 V DC, 5 A output.
The rated output power is 120 W. ABB lists 90% typical efficiency, more than 20 ms output-voltage hold-up during a mains blackout and DIN-rail mounting dimensions of 65 × 125 × 110 mm.
For replacement work, verify the complete article number, mains voltage selection, protective devices, 24 V DC load, DIN-rail spacing, wiring and any redundant power arrangement.
| Manufacturer | ABB |
|---|---|
| Model / article number | SD822 / 3BSC610038R1 |
| Product family | AC 800M / System 800xA power components |
| Product type | Power supply converter |
| Nominal input voltage | 115/230 V AC |
| Mains voltage variation | 85–110% |
| Rated output voltage | 24 V DC |
| Rated output current | 5 A |
| Rated output power | 120 W |
| Rated input power at full load | 280 VA / 135 W |
| Efficiency | 90% typical |
| Primary peak current at power-on | 15 A |
| Heat dissipation | 13.3 W |
| Output hold-up time | >20 ms |
| Dimensions | 65 × 125 × 110 mm (W × H × D) |
| DIN-rail spacing | 15 mm along the rail; 25 mm vertically |
Confirm mains selection, wiring, protective devices, DIN-rail spacing, 24 V DC load and redundancy arrangement before replacement or commissioning.

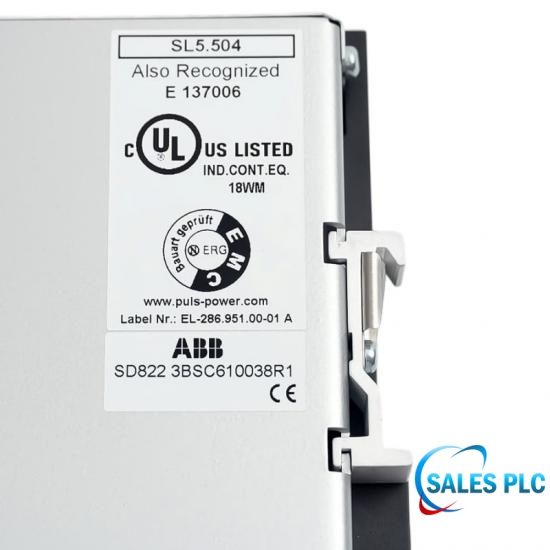

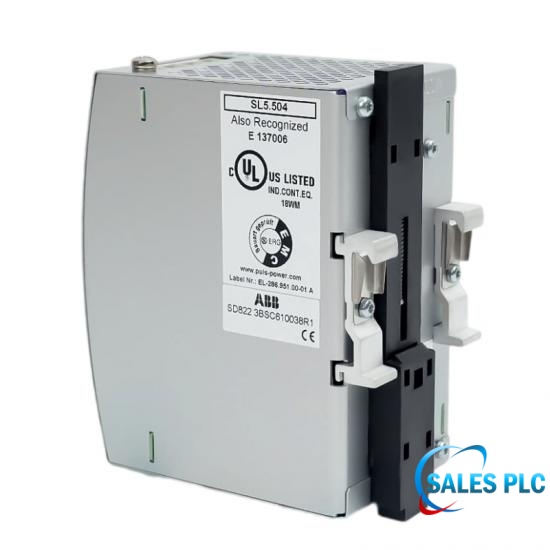

Check the power-supply label for SD822 and the complete ABB article number 3BSC610038R1. Also record the input selection, output wiring, cabinet position and connected load.
ABB specifies a nominal 115/230 V AC input with a mains-voltage range of 85–110%.
ABB specifies a rated output of 24 V DC at 5 A, corresponding to 120 W.
ABB lists 90% typical efficiency and 13.3 W heat dissipation for SD822.
ABB specifies more than 20 ms secondary-voltage hold-up time at mains blackout.
ABB lists a width of 65 mm with height and depth of 125 × 110 mm. Required mounting space must also include ventilation spacing.
Do not assume interchangeability. The three supplies have different output-current, power and width ratings; verify load, wiring, protection, space and redundancy design.
The business status for this listing is New with a one-year warranty. Final condition, quantity and dispatch date are confirmed in the quotation.
The business stock location is Xiamen, China. Antistatic protection, packing method, courier and dispatch date are confirmed for the actual destination and quantity.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB AC 800M 5.1 Controller Hardware Product Guide. Final suitability must be verified against the exact installed unit and official documentation.
