Communication Gateway Module | 3500/90 | Bently Nevada

Technical Specifications

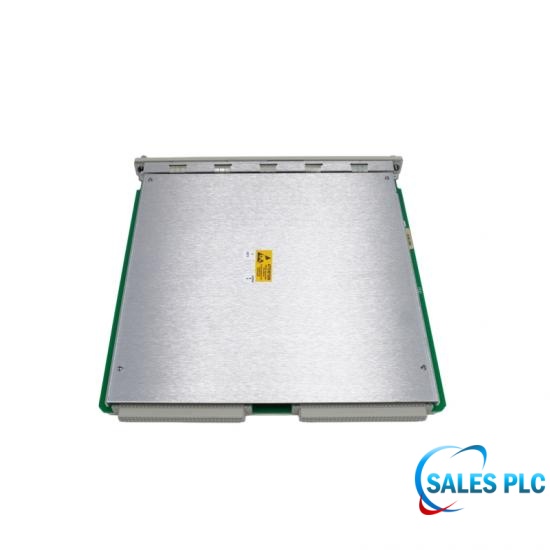

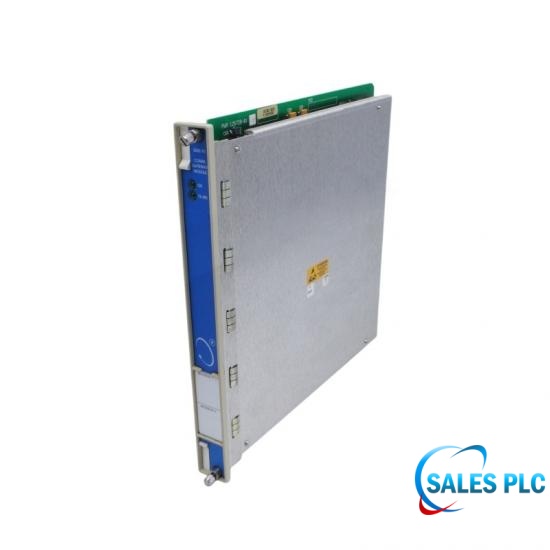

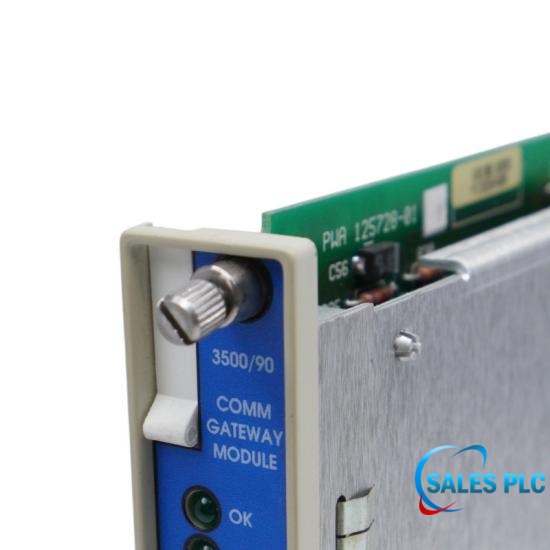

3500/90 is a Communication Gateway Module developed by Bently Nevada. It is a part of 3500 Bently Nevada Series. The System provides continuous, online monitoring that is appropriate for machinery protection and asset condition monitoring applications. It is flexible system in a traditional rack-based design, with numerous features and benefitoaot foundi'n other systems.

Features

The Communication Gateway module communicates all rack monitored values and statuses for integration with process control and other automation systems via Ethernet TCP/lP and serial (RS232/RS422/RS485) communications. It can also communicate over Ethernet with Rack Configuration Software and Data Acquisition Software. Protocols supported include:

Modicon Modbus protocol (via serial communications)

Modbus/TCP protocol (a serial Modbus variant used for TCP/IP Ethernet communications)

Bently Nevada protocol (proprietary) (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

Product Attributes

Protocol Translation: Converting data from one communication protocol to another, such as from Modbus to OPC (OLE for Process Control), or from Zigbee to Wi-Fi.

Data Format Conversion: Transforming data between different formats, such as converting data from XML to JSON.

Connectivity Management: Establishing and managing connections between multiple networks or systems, handling authentication, security, and access control.

Security and Encryption: Implementing security measures like encryption, firewall protection, or secure authentication to safeguard data during transmission.

Monitoring and Diagnostics: Providing tools and interfaces for monitoring the status, performance, and health of the connected systems, enabling troubleshooting and diagnostics.

Technical FAQ

Q: What is the operating temperature range of the Bently Nevada 3500/90 communication gateway module?

A: The operating temperature range is -30 °C to +65 °C.

Q: What is the storage temperature range of the Bently Nevada 3500/90 communication gateway module?

A: The storage temperature range is -40 °C to +85 °C.

Q: What is the maximum allowable relative humidity of the Bently Nevada 3500/90 at the upper operating temperature limit of 65 °C?

A: The maximum allowable relative humidity is 95% (non-condensing).

Q: What communication capabilities does the Bently Nevada 3500/90 module offer?

A: The Bently Nevada 3500/90 supports Ethernet TCP/IP and serial communications (RS232/RS422/RS485). It enables communication with process control and automation systems using these protocols.

Q: What software can the Bently Nevada 3500/90 module communicate with?

A: The Bently Nevada 3500/90 enables Ethernet communication with the Rack Configuration Software and Data Acquisition Software, and also supports other software packages based on the Bently Nevada protocol, including configuration and data acquisition tools.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
