Half-Height Future Expansion Faceplate | 128276-01E | Bently Nevada

Technical Specifications

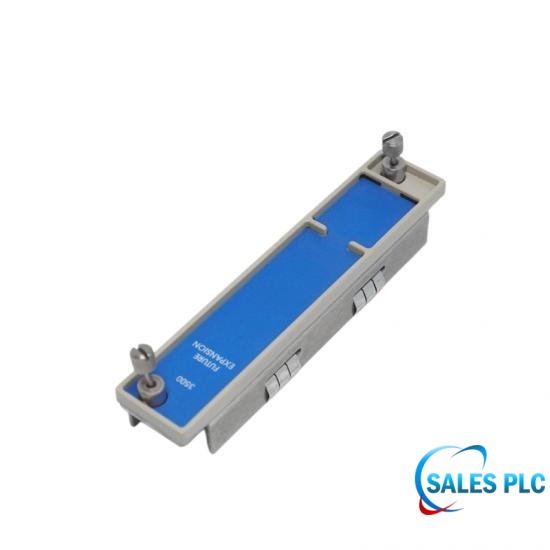

128276-01E is a Half-Height Future Expansion Faceplate developed by Bently Nevada. It is a part of the Bently Nevada 3500 series. It is used to cover the unused half-height slot on the front of the 3500/05 rack. If no card is currently installed in that location, 128276-01E needs to be installed.

Core Functions

Fill Half-Height Gaps: Specifically designed to cover unused half-height slots on the front of a 3500/05 rack. In the 3500 system, cards such as the 3500/25 Enhanced Keyphasor Module are half-height designs (a standard full-height slot is divided into upper and lower half-height slots by rails). If no card is currently installed in that location, 128276-01E needs to be installed.

Optimize Airflow: In industrial field cabinets, unsealed half-height gaps can cause cooling airflow to short-circuit and leak. Installing this blind flange forces cool air to flow precisely to other heat-generating operating cards inside the rack, preventing the unit's protection system from overheating.

Handling and Storing Considerations

Electrostatic Precautions: Circuit boards are sensitive to static discharge, and damage caused by improper handling may void the warranty.

Handling Requirements: Avoid static-generating tools or materials. Always wear a grounding strap before handling or servicing circuit boards.

Storage & Transport: Keep boards in conductive bags or foil during storage and transport.

Low-Humidity Warning: Extra caution is required below 30% RH, where static charge buildup increases significantly.

Technical FAQ

Q: What is 128276-01E used for?

A: It is a dedicated Half-Height blanking panel for the 3500 system. It is used to fill and cover unused half-height module slots.

Q: Where are “half-height” blanking panels used in a 3500 rack?

A: They are mainly used in dedicated slot areas designed for half-height modules. A typical application is covering empty positions adjacent to, above, or below modules such as the 3500/25 enhanced Keyphasor module.

Q: What should be considered when installing 128276-01E?

A: Simply align it with the half-height empty slot and tighten the screws on both ends. Since it contains no electronic components, no channel configuration or software setup is required in the 3500 configuration system.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
