EH-PT4
Four-Channel Pt100/Pt1000 RTD Input Module · Four-input temperature module for Pt100 or Pt1000 resistance sensors with signed 15-bit conversion and an external 24 VDC supply.
Lifecycle note: Use the unit nameplate and current Hitachi documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Four-Channel Pt100/Pt1000 RTD Input Module · Hitachi HIDIC EH-150 PLC System

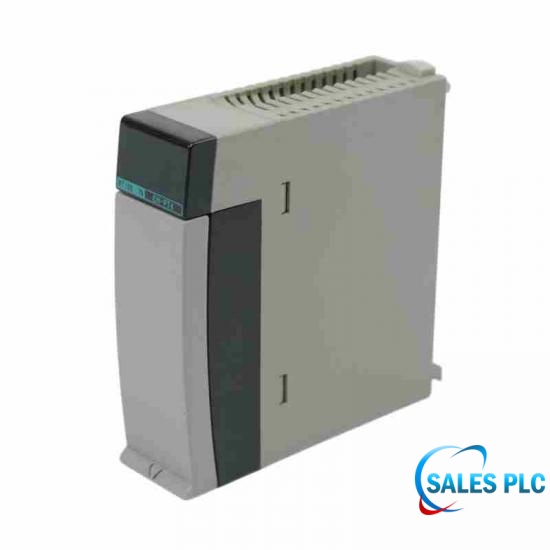

Hitachi EH-PT4 is a four-channel temperature input module for the HIDIC EH-150 PLC family. It converts Pt100 or Pt1000 resistance-temperature signals into signed 15-bit values for the application program.
The module supports -20 to +40°C and -50 to +400°C measurement ranges using a 2 mA constant-current method. All four values are converted in approximately one second, and the input circuitry is photocoupler-isolated from the internal circuit.

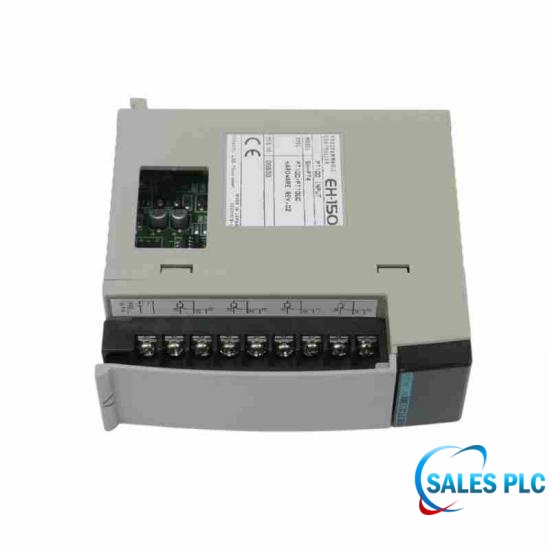

Installation requires the documented three-wire RTD terminal arrangement and an external 24 VDC supply. Confirm sensor type, lead resistance, channel range, open-wire behavior and program scaling before replacement.
| Manufacturer | Hitachi |
|---|---|
| Model | EH-PT4 |
| Product type | RTD temperature input module |
| Supported sensors | Pt100 and Pt1000 |
| Input channels | 4 |
| Conversion data | Signed 15-bit |
| Measurement ranges | -20 to +40°C; -50 to +400°C |
| Excitation | 2 mA constant-current system |
| Conversion time | Approximately 1 second per four values |
| Isolation | Photocoupler between values and internal circuit; no channel-to-channel isolation |
| External supply | 24 VDC |
| Internal current consumption | 200 mA maximum at 5 VDC |
| External current consumption | 100 mA maximum at 24 VDC |
| Approximate dimensions | 30 × 100 × 95 mm |
| Approximate weight | 0.18 kg |
Hitachi EH-PT4 accepts Pt100 and Pt1000 platinum resistance sensors, with the sensor type and temperature range configured to match the installed field element.
Hitachi EH-PT4 provides four RTD input channels and converts the four values in approximately one second.
Hitachi EH-PT4 represents temperature-conversion data as signed 15-bit values, so the PLC program must use the documented data format and scaling.
Hitachi EH-PT4 uses photocoupler isolation between the measured values and the internal circuit, but the individual input channels are not isolated from one another.
Hitachi EH-PT4 requires an external 24 VDC supply and also consumes current from the internal 5 VDC backplane, so both power budgets must be checked.
Replacing Hitachi EH-PT4 requires confirmation of the Pt100 or Pt1000 sensor, three-wire terminal assignment, shield practice, 24 VDC polarity and channel range.

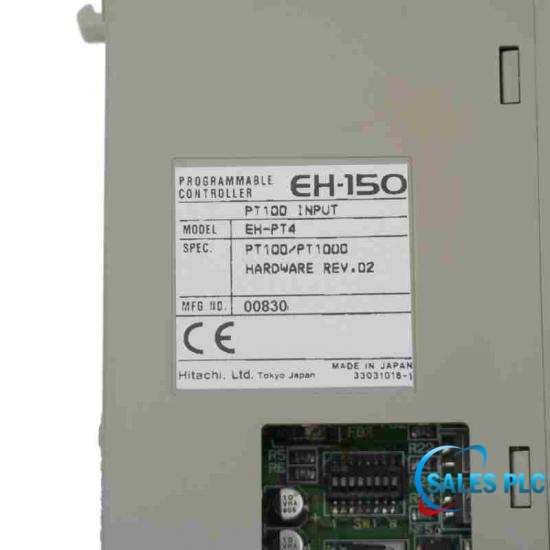

Provide the Hitachi EH-PT4 nameplate, EH-150 base configuration, sensor type, measuring range, wiring diagram, quantity, condition requirement and destination.
Send the complete model, revision, quantity, destination and nameplate photo so the exact hardware identity can be checked.
