1746-BTM
4-Channel Barrel Temperature Control Module · 1746 Specialty I/O
Lifecycle note: Use the unit nameplate and current official documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 153594082754-Channel Barrel Temperature Control Module · 1746 Specialty I/O

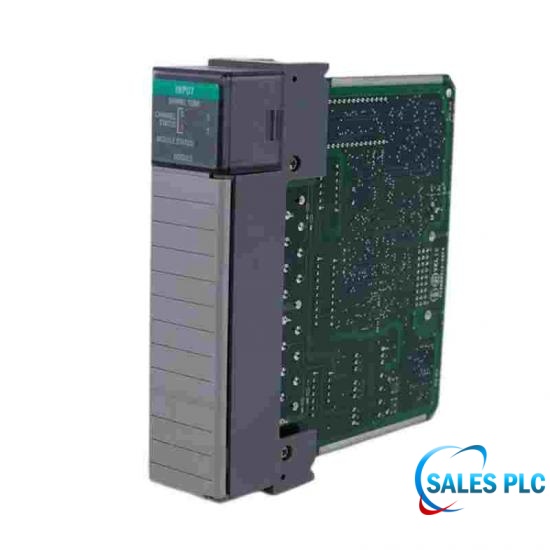

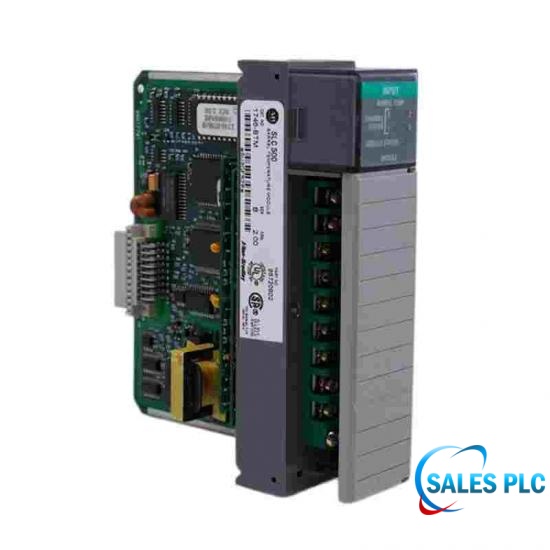

1746-BTM is a four-channel barrel temperature control module for thermocouple and low-level millivolt measurement in a compatible modular I/O chassis.
The official instructions list ten thermocouple types, plus or minus 50 mV and plus or minus 100 mV input ranges, channel-to-channel isolation, sigma-delta conversion and an 8 Hz channel bandwidth.
The module installs in any local I/O slot except slot 0 and requires terminal block 1746-RT32, careful low-level signal routing and verified chassis power capacity.
| Category | PLC |
|---|---|
| Model | 1746-BTM |
| Product type | Barrel temperature control module |
| Channels | 4, isolated from backplane and each other |
| Thermocouple types | B, C, D, E, J, K, N, R, S, T |
| Millivolt ranges | -50 to +50 mV; -100 to +100 mV |
| A/D conversion | Sigma-delta modulation |
| Channel bandwidth | 8 Hz at -3 dB |
| Normal-mode rejection | Greater than 50 dB at 50 Hz; greater than 60 dB at 60 Hz |
| Common-mode rejection | Greater than 120 dB at 50/60 Hz with 1 kohm imbalance |
| Backplane current | 0.110 A at 5 V DC; 0.085 A at 24 V DC |
| Isolation test | 1000 V AC for 60 s |
| Operating temperature | 0 to 60 deg C |
| Storage temperature | -40 to 85 deg C |
| Relative humidity | 5 to 95%, non-condensing |
| Required terminal block | 1746-RT32 |
| Calibration interval | Once every six months |
1746-BTM measures four isolated thermocouple or millivolt channels and supports barrel temperature control calculations in a compatible modular control application.
1746-BTM supports thermocouple types B, C, D, E, J, K, N, R, S and T plus input ranges of -50 to +50 mV and -100 to +100 mV.
The four 1746-BTM channels are isolated from the backplane and from one another, with an official 1000 V AC for 60 seconds isolation test.
1746-BTM draws 0.110 A from the 5 V DC backplane supply and 0.085 A from the 24 V DC backplane supply, so both values belong in the chassis power calculation.
1746-BTM can be installed in any local modular I/O chassis slot except slot 0 and requires the 1746-RT32 removable terminal block.
1746-BTM thermocouple wiring should be separated from relays and AC drives, use the correct extension wire and grounding practice, and preserve polarity, shielding and cold-junction arrangements.
A replacement request for 1746-BTM should include module series, chassis and slot, sensor types, configured ranges, terminal block, calibration status, program backup, quantity and destination.

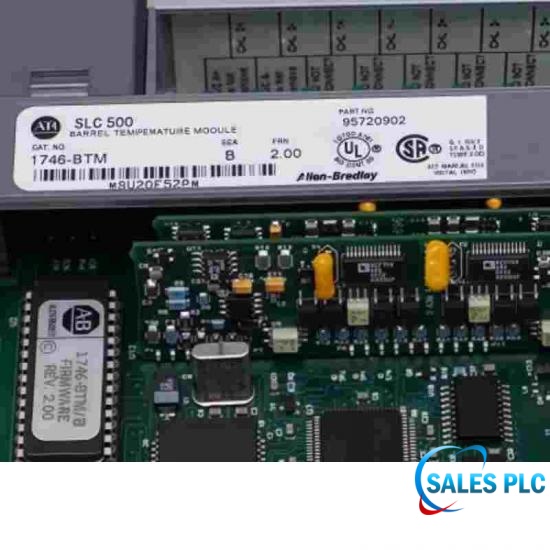

Send the complete 1746-BTM catalog number, revision, quantity, destination and nameplate photo. Identification details will be checked before quotation.
