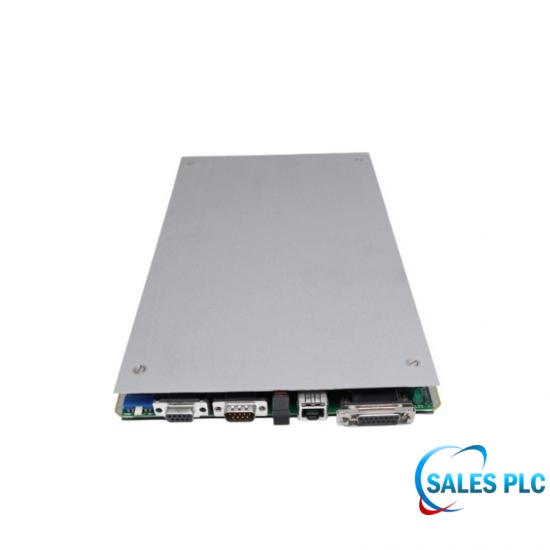

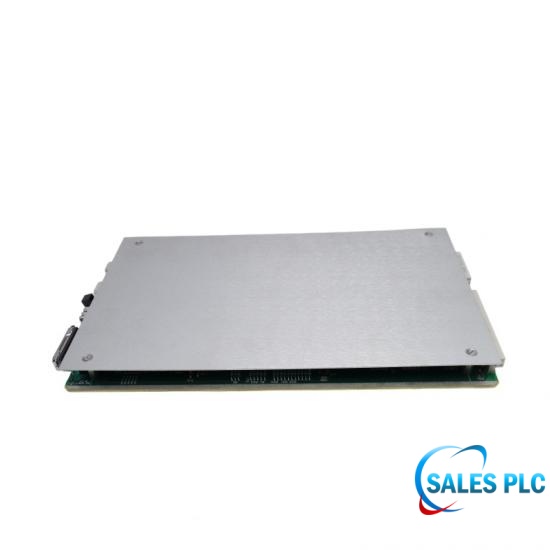

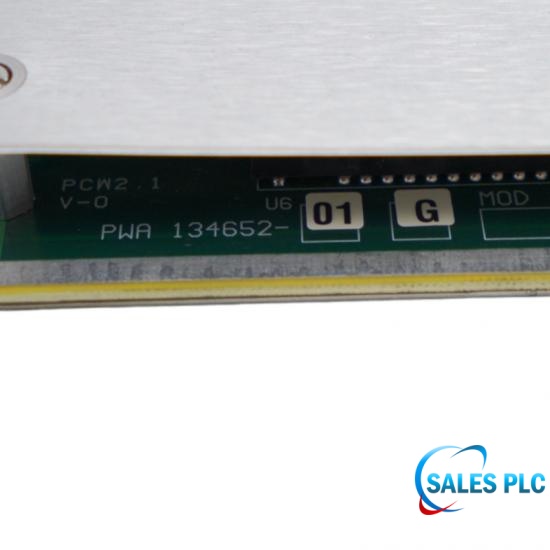

TDXnet CPU Processor Board | 134652-01 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications
134652-01 is a TDXnet CPU Processor Board developed by Bently Nevada. It is a part of the Bently Nevada 3500 series. The interface between compatible machinery protection systems and Bently-online Nevada's machinery management software is provided through the TDXnet Transient Data Interface. It significantly outperforms earlier communications processors like TDIX, TDM, and DDM in terms of both data gathering features and data transmission (Ethernet or serial).It continually gathers both steady state and startup/shutdown data from all connected channels in parallel.
|
Manufacturer |
Bently Nevada |
|
Article number |
134652-01 |
|
Type |
TDXnet CPU Processor Board |
|
Dimension |
33.8x2.5x19cm |
|
Weight |
0.7kg |
|
Processor Speed |
25 MHz |
|
Memory |
16 MB |
|
Operating Temperature |
0°C to +65°C (+32°F to +149°F) |
|
Storage Temperature |
−40°C to +85°C (−40°F to +185°F) |
|
Humidity |
0% to 95% non-condensing |
|
Keyphasor Inputs |
4 per unit |
|
Keyphasor Speed Range |
60 to 60,000 rpm |
|
Keyphasor Backup Configuration |
Software configurable to real or simulated source |
|
Power Requirements |
Standard industrial power supply |
|
Mounting |
Standard rack-mount configuration |
Features
Immediate Recovery from Power Loss
High Resolution Static, Orbit, and Spectrum Data
Ethernet Link to Data Manager
Two Independent Startup/Shutdown Buffers
Key Applications
Power Generation: Steam and gas turbine monitoring systems
Rotating Equipment: Compressor and pump vibration analysis
Transient Data Capture: High-speed event recording during startup/shutdown cycles
Predictive Maintenance: Real-time machinery health assessment
Critical Asset Protection: Early fault detection in mission-critical equipment
Technical FAQ
Q: What is the main operating frequency of the 134652-01?
A: The working main frequency is 25 MHz.
Q: How much onboard memory does the 134652-01 have?
A: It has 16 MB of onboard high-reliability memory, used for data buffering and system operation.
Q: What interfaces are used by the 134652-01 to connect with host systems?
A: It provides Industrial Ethernet (Ethernet Link) and serial communication (RS-232) interfaces, enabling seamless data transmission to Bently Nevada Data Manager and other online machinery condition monitoring software.
Q: What transient trigger modes are supported by the 134652-01?
A: It supports time-based triggering, event-based triggering (such as speed or vibration alarms), and manual remote triggering.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
