Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications

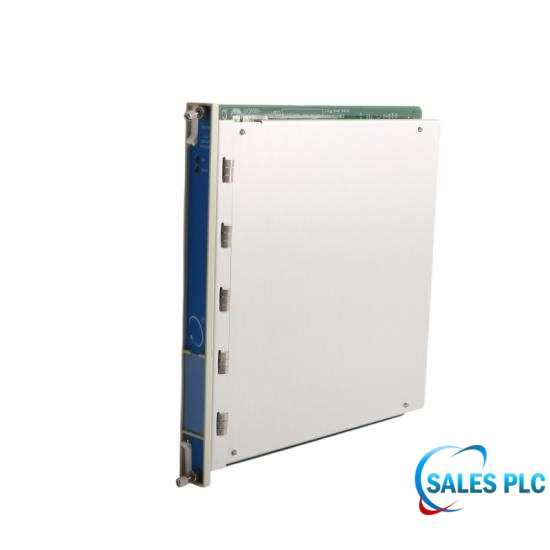

The 3500/94 VGA Display uses a standard color VGA monitor with “Touch Screen” technology to display 3500 data. This product has two components, the 3500/94 VGA module and its I/O card, and secondly, the VGA display monitor. The display monitor, with standard cabling, can be mounted up to 8 m (25 ft) from the rack.
|
Manufacturer |
Bently Nevada |
|
Article number |
3500/94 |
|
Type |
VGA Display |
|
Dimension |
24.3x4.6x15.5cm |
|
Weight |
0.55 kg |
|
Power Consumption |
4.6 watts max |
|
High-speed Network |
Monitor status, data and values |
|
RS232 Port (I/O) |
Touch controller data |
|
Operating Temperature |
-30°C to +65°C (-22°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95% non-condensing |
|

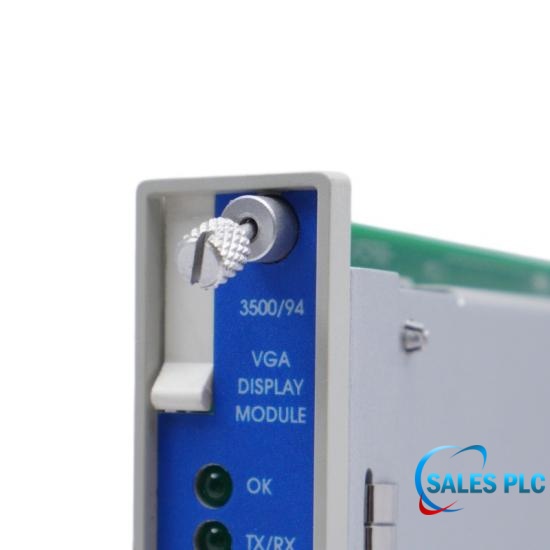

Outputs OK LED |
Indicates proper operation of the module |
|
Outputs TX/RX LED |
Indicates communications between other system modules |
|
VGA Port (I/O) |
Analog red, green, blue and sync signals to the display |
|
Rack Space Monitor Module |
1 full-height front slot |
|
Rack Space I/O Module |
1 full-height rear slot |
|
Compliance and Certifications |
EMC, Electrical Safety |
|
Hazardous Area Approvals |
ATEX |
Core Display Functions and Visuals
Rack Summary: Visually simulates the card arrangement of the entire 3500 rack, clearly showing which slot is alarming and which slot's bypass is enabled.
Group/List Display: Allows grouping and displaying trends and real-time values for associated measurement points (e.g., X/Y axis vibration, bearing temperature, and speed of bearing 1).
Event List: Locally displays recently occurring system diagnostic events and alarm history, allowing instrumentation personnel to directly access "first fault location" information without needing a computer.
Supported Display Configurations
Local Rack Display (VGA Display): The 3500/94 module connects directly to the 3500/94 display panel mounted on the front of the 3500 rack via a dedicated cable. This configuration compactly integrates the display with the rack and is typically used for recessed installation in field cabinet doors.
Remote Display: Utilizing the rear I/O modules, the video signal can be extended via a standard VGA cable or a universal KVM (keyboard-monitor-mouse) extender. The color display can be installed at locations far from the 3500 rack (such as on the door panel of the control room or operator's room).
Technical FAQ
Q: What is the operating temperature of the component?
A: The operating temperature should be between -20°C to 65°C.
Q: Under what temperature should the product be stored?
A: For proper functioning, the module should be kept within a temperature range of -40°C to 85°C.
Q: What are the outputs of the module?
A: The outputs include VGA port (I/O), OK LED, TX/RX LED, and Front Port.
Q: What is the maximum physical connection distance between an external VGA touchscreen display and the 3500 frame?
A: When using a standard direct cable connection, the maximum distance is 6 to 8 meters (20 to 25 feet). With a KVM signal extender, the remote deployment distance can reach up to 10 kilometers.
Q: How many custom monitoring screens can be configured on the 3500/94M touchscreen system?
A: Up to 9 custom screens can be configured via software or local setup, allowing machine train data to be grouped and displayed for monitoring.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
