Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications

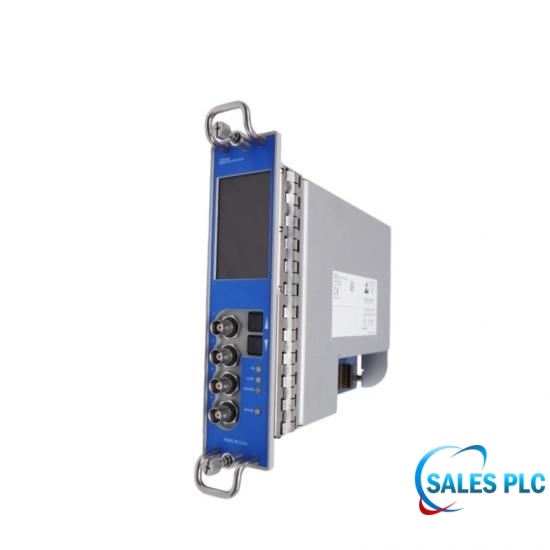

The 3500/42E Vibration Monitor is a 4-channel monitor that accepts input from proximity and seismic transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms.
|
Manufacturer |
Bently Nevada |
|
Article number |
3500/42E |
|
Type |
Vibration Monitor |
|
Signal Input |
Accepts 1 to 4 proximity, velocity, or acceleration transducer signals |
|
Input Impedance |
10 kΩ (Proximitor and Acceleration Inputs) |
|
Power Consumption |
6.8 W typical |
|
Sensitivity – Radial Vibration |
3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
|
Sensitivity – Thrust |
3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
|
Sensitivity – Eccentricity |
3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
|
Sensitivity – Differential Expansion |
0.394 mV/µm (10 mV/mil) or 0.787 mV/µm (20 mV/mil) |
|
Sensitivity – Acceleration |
10 mV/(m/s²) (100 mV/g) |
|
Sensitivity – Velocity |
20 mV/(mm/s) pk (500 mV/(in/s) pk) or 5.8 mV/(mm/s) pk (145 mV/(in/s) pk) or 4 mV/(mm/s) pk (100 mV/(in/s) pk) |
|
Front Panel OK LED |
Indicates module operating properly |
|
Front Panel DANGER LED |
Indicates danger condition detected and danger alarm active |
|
Front Panel ALERT LED |
Indicates alert condition detected and alert alarm active |
|
Front Panel Bypass LED |
Indicates Bypass Mode active |
|
Buffered Transducer Output |
One coaxial connector per channel, short-circuit protected |
|
Dimension |
5.5x29x23cm |
|
Weight |
1.26kg |
|
Output Impedance |
499 Ω |
|
Transducer Power Supply |
-24 Vdc |
|
Recorder Output |
4–20 mA proportional to monitor full-scale; individual output per channel; unaffected by short circuit |
|
Operating Temperature |
-20°C to +65°C (-4°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
|
Rack Space Requirement – Monitor Module |
1 full-height front slot |
|
Rack Space Requirement – I/O Module |
1 full-height rear slot (4-channel I/O) |
The fundamental differences between 3500/42M and 3500/42E
3500/42M: For standard 3500 systems (using the 3500/05 standard rack and 3500/22M TDI interface module).
3500/42E: Specifically designed for 3500 ENCORE systems (using the 3500/05E rack and 3500/23E TDI interface module). The physical form factor of the slots and the electrical communication interfaces on the backplane are completely different, and they cannot be cross-fitted.
Core Functions and Monitoring Types
Radial Vibration: Monitors the peak-to-peak relative runout of the journal within the bearing.
Thrust Position: Monitors the amount of runout in the thrust bearing to prevent rotor-stator collision.
Eccentricity: Used during the turning gear stage of large units to measure the relative thermal bending of the shaft.
Differential Expansion: Measures the relative expansion of the rotor and the cover during startup and shutdown.
Technical FAQ
Q: What is the input impedance of the 3500/42E module?
A: The input impedance is 10 kΩ.
Q: What is the acceleration input impedance of the 3500/42E module?
A: The acceleration input impedance is also 10 kΩ.
Q: What is the typical power consumption of the 3500/42E module?
A: The typical power consumption is 6.8 W.
Q: What types of industrial vibration sensor inputs can the 3500/42E accept?
A: It has high compatibility and can accept signals from Proximity Probes, Velocity Transducers, and Accelerometers, including both voltage and current signals.
Q: Do the four channels of the 3500/42E need to maintain identical functions during software configuration?
A: No. The module uses a channel pair configuration principle. Channels 1/2 and 3/4 can be configured independently for different monitoring functions (e.g., 1/2 for X-Y radial vibration, 3/4 for axial displacement).
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
