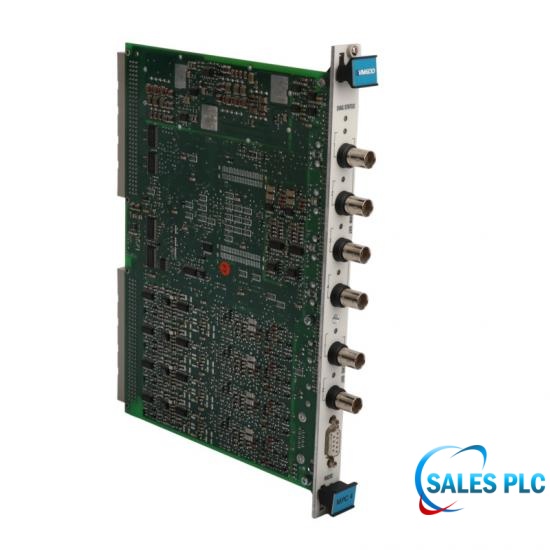

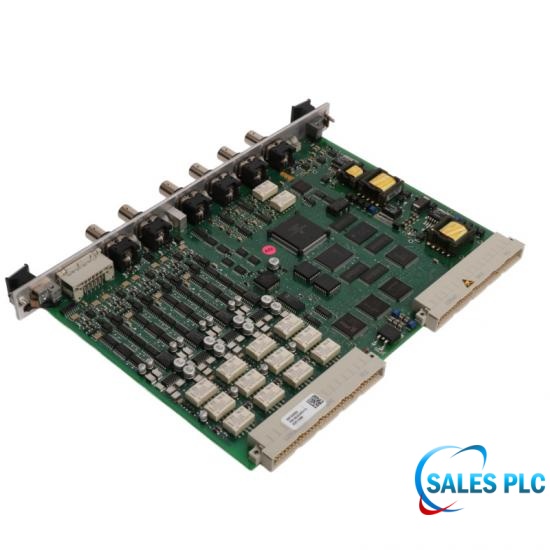

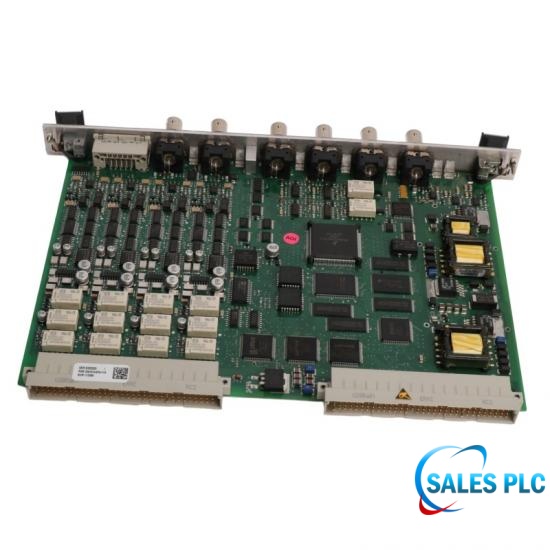

Vibro-Meter 200-510-074-114 MPC4 Machinery Protection Card
200-510-074-114
MPC4 Machinery Protection Card · Machinery Protection Processing Card for Vibro-Meter VM600 Machinery Protection System
Lifecycle note: Use the unit nameplate and current Vibro-Meter documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275MPC4 Machinery Protection Card · Vibro-Meter VM600 Machinery Protection System
Vibro-Meter 200-510-074-114 is an MPC4 machinery protection processing card for the VM600 machinery protection system. The MPC4 platform measures and monitors up to four dynamic signals and two speed or phase-reference signals simultaneously.
Vibro-Meter 200-510-074-114 accepts configurable measurement chains for acceleration, velocity, displacement, thrust position, housing expansion and dynamic pressure. Digital processing supports filtering, integration or differentiation, rectification, order tracking and sensor-gap measurement where configured.
The MPC4 works as a card pair with a corresponding IOC4T input/output card. Processed alarm states can drive IOC4T relays or be routed through the VM600 rack buses, while buffered signals are available for analysis and external monitoring equipment.
Keep 200-510-074-114 separate from 200-510-074-113 and verify hardware revision, coating and installed database independently. Preserve the installed MPSx database, channel setup, sensor power arrangement, alarm logic and rack compatibility when replacing Vibro-Meter 200-510-074-114; do not treat another 200-510 suffix as identical without documentation.
| Manufacturer | Vibro-Meter |
|---|---|
| Model | 200-510-074-114 |
| Product type | Machinery Protection Processing Card |
| System family | Vibro-Meter VM600 Machinery Protection System |
| Designation | MPC4 |
| Ordering number | 200-510-074-114 |
| Dynamic signal inputs | 4 |
| Speed / phase inputs | 2 |
| Voltage input DC range | 0 to +20 V or 0 to −20 V |
| Voltage input AC range | ±10 V max. |
| Common-mode voltage range | −50 to +50 V |
| Input impedance | 200 kΩ |
| Current input DC range | 0 to 25 mA |
| Current input AC range | ±8 mA max. |
| Analog input frequency range | DC to 60 kHz (−3 dB) |
| Processing range without integration | 0.1 Hz to 10 kHz |
| Processing range with integration | 2.5 Hz to 10 kHz |
| Amplitude accuracy | ±1% of full-scale |
| Linearity error | <±1% |
| Equivalent input noise | <200 µV RMS |
| Alarm scanning interval | 100 ms max. |
| Output impedance | 50 Ω (later hardware); verify exact revision |
| Supply voltages | +5 VDC and ±12 VDC |
| Consumption from +5 VDC | 12.5 W typical + 1 W per powered sensor |
| Consumption from ±12 VDC | 2.5 W max. |
| Sensor voltage supplies | +27.2 V, −27.2 V or +15.0 V, each ±5% |
| Operating temperature | −25 to 65°C |
| Storage temperature | −40 to 85°C |
| Dimensions (H × W × D) | 262 × 20 × 187 mm |
| Approximate weight | 0.40 kg |
Use the installed-unit nameplate, current Vibro-Meter documentation and approved site engineering records as the final references.
Vibro-Meter 200-510-074-114 is an MPC4 machinery protection processing card for a VM600 rack, providing configurable monitoring for four dynamic channels and two speed-reference channels.
Vibro-Meter 200-510-074-114 can process configured acceleration, velocity, displacement, thrust position, housing expansion and dynamic-pressure measurements. The installed sensor chain and software database determine the active functions.
Vibro-Meter 200-510-074-114 supports up to four dynamic signal inputs and two speed or phase-reference inputs. Verify channel assignments, transmission mode, scaling and sensor power before commissioning.
Vibro-Meter 200-510-074-114 operates with a corresponding IOC4T input/output card. Match both card part numbers, rack slot, rear connector, relay wiring and database configuration before replacement.
Vibro-Meter 200-510-074-114 can be configured through the VM600 rack VME interface when a CPUx controller is present, or through its front-panel RS-232 service connection.
Vibro-Meter 200-510-074-114 supports programmable Alert and Danger setpoints with delay, hysteresis and latching. Alarm routing and relay action depend on the IOC4T and rack configuration.
Vibro-Meter 200-510-074-114 runs a power-up self-test and continuously uses the OK System to supervise connected sensor or signal-conditioner chains for invalid levels and transmission faults.
Another MPC4 suffix should not replace Vibro-Meter 200-510-074-114 until the complete PNR, hardware version, card type, coating, IOC4T pairing, software database and rack approval are matched.
Provide the complete Vibro-Meter 200-510-074-114 PNR, revision, serial number, IOC4T PNR, rack and slot, sensor types, channel database, alarm requirements, quantity and destination.
Send the complete model, part number, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
