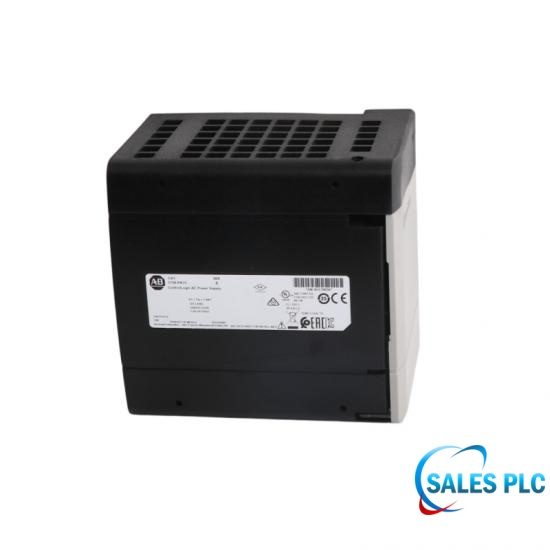

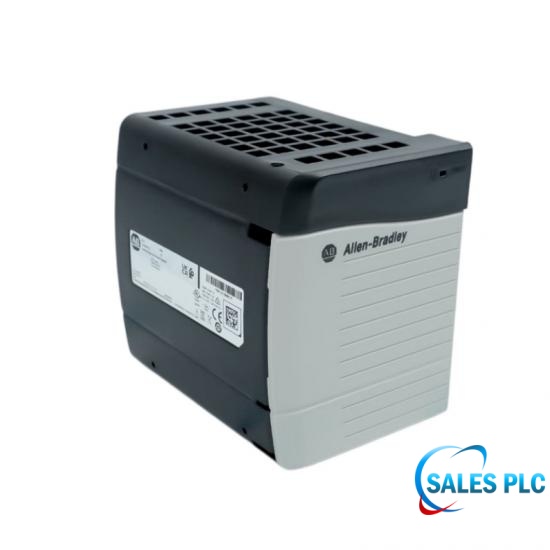

1756-PA75 PLC ControlLogix 85-265 VAC 75W Power Supply
1756-PA75
Wide-range AC chassis supply delivering as much as 75 W of combined backplane power for standard ControlLogix systems. Confirm the exact installed configuration and revision before replacement.
Scope note: Supplied as a model-specific industrial component; system engineering, accessories and site acceptance are verified separately.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Standard nonredundant AC chassis power supply for ControlLogix 1756
This standard ControlLogix chassis supply accepts 85 to 265 VAC and mounts on the left side of a compatible 1756 chassis to energize the backplane.
Its four backplane rails share a 75 W combined limit, so engineers must verify both the total power calculation and the published current ceiling for each rail before installation.
Ordering note: Verify the complete model, installed system, revision and current manufacturer documentation before purchase or installation.
| Product family / type | ControlLogix 1756 standard AC chassis power supply |
|---|---|
| Input voltage | 85–265 VAC; 120/240 VAC nominal |
| Input frequency / power | 47–63 Hz; 100 VA / 100 W maximum |
| Combined backplane output | 75 W maximum at 0–60 °C |
| Backplane current capacity | 1.5 A at 1.2 VDC; 4 A at 3.3 VDC; 13 A at 5.1 VDC; 2.8 A at 24 VDC |
| Maximum inrush current | 20 A |
| Input-to-backplane isolation | 250 V continuous reinforced; 3500 VDC type test for 60 seconds |
| Mounting / approximate size | Left side of compatible 1756 chassis; 140 × 112 × 145 mm; 0.95 kg |
Compatibility depends on the complete ordering code, installed hardware, wiring and approved engineering data.
The supply supports up to 1.5 A at 1.2 VDC, 4 A at 3.3 VDC, 13 A at 5.1 VDC, and 2.8 A at 24 VDC within the combined power limit.
Use 2.5 mm² copper conductors rated at 90 °C or higher and tighten the terminal screws to 0.565 N·m.
It mounts on the left side of a compatible A4, A7, A10, A13, or A17 chassis.
The upstream circuit and protection must accommodate a maximum published inrush current of 20 A.
It is a standard nonredundant supply, so redundant applications require the dedicated redundant power architecture.

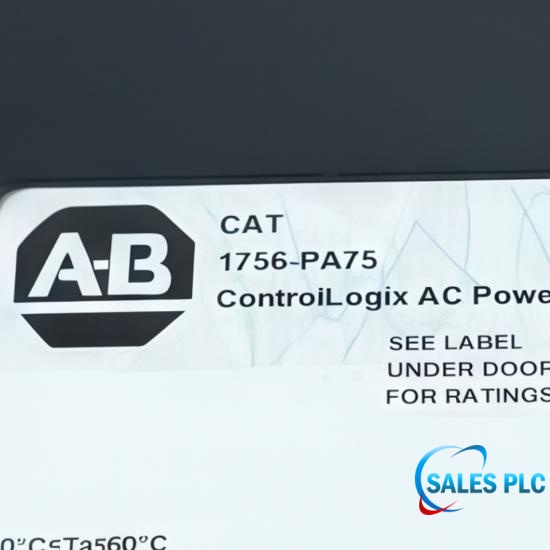

Send the complete 1756-PA75 model, quantity, installed system, destination and clear label photos. Availability and condition will be confirmed before quotation.
