3511
TMR Pulse Input · 8 Channels · 20–20,000 Hz
Lifecycle note: Triconex 3511 is a 32-point differential TMR pulse input module. Confirm signal range, shunt resistors, grounding, termination and configured scaling before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Pulse Input Module · Tricon Safety Systems

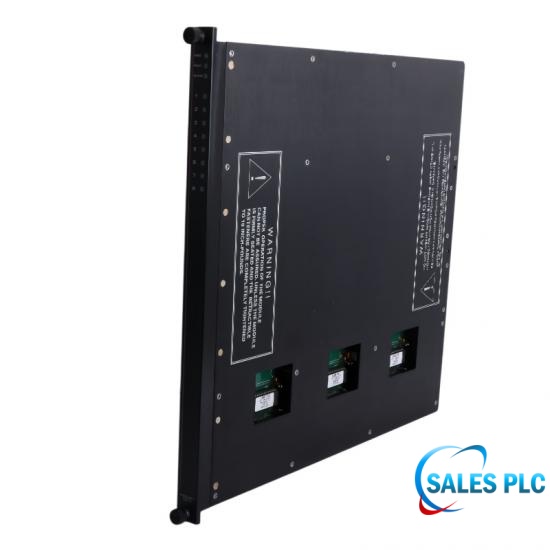

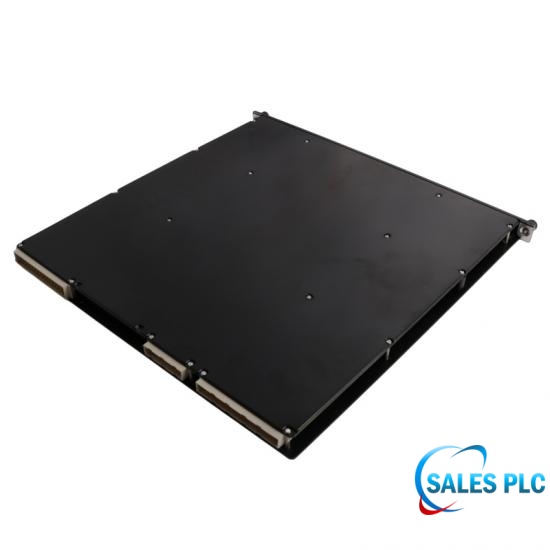

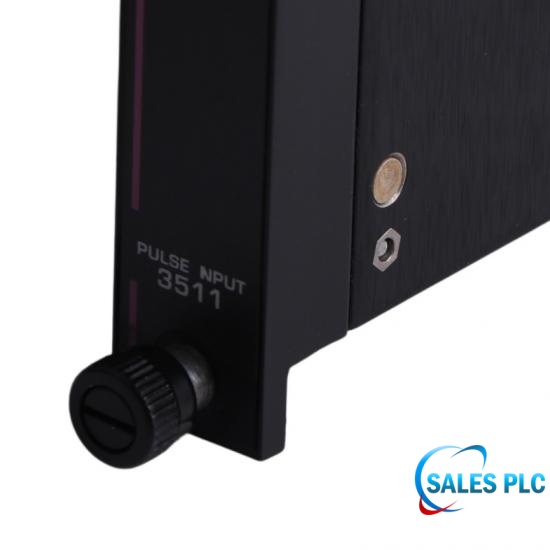

Triconex 3511 is a Pulse Input Module engineered for use within Tricon Safety Systems. It supports installed control, safety and maintenance strategies where the exact module or termination identity must remain traceable to the approved system configuration.
Key technical identifiers for engineering review include Module type: TMR Pulse Input; Input signals: 8 non-commoned; Resolution: 16 bit; Frequency range: 20–20,000 Hz. These values should be checked against the installed hardware, field interface, project drawings and the current site asset record before replacement. From a system-integrator perspective, compatibility assessment should cover the complete model and hardware revision, chassis or termination arrangement, connector and channel mapping, field voltage or signal requirements, firmware or system release, and the applicable TriStation configuration.
For commissioning and maintenance, follow the approved isolation, inspection and test procedure. Record point checks, diagnostics, wiring condition and observed system response so the replacement decision can be traced to the installed loop or subsystem. For MRO procurement, provide a clear nameplate photo, required quantity, destination, urgency and any revision restrictions. Commercial confirmation should distinguish new, surplus and refurbished condition and should reference the offered serial or nameplate identity.
| Manufacturer | Triconex / Schneider Electric |
|---|---|
| Model | 3511 |
| Module type | TMR Pulse Input |
| Input signals | 8 non-commoned |
| Resolution | 16 bit |
| Frequency range | 20–20,000 Hz |
| Accuracy at 1–20 kHz | ±0.01% |
| Update rate | 25 ms typical |
| Input impedance | >8 kΩ; 20 kΩ typical |
| Signal types | Sine / square / pulse |
| Duty cycle | 10–90% |
| Current input | 0–20 mA with 250 Ω shunt |
| Indicators | PASS, FAULT, ACTIVE |
| Color code | Light purple |
Tricon is a legacy Triconex automation platform. Confirm the complete installed configuration before replacement or migration.
Record and approve eight non-commoned inputs, 16-bit resolution, 20-20,000 Hz range and signal amplitude. The baseline must match the installed safety application before hardware is moved.
The integration record must cover sensor waveform, duty cycle, shielding, 250 ohm shunt use and engineering-unit scaling. Include drawings and point or port assignments with the change package.
Supplier inspection should include frequency accuracy, update rate, impedance, overrange endurance and channel isolation inspection. Results must be traceable to the offered serial or nameplate identity.
MRO should provide 3511 nameplate photos plus sensor type, minimum/maximum speed, pulse amplitude, cable distance and required channel count. This prevents a visually similar but unsuitable spare from being selected.
Under the approved site procedure, inject low, mid and high frequencies, confirm 25 ms updates and validate speed scaling. Record observed system indications before returning the loop or subsystem to service.
Check for weak amplitude, poor shield grounding, duty-cycle violation, noise pickup or incorrect shunt installation. Compare field measurements with module or panel indications before condemning the spare.
Engineering must account for sine, square or pulse sources within the published frequency and 10-90 percent duty-cycle limits. Similar connectors or base numbers alone do not establish interchangeability.
The final dossier should record frequency error, amplitude, waveform, update time, channel map and light-purple color code. Add revision and nameplate traceability so procurement and engineering review the same item.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: Official Triconex Product Specifications — Model 3511. File size is below 1 MB; verify the exact installed hardware and configuration before use.
