3503E
1,500 VDC Digital Input with Self-Test · 24 VAC/VDC · 32 Points
Lifecycle note: Triconex 3503E is a self-testing 32-point TMR digital input module. Confirm field voltage, grouped commons, external termination and configured point mapping before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Digital Input Module · Tricon Safety Systems

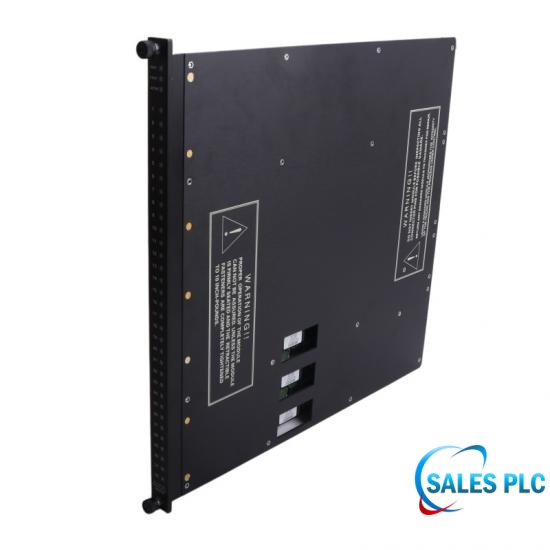

Triconex 3503E is a Digital Input Module engineered for use within Tricon Safety Systems. It supports installed control, safety and maintenance strategies where the exact module or termination identity must remain traceable to the approved system configuration.
Key technical identifiers for engineering review include Module category: TMR Digital Input with Self-Test; Nominal field voltage: 24 VAC/VDC; Input points: 32, commoned in groups of 8; AC/DC operating range: 20-42.5 VAC/VDC. These values should be checked against the installed hardware, field interface, project drawings and the current site asset record before replacement. From a system-integrator perspective, compatibility assessment should cover the complete model and hardware revision, chassis or termination arrangement, connector and channel mapping, field voltage or signal requirements, firmware or system release, and the applicable TriStation configuration.
For commissioning and maintenance, follow the approved isolation, inspection and test procedure. Record point checks, diagnostics, wiring condition and observed system response so the replacement decision can be traced to the installed loop or subsystem. For MRO procurement, provide a clear nameplate photo, required quantity, destination, urgency and any revision restrictions. Commercial confirmation should distinguish new, surplus and refurbished condition and should reference the offered serial or nameplate identity.
| Manufacturer | Triconex / Schneider Electric |
|---|---|
| Model | 3503E |
| Module category | TMR Digital Input with Self-Test |
| Nominal field voltage | 24 VAC/VDC |
| Input points | 32, commoned in groups of 8 |
| AC/DC operating range | 20-42.5 VAC/VDC |
| Frequency range | DC or 47-63 Hz |
| Maximum field voltage | 42.5 VAC/VDC |
| OFF-to-ON threshold | > 18 VAC/VDC |
| ON-to-OFF threshold | < 6 VAC/VDC |
| Nominal turn-on current | 6-9 mA |
| Typical hysteresis | 4 VAC/VDC |
| OFF-to-ON delay | < 8 ms |
| ON-to-OFF delay | < 15 ms |
| Point isolation | 1,500 VDC |
| Nominal input impedance | > 1.25 kΩ |
| Field load - ON point | 0.5 W |
| Field load - maximum voltage | 1.5 W |
| Input indication | 1 status indicator per point |
| Module indications | PASS, FAULT, ACTIVE |
| Stuck-input test | Enabled |
| Module color code | Dark red |
Tricon is a legacy Triconex automation platform. Confirm the complete installed configuration before replacement or migration.
Apply controlled field voltages around the published thresholds: the point should turn ON above 18 VAC/VDC and turn OFF below 6 VAC/VDC. Record the actual transition, delay and TriStation state for the tested channel.
The 32 inputs are commoned in four groups of eight. A common-return or termination error can affect an entire group, so field drawings and ETP wiring must identify every group before module replacement.
It detects a stuck-ON condition that cannot be observed if the field circuit never naturally switches OFF. Proof-test planning must account for how the site safely drives or verifies each input state.
Provide the external termination-panel type, cable/interface arrangement, field voltage, AC or DC service, common grouping and the existing module revision. A model number alone is insufficient for an integration check.

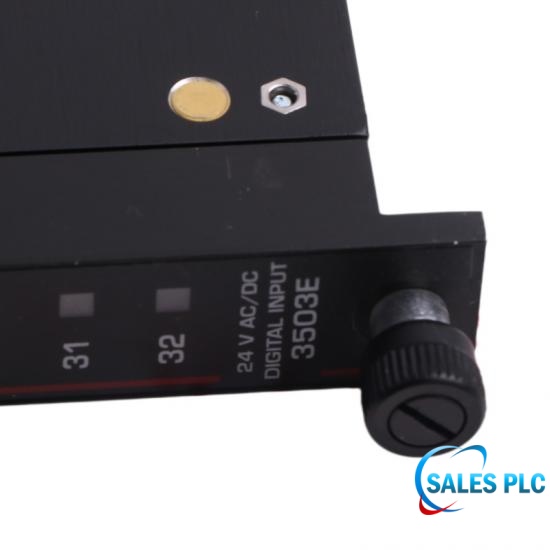

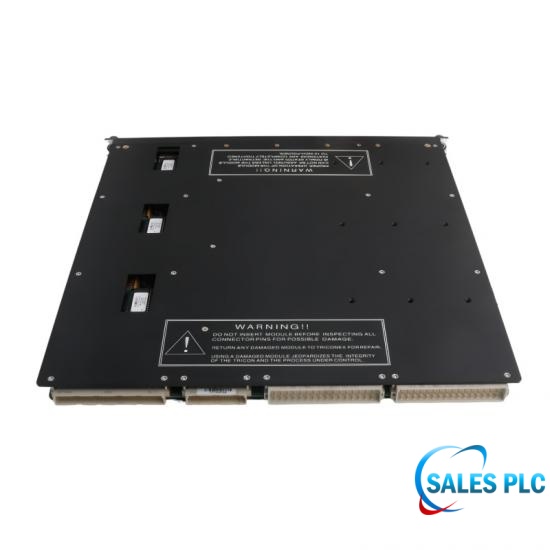

Check the nameplate, keying, connector pins, dark-red identification, housing and fasteners; then verify per-point indication plus PASS, FAULT and ACTIVE status using an approved 24 V test setup.
Request condition, revision, serial/nameplate photographs, test scope, quantity and delivery time, while supplying the installed chassis, ETP, field voltage and required acceptance criteria.
Compare the point LED, TriStation state, measured terminal voltage and other points in the same common group. Use module diagnostics and approved substitution or signal-injection testing before declaring the module failed.
Confirm exact model, mechanical keying, ETP compatibility, configured slot and project mapping. Verify the active system is healthy and follow the approved hot-replacement procedure for the safety application.
Record test states for all assigned inputs, transition response, stuck-test results, point and module diagnostics, common-group checks and application response, with approval under the site validation procedure.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: Official Triconex Product Specifications — Model 3503E. File size is below 1 MB; verify the exact installed hardware and configuration before use.
