9563-810
Field Termination · I/O Wiring Interface · Panel Installation
Lifecycle note: Triconex 9563-810 is a 32-point differential TMR field termination panel. Confirm signal range, shunt resistors, grounding, termination and configured scaling before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Field Termination Panel · Tricon Safety Systems

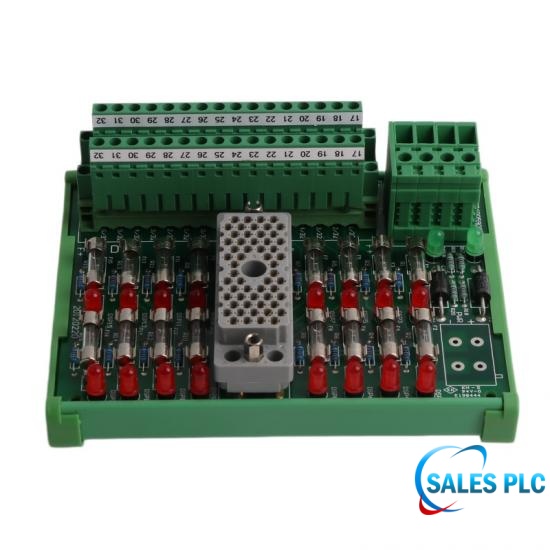

Triconex 9563-810 is a Field Termination Panel engineered for use within Tricon Safety Systems. It supports installed control, safety and maintenance strategies where the exact module or termination identity must remain traceable to the approved system configuration.
Key technical identifiers for engineering review include Panel type: Commoned digital-input termination panel; Field voltage: 24 V; Points: 16; Power terminals: Commoned PWR+ / PWR-. These values should be checked against the installed hardware, field interface, project drawings and the current site asset record before replacement. From a system-integrator perspective, compatibility assessment should cover the complete model and hardware revision, chassis or termination arrangement, connector and channel mapping, field voltage or signal requirements, firmware or system release, and the applicable TriStation configuration.
For commissioning and maintenance, follow the approved isolation, inspection and test procedure. Record point checks, diagnostics, wiring condition and observed system response so the replacement decision can be traced to the installed loop or subsystem. For MRO procurement, provide a clear nameplate photo, required quantity, destination, urgency and any revision restrictions. Commercial confirmation should distinguish new, surplus and refurbished condition and should reference the offered serial or nameplate identity.
| Manufacturer | Triconex / Schneider Electric |
|---|---|
| Model | 9563-810 |
| Panel type | Commoned digital-input termination panel |
| Field voltage | 24 V |
| Points | 16 |
| Power terminals | Commoned PWR+ / PWR- |
| Point protection | Individual fuse with blown-fuse indicator |
| Fuse | 1 A slow-blow |
| Leakage current per point | 2.5 mA typical; 3.3 mA maximum |
| Compatible modules | 3503E / 3505E |
| Panels required per 32-point module | 2 |
| 3503E | 32-point, 24 VAC/VDC, TMR with self-test |
| 3505E | 32-point, 24 VDC low-threshold, TMR with self-test |
| Module point grouping | Commoned in groups of 8 |
| Panel label sets | 1-16 / 17-32 |
Tricon is a legacy Triconex automation platform. Confirm the complete installed configuration before replacement or migration.
Record and approve 24 V commoned wiring, 16 input points, 1 A slow-blow fuses and blown-fuse indication. The baseline must match the installed safety application before hardware is moved.
The integration record must cover PWR+/PWR- distribution, groups of eight, two-panel labeling and 3503E or 3505E association. Include drawings and point or port assignments with the change package.
Supplier inspection should include fuse rating, leakage-current measurement, indicator operation and connector inspection. Results must be traceable to the offered serial or nameplate identity.

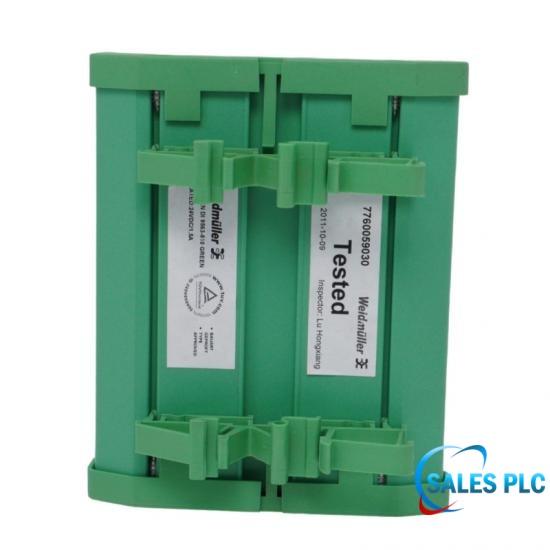

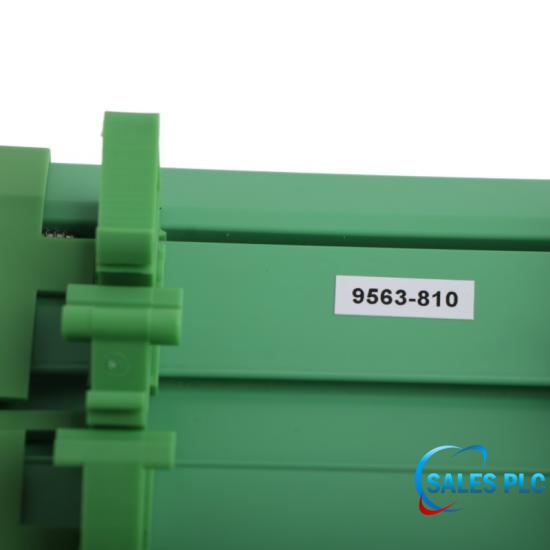

MRO should provide 9563-810 nameplate photos plus field voltage, wet/dry contact scheme, installed DI module and required spare fuses. This prevents a visually similar but unsuitable spare from being selected.
Under the approved site procedure, toggle all inputs, confirm TriStation indication and prove each blown-fuse LED. Record observed system indications before returning the loop or subsystem to service.
Check for 2.5 mA typical leakage, a blown fuse, common-power loss or incorrect group mapping. Compare field measurements with module or panel indications before condemning the spare.
Engineering must account for 3503E 24 VAC/VDC service versus 3505E 24 VDC low-threshold service. Similar connectors or base numbers alone do not establish interchangeability.
The final dossier should record off-state leakage, on/off response, fuse type, point labels and common-power polarity. Add revision and nameplate traceability so procurement and engineering review the same item.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: Official Triconex Product Specifications — Model 9563-810. File size is below 1 MB; verify the exact installed hardware and configuration before use.
