9771-210
External Termination · Field Signal Interface · Tricon I/O
Lifecycle note: Triconex 9771-210 is a 32-point differential TMR external termination panel. Confirm signal range, shunt resistors, grounding, termination and configured scaling before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786External Termination Panel · Tricon Safety Systems

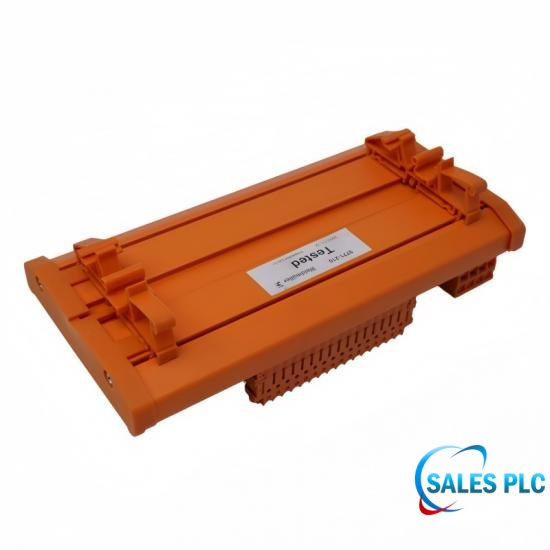

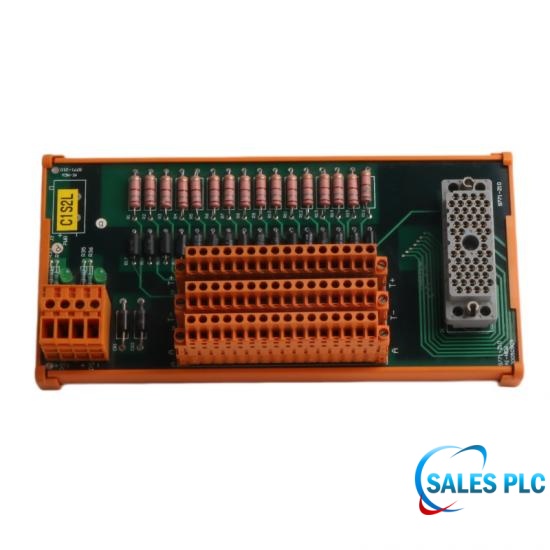

Triconex 9771-210 is a External Termination Panel engineered for use within Tricon Safety Systems. It supports installed control, safety and maintenance strategies where the exact module or termination identity must remain traceable to the approved system configuration.
Key technical identifiers for engineering review include Panel type: Current input, user-configurable; Points: 16; Power-output terminals: 16 (+); Current-input terminals: 16 (-). These values should be checked against the installed hardware, field interface, project drawings and the current site asset record before replacement. From a system-integrator perspective, compatibility assessment should cover the complete model and hardware revision, chassis or termination arrangement, connector and channel mapping, field voltage or signal requirements, firmware or system release, and the applicable TriStation configuration.
For commissioning and maintenance, follow the approved isolation, inspection and test procedure. Record point checks, diagnostics, wiring condition and observed system response so the replacement decision can be traced to the installed loop or subsystem. For MRO procurement, provide a clear nameplate photo, required quantity, destination, urgency and any revision restrictions. Commercial confirmation should distinguish new, surplus and refurbished condition and should reference the offered serial or nameplate identity.
| Manufacturer | Triconex / Schneider Electric |
|---|---|
| Model | 9771-210 |
| Panel type | Current input, user-configurable |
| Points | 16 |
| Power-output terminals | 16 (+) |
| Current-input terminals | 16 (-) |
| Positive-terminal series resistor | 180 ohm |
| Input precision resistor | 250 ohm |
| Current-to-voltage conversion | 0-5 VDC |
| Panel power | Redundant 24 VDC with diode ORing |
| Compatible modules | 2770H、3700、3700A、3703E、3721 |
| Panels required for 32-point AI module | 2 |
| Supported AI ranges | 0-5 VDC / 0-10 VDC / -5 to +5 VDC |
| Shared-system wiring | Remove W jumper |
Tricon is a legacy Triconex automation platform. Confirm the complete installed configuration before replacement or migration.
Record and approve 16 current inputs, 250 ohm precision resistors, 180 ohm current limiting and redundant 24 VDC supplies. The baseline must match the installed safety application before hardware is moved.
The integration record must cover loop power, W-jumper position, transmitter sharing rules and the selected analog-input range. Include drawings and point or port assignments with the change package.
Supplier inspection should include resistor tolerance, diode-OR power paths, terminal condition and channel conversion checks. Results must be traceable to the offered serial or nameplate identity.

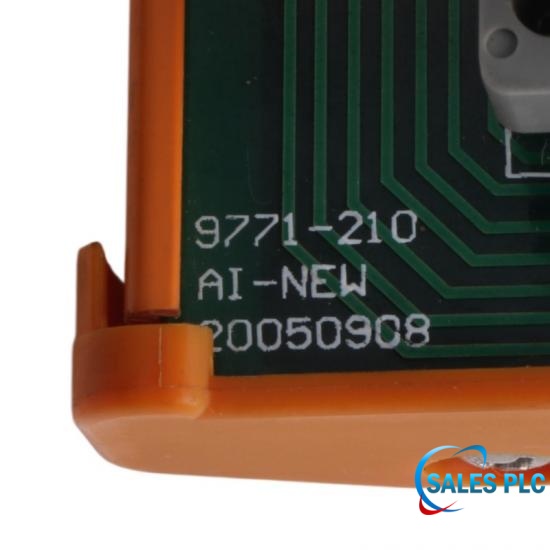

MRO should provide 9771-210 nameplate photos plus transmitter type, 4-20 mA loop details, connected AI module and whether another system shares the signal. This prevents a visually similar but unsuitable spare from being selected.
Under the approved site procedure, source 4, 12 and 20 mA, confirm 1, 3 and 5 V conversion and verify both power feeds. Record observed system indications before returning the loop or subsystem to service.
Check for open loop, wrong W-jumper state, failed supply diode path or out-of-tolerance shunt resistor. Compare field measurements with module or panel indications before condemning the spare.
Engineering must account for 2770H, 3700, 3700A, 3703E and 3721 compatibility without listing them as interchangeable. Similar connectors or base numbers alone do not establish interchangeability.
The final dossier should record loop-current error, converted voltage, supply failover and isolation or sharing configuration. Add revision and nameplate traceability so procurement and engineering review the same item.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: Official Triconex Product Specifications — Model 9771-210. File size is below 1 MB; verify the exact installed hardware and configuration before use.
