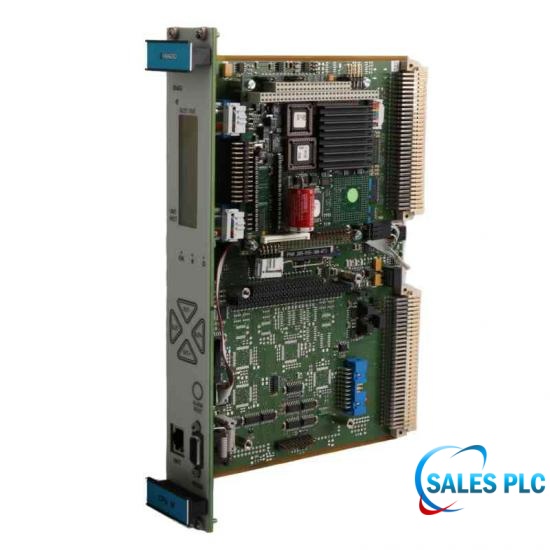

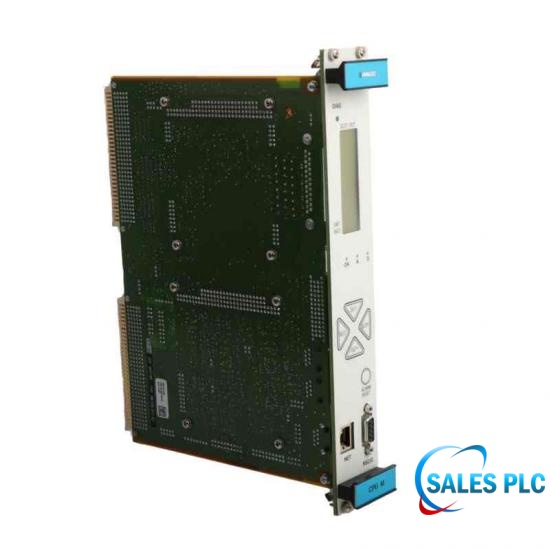

Vibro-Meter CPUM 200-595-031-111 CPUM Modular CPU and Rack Controller Card
CPUM 200-595-031-111
CPUM Modular CPU and Rack Controller Card · VM600 Rack Controller and Communications Card for Vibro-Meter VM600 Machinery Protection System
Lifecycle note: Use the unit nameplate and current Vibro-Meter documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275CPUM Modular CPU and Rack Controller Card · Vibro-Meter VM600 Machinery Protection System
Vibro-Meter CPUM 200-595-031-111 is a VM600 CPUM modular CPU card used as the rack controller and communications gateway. The complete PNR records firmware identifier 031 and hardware identifier 111, which must be retained when matching an installed module.
Vibro-Meter CPUM 200-595-031-111 manages VM600 rack configuration, status indication and event handling, communicates with monitoring cards over the VME backplane, and provides external access through Ethernet and serial interfaces. With a compatible IOCN, the controller can exchange data with supervisory software, DCS or PLC systems.
The documented CPUM platform uses an AMD Geode LX800 processor at 500 MHz with 256 MB DRAM. It supports RS-232 and RS-485 serial links, 10/100BASE-TX Ethernet, Modbus RTU/TCP and firmware-dependent PROFINET functions.
Before installing Vibro-Meter CPUM 200-595-031-111, preserve the CPUM configuration, network addresses, Modbus mapping, time settings, IOCN pairing and rack inventory. The full 031-111 suffix must be checked because firmware and hardware changes can affect compatibility.
| Manufacturer | Vibro-Meter |
|---|---|
| Complete model | CPUM 200-595-031-111 |
| Product type | VM600 Rack Controller and Communications Card |
| System family | Vibro-Meter VM600 Machinery Protection System |
| Complete PNR | 200-595-031-111 |
| Firmware identifier | 031 |
| Hardware identifier | 111 |
| Card function | VM600 rack controller and communications gateway |
| Companion card | IOCN input/output and communications interface |
| CPU module | PFM-541I or equivalent |
| Processor | AMD Geode LX800, 500 MHz |
| Memory | 256 MB DRAM |
| CPU-module input | 5 VDC, <1.8 A |
| Primary serial interface | RS-232, up to 115.2 kBaud |
| Secondary serial interface | RS-232 or RS-485, up to 115.2 kBaud |
| Secondary serial isolation | 500 VDC |
| Primary Ethernet | 10/100BASE-TX, up to 100 Mbps, maximum 100 m |
| Secondary Ethernet | 10/100BASE-TX, up to 10 Mbps, maximum 100 m |
| Fieldbus support | Modbus RTU / Modbus TCP; firmware-dependent PROFINET |
| Modbus capacity | Up to 131072 registers/words and 131072 coils/bits total |
| Internal rack interface | VME A24 / D16 master mode |
| Time synchronization | NTP server or battery-backed real-time clock |
| Rack supply | 5 VDC |
| CPUM power consumption | <10 W |
| CPUM / IOCN pair consumption | ≤12 W |
| Operating temperature | −20 to 65°C |
| Storage temperature | −25 to 80°C |
| Humidity | 0 to 90% RH, non-condensing |

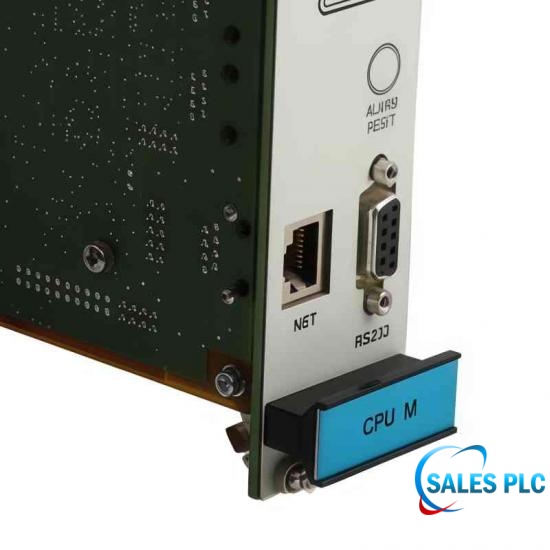

| CPUM connectors | NET: 8P8C (RJ45); RS232: DE-9 female |
| Dimensions | 6U × 40 × 187 mm |
| Approximate weight | 0.40 kg |
Use the installed-unit nameplate, current Vibro-Meter documentation and approved site records as final references.
Vibro-Meter CPUM 200-595-031-111 is a VM600 CPUM rack controller and communications gateway identified by firmware 031 and hardware 111.
The CPUM family applicable to Vibro-Meter CPUM 200-595-031-111 uses an AMD Geode LX800 processor at 500 MHz with 256 MB DRAM.
Vibro-Meter CPUM 200-595-031-111 supports CPUM-family Ethernet and serial communication through the CPUM and compatible IOCN interface card; exact routing depends on jumper and firmware configuration.
The documented CPUM platform supports Modbus RTU and Modbus TCP, while PROFINET requires a supported firmware version and approved system configuration.
Vibro-Meter CPUM 200-595-031-111 communicates with supported protection cards through the VM600 VME backplane using A24 / D16 master mode.
Restore the approved configuration for Vibro-Meter CPUM 200-595-031-111, then verify rack inventory, IP settings, serial parameters, Modbus mapping, NTP time synchronization and event logging.
The IOCN paired with Vibro-Meter CPUM 200-595-031-111 must match the installed CPUM hardware, connector routing, serial requirements and rack wiring.
Another CPUM suffix must not replace Vibro-Meter CPUM 200-595-031-111 until firmware, hardware, IOCN compatibility, communications and saved configuration are confirmed.
Provide the complete Vibro-Meter CPUM 200-595-031-111 PNR, revision, serial number, IOCN PNR, rack type, firmware backup, interface requirements, quantity and destination.
Send the complete Vibro-Meter model, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
