Vibro-Meter CPUM 200-595-046-114 CPUM Modular CPU and Rack Controller Card
CPUM 200-595-046-114
CPUM Modular CPU and Rack Controller Card · VM600 Rack Controller and Communications Card for Vibro-Meter VM600 Machinery Protection System
Lifecycle note: Use the unit nameplate and current Vibro-Meter documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275CPUM Modular CPU and Rack Controller Card · Vibro-Meter VM600 Machinery Protection System

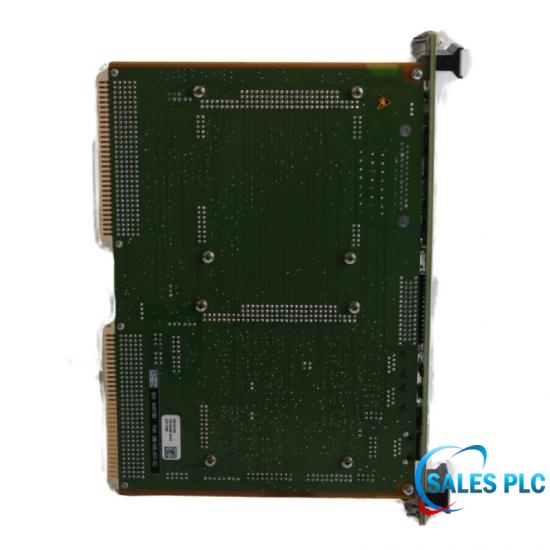

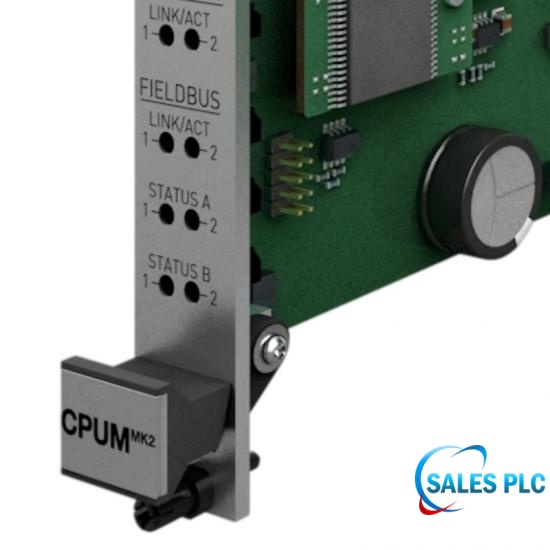

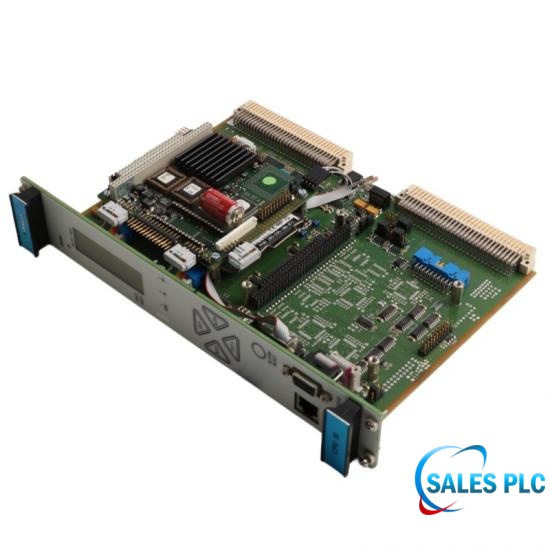

Vibro-Meter CPUM 200-595-046-114 is a modular CPUM card that functions as the rack controller and communications gateway for a VM600 machinery protection or condition monitoring rack. The complete PNR identifies both firmware 046 and the installed hardware arrangement.
The CPUM centralizes rack configuration, event logging, front-panel status display and communication with protection cards through the VME backplane. With its IOCN partner, Vibro-Meter CPUM 200-595-046-114 exposes serial and Ethernet interfaces for MPSx, Modbus and the functions supported by its firmware.
Vibro-Meter CPUM 200-595-046-114 uses standard cpum with one ethernet interface and one serial interface hardware. The CPU platform is documented with an AMD Geode LX800 processor at 500 MHz, 256 MB DRAM and a 5 VDC input below 1.8 A; communication capability still depends on firmware and jumper configuration.
Before replacing Vibro-Meter CPUM 200-595-046-114, export the rack configuration, record IP and fieldbus settings, confirm the IOCN version and check the complete hardware revision. Similar CPUM suffixes are not interchangeable solely because the front-panel appearance is the same.
| Manufacturer | Vibro-Meter |
|---|---|
| Complete model | CPUM 200-595-046-114 |
| Product type | VM600 Rack Controller and Communications Card |
| System family | Vibro-Meter VM600 Machinery Protection System |
| Firmware identifier | 046 |
| Hardware identifier | 114 |
| Hardware arrangement | Standard CPUM with one Ethernet interface and one serial interface |
| Product role | VM600 rack controller and communications gateway |
| Companion interface card | IOCN |
| CPU module | PFM-541I or equivalent |
| Processor | AMD Geode LX800, 500 MHz |
| CPU memory | 256 MB DRAM |
| CPU-module input | 5 VDC, <1.8 A |
| Primary serial interface | RS-232, up to 115.2 kBaud |
| Secondary serial interface | RS-232 or RS-485, up to 115.2 kBaud, 500 VDC isolation |
| Primary Ethernet | 10/100BASE-TX, up to 100 Mbps, up to 100 m |
| Secondary Ethernet | 10/100BASE-TX, up to 10 Mbps, up to 100 m |
| Internal rack interface | VME A24 / D16 master mode |
| Time synchronization | NTP server or battery-backed real-time clock |
| Rack supply | 5 VDC |
| CPUM power consumption | <10 W |
| CPUM / IOCN pair consumption | ≤12 W |
| Operating temperature | −20 to 65°C (−4 to 149°F) |
| Storage temperature | −25 to 80°C (−13 to 176°F) |
| Humidity | 0–90% RH, non-condensing |
| CPUM dimensions | 6U × 40 × 187 mm (262 × 40 × 187 mm) |
| Approximate CPUM weight | 0.40 kg (0.88 lb) |
| Firmware-era storage | 16 MB Disk On Chip |
| Firmware-era operating system | QNX 4.25 |
Use the installed-unit nameplate, current Vibro-Meter documentation and approved site records as final references.
Vibro-Meter CPUM 200-595-046-114 is a modular VM600 CPUM rack controller and communications gateway identified with firmware 046 and standard cpum with one ethernet interface and one serial interface hardware.
The documented CPUM platform for Vibro-Meter CPUM 200-595-046-114 uses an AMD Geode LX800 processor at 500 MHz with 256 MB DRAM.
Vibro-Meter CPUM 200-595-046-114 belongs to the CPUM/IOCN platform with RS-232 or RS-485 serial communication and 10/100BASE-TX Ethernet. Exact protocols depend on firmware, hardware and configuration.
The 046 portion of Vibro-Meter CPUM 200-595-046-114 identifies the CPUM firmware family. Preserve the installed CompactFlash and confirm the running version in the system version record.
The 114 hardware portion of Vibro-Meter CPUM 200-595-046-114 identifies standard cpum with one ethernet interface and one serial interface and its major/minor hardware revisions; major changes can affect interchangeability.
Vibro-Meter CPUM 200-595-046-114 can use the corresponding IOCN rear interface for secondary Ethernet and serial connectors. Verify the exact IOCN PNR, jumpers and rack wiring.
Restore only the approved CPUM and MPSx configuration for Vibro-Meter CPUM 200-595-046-114, then verify IP addressing, time synchronization, rack inventory, fieldbus communication and event logging.
Another CPUM suffix must not replace Vibro-Meter CPUM 200-595-046-114 until firmware, hardware arrangement, CompactFlash, IOCN compatibility, interfaces and rack configuration are confirmed.
Provide the complete Vibro-Meter CPUM 200-595-046-114 PNR, revision, serial number, IOCN PNR, rack model, firmware backup, interface requirements, quantity and destination.
Send the complete Vibro-Meter model, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
