Vibro-Meter IOC4T 200-560-000-018 IOC4T Input/Output Signal Interface Card
IOC4T 200-560-000-018
IOC4T Input/Output Signal Interface Card · VM600 Machinery Protection I/O Card for Vibro-Meter VM600 MPC4 / IOC4T System
Lifecycle note: Use the unit nameplate and current Vibro-Meter documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275IOC4T Input/Output Signal Interface Card · Vibro-Meter VM600 MPC4 / IOC4T System

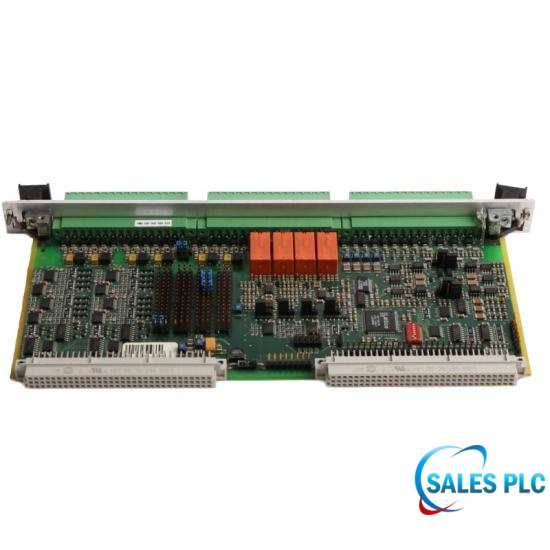

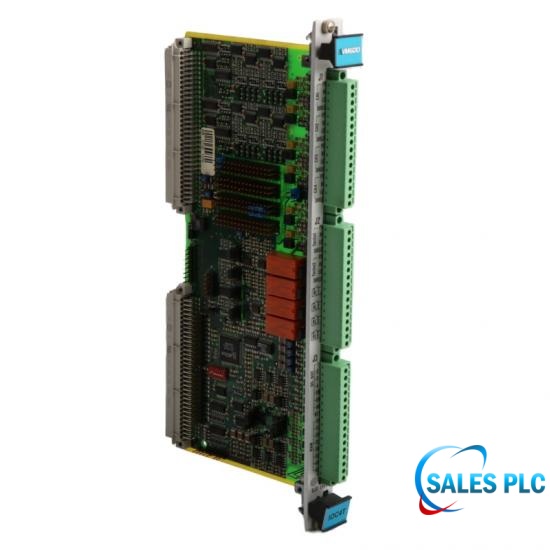

Vibro-Meter IOC4T 200-560-000-018 is an IOC4T input/output card installed at the rear of a VM600 rack and operated with a corresponding MPC4 machinery protection card. It connects field sensor signals, processed outputs, control inputs and alarm contacts to the protection processor.
Four dynamic channels and two speed or phase-reference channels pass through Vibro-Meter IOC4T 200-560-000-018 to the MPC4. The returned measurements are available as four calibrated 0–10 V or 4–20 mA outputs, while buffered raw dynamic signals support external analysis equipment.
Vibro-Meter IOC4T 200-560-000-018 provides Alarm Reset, Danger Bypass and Trip Multiply inputs, four local configurable relays, and as many as 32 rack-bus alarm signals for optional RLC16 or IRC4 relay hardware. The exact 200-560-000-018 suffix is not enumerated in the current public data sheet, so its buffered-output generation and interchangeability require nameplate verification.
The IOC4T electronics protect field interfaces against electromagnetic interference and surges. Before replacement, preserve the exact IOC4T 200-560-000-018 PNR, MPC4 partner, output-jumper selection, relay assignment, J1–J3 wiring, rack slot and approved MPSx database.
| Manufacturer | Vibro-Meter |
|---|---|
| Complete model | IOC4T 200-560-000-018 |
| Product type | VM600 Machinery Protection I/O Card |
| System family | Vibro-Meter VM600 MPC4 / IOC4T System |
| Companion processing card | MPC4 machinery protection card |
| Dynamic signal inputs | 4 |
| Speed / phase-reference inputs | 2 |
| Discrete control inputs | Alarm Reset (AR), Danger Bypass (DB) and Trip Multiply (TM) |
| Analog outputs | 4, one per dynamic measurement channel |
| Selectable output ranges | 0–10 V or 4–20 mA; current drive extends to 2–23 mA |
| Analog-output accuracy | ≤±1.5% |
| Analog-output linearity error | ≤±0.5% |
| Voltage-output load | >100 kΩ |
| Current-output load | <325 Ω |
| Local alarm relays | 4 (RL1–RL4) |
| Relay contacts | 1 NC or 1 NO per relay, user configurable |
| Relay rating | 250 VAC nominal; 5 A AC nominal; 1250 VA maximum breaking capacity |
| Relay operate / release / bounce | Typically 8 / 8 / 6 ms |
| Relay dielectric strength | 1000 VAC across open contacts; 4000 VAC contact-to-coil |
| Relay life | 15 million mechanical operations; >100,000 electrical operations |
| Rack-bus alarm outputs | Up to 32 via Raw bus or Open Collector bus |
| Supply voltages | +5 VDC and ±12 VDC from VM600 rack |
| Power consumption | 1.5 W from +5 V; 0.7 W from ±12 V plus 0.25 W per current output |
| Operating temperature | −25 to 65°C (−13 to 149°F) |
| Storage temperature | −40 to 85°C (−40 to 185°F) |
| Operating humidity | 0–90% RH, non-condensing |
| Storage humidity | 0–95% RH, non-condensing |

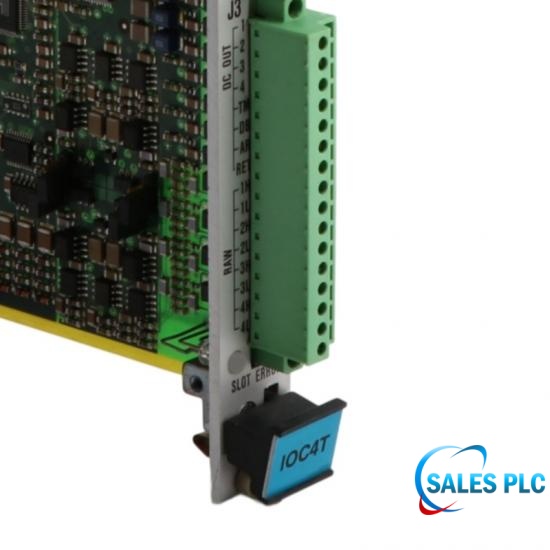

| Connectors | J1, J2 and J3; each 16-contact screw-terminal |
| Dimensions | 6U × 20 × 125 mm (262 × 20 × 125 mm) |
| Approximate weight | 0.25 kg (0.55 lb) |
| Exact suffix status | Verify 200-560-000-018 against installed hardware records |
Use the installed-unit nameplate, current Vibro-Meter documentation and approved site records as final references.
Vibro-Meter IOC4T 200-560-000-018 is a VM600 IOC4T rear-rack signal and relay interface card for an MPC4 machinery protection processor.
Vibro-Meter IOC4T 200-560-000-018 routes four dynamic inputs and two speed inputs to the paired MPC4, then provides processed analog outputs, relay contacts and buffered raw signals at the rear of the VM600 rack.
Vibro-Meter IOC4T 200-560-000-018 provides four jumper-selectable outputs. Each channel can supply 0–10 V or 4–20 mA, with the current circuit driven across an extended 2–23 mA range.
Vibro-Meter IOC4T 200-560-000-018 contains four configurable local relays and can route up to 32 alarm signals over the VM600 Raw bus or Open Collector bus to compatible relay cards.
The exact 200-560-000-018 suffix is not enumerated in the current public data sheet, so its buffered-output generation and interchangeability require nameplate verification.
Vibro-Meter IOC4T 200-560-000-018 accepts Alarm Reset, Danger Bypass and Trip Multiply discrete inputs. Trip Multiply scales alarm levels by the factor configured in MPSx.
Before installing Vibro-Meter IOC4T 200-560-000-018, verify the exact PNR, hardware generation, MPC4 pairing, rack slot, J1–J3 wiring, output jumpers, relay logic and saved MPSx configuration.
Another IOC4T suffix must not replace Vibro-Meter IOC4T 200-560-000-018 until buffered-output impedance, RoHS generation, coating, circuit separation, hardware interchangeability and MPC4 compatibility are confirmed.
Provide the complete Vibro-Meter IOC4T 200-560-000-018 nameplate, revision, serial number, paired MPC4 PNR, rack type, wiring requirements, quantity and destination.
Send the complete Vibro-Meter model, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
