200-IE8
S200 analog input unit · Model 200-IE8 · Identifier S200IE8 · 8 voltage or current inputs · 12-bit resolution
Lifecycle note: ABB states that S200 I/O is in the Active lifecycle phase and may be retained when migrating a Satt system to System 800xA. Confirm the installed terminal base, channel ranges, wiring and software configuration before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 180207767868-channel analog input unit · S200 I/O for Satt

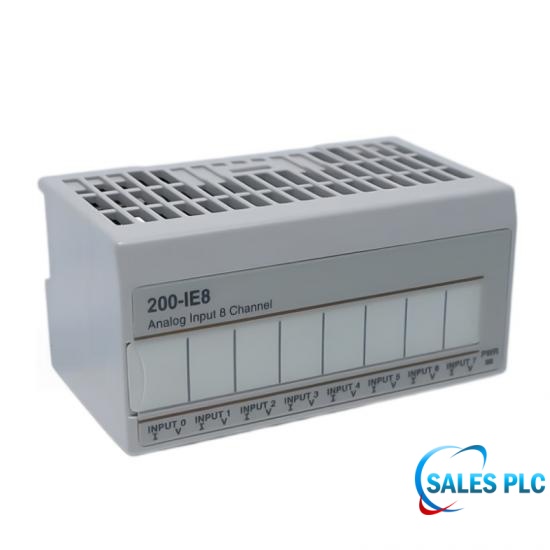

ABB 200-IE8 is an S200 I/O analog input unit for Satt control systems. The compact identifier supplied for this product is S200IE8.
ABB documents eight single-ended analog inputs with 12-bit resolution. Each channel can be configured for voltage ranges of 0–10 V DC or ±10 V DC, or current ranges of 0–20 mA or 4–20 mA.
The inputs are filtered and, as a group of eight, galvanically isolated from the serial bus by optocouplers. Process signals connect through screw terminals on the terminal base unit, and a green PWR indicator shows when 24 V DC power is on.
| Brand | ABB / Satt |
|---|---|
| Model | 200-IE8 |
| Submitted Identifier | S200IE8 |
| Product Family | S200 I/O |
| Product Type | Analog input unit |
| Number of Inputs | 8 |
| Input Configuration | Single ended |
| Voltage Input Ranges | 0–10 V DC and ±10 V DC |
| Current Input Ranges | 0–20 mA and 4–20 mA |
| Resolution | 12 bit |
| Signal Processing | Inputs filtered |
| Isolation | Group of eight galvanically isolated from the serial bus by optocouplers |
| Field Connection | Screw terminals on the terminal base unit |
| Power Indication | Green PWR LED lit when 24 V DC power is on |
| Lifecycle | Active according to ABB S200 I/O service information |
ABB states that S200 I/O is in the Active lifecycle phase and may be retained when migrating a Satt system to System 800xA. Confirm the installed terminal base, channel ranges, wiring and software configuration before replacement.
ABB 200-IE8 is an S200 I/O unit for eight analog input signals in Satt control systems.
S200IE8 is the submitted compact identifier for the ABB Satt 200-IE8 analog input unit.
The unit provides eight single-ended analog input channels.
ABB documents 0–10 V DC and ±10 V DC input ranges.
ABB documents 0–20 mA and 4–20 mA input ranges.
The input resolution is 12 bit.
Yes. ABB states that the group of eight inputs is galvanically isolated from the serial bus by optocouplers.
The green PWR LED is lit when 24 V DC power is on.
Verify 200-IE8 or S200IE8, the terminal base, voltage or current range assignments, field wiring, 24 V DC power and software configuration.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB S200 I/O for Satt. Final suitability must be verified against the exact installed unit and official documentation.
