200-TB2
S200 terminal base unit · Submitted aliases S200-TB2 and S200TB2 · Official type 200-TB2 · Three screw-terminal rows for two-wire devices
Lifecycle note: ABB identifies the official order code as 200-TB2. Confirm the inserted I/O unit, mechanical code key, two-wire device arrangement, signal terminals and power distribution before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Terminal base unit for two-wire devices · S200 I/O System Accessories

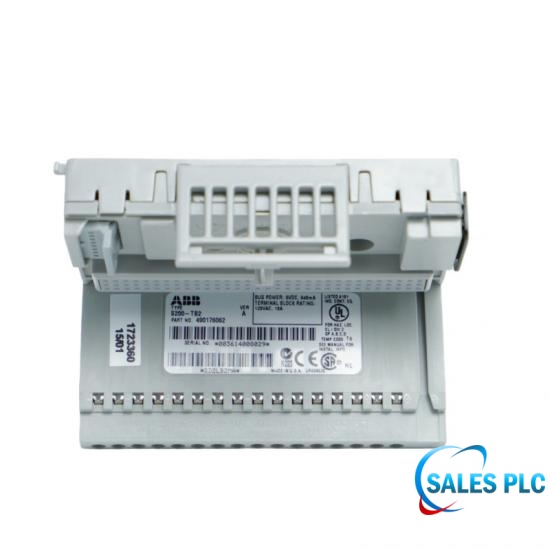

ABB 200-TB2 is an S200 I/O terminal base unit designed to connect one I/O unit and a number of two-wire devices. The submitted identifiers are S200-TB2 and S200TB2.
The unit has three screw-terminal rows. The upper row provides sixteen input/output signal terminals, the middle row provides eighteen internally connected 0 V DC terminals, and the lower row provides two internally connected +24 V DC supply terminals.
ABB documents a maximum current capacity of 10 A and a maximum voltage rating of 132 V AC rms. The supported solid or stranded copper wire size is 0.5–2.5 mm², equivalent to AWG 20–12.
| Brand | ABB / Satt |
|---|---|
| Official Type Designation | 200-TB2 |
| Submitted Identifiers | S200-TB2 / S200TB2 |
| Product Family | S200 I/O System Accessories |
| Product Type | Terminal base unit |
| Application | Connection of an I/O unit and two-wire devices |
| Terminal Arrangement | One row of 16, one row of 18 and one row of 2 screw terminals |
| Signal Terminals | 16 terminals on upper row |
| 0 V DC Terminals | 18 internally connected terminals on middle row |
| +24 V DC Terminals | 2 internally connected terminals on lower row |
| Current Capacity | 10 A maximum |
| Voltage Rating | 132 V AC rms maximum |
| Isolation | Channel-to-channel isolation determined by inserted unit |
| Backplane Key Code | Determined by inserted unit |
| Wire Size | 0.5–2.5 mm² solid or stranded copper; AWG 20–12 |
| Dimensions | 94 × 94 × 58 mm; depth 72 mm with inserted I/O unit |
| Net Weight | 0.225 kg excluding package |
| Official Order Code | 200-TB2 |
ABB identifies the official order code as 200-TB2. Confirm the inserted I/O unit, mechanical code key, two-wire device arrangement, signal terminals and power distribution before replacement.

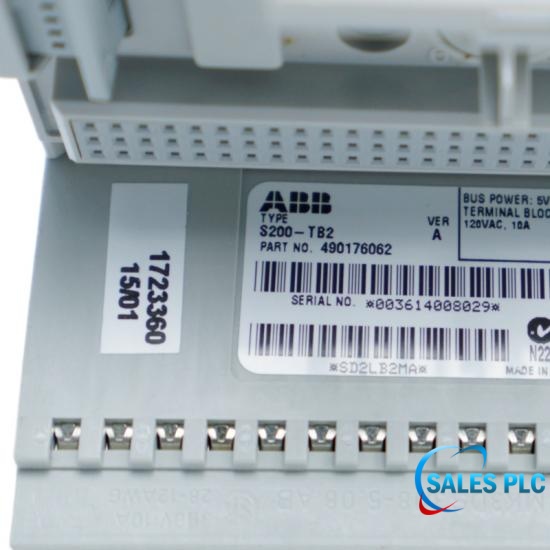

S200-TB2 and S200TB2 are submitted identifiers for the ABB Satt terminal base officially designated 200-TB2.
The official type designation and order code is 200-TB2.
ABB designs 200-TB2 for connecting an I/O unit and a number of two-wire devices.
The unit has three screw-terminal rows containing 16, 18 and 2 terminals.
The middle row contains eighteen internally connected 0 V DC screw terminals.
The lower row contains two internally connected +24 V DC screw terminals.
ABB specifies a maximum current capacity of 10 A.
Solid or stranded copper wire from 0.5 to 2.5 mm², or AWG 20 to AWG 12, is supported.
Verify S200-TB2 or S200TB2 against official type 200-TB2, the inserted I/O unit, code key, terminal allocation, wire size, voltage and current requirements.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB S200 I/O System Accessories Data Sheet. Final suitability must be verified against the exact installed unit and official documentation.
