S200-TB3 / S200TB3 / 200-TB3
Three-row terminal base for connecting an S200 I/O unit and two- or three-wire devices, with internally connected 0 V DC and +24 V DC sensor-supply rows · Order code 200-TB3
Lifecycle note: Confirm the exact 200-TB3 order code, the inserted I/O unit, terminal-base coding, signal wiring and sensor-supply arrangement before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Three-wire terminal base unit · S200 I/O System

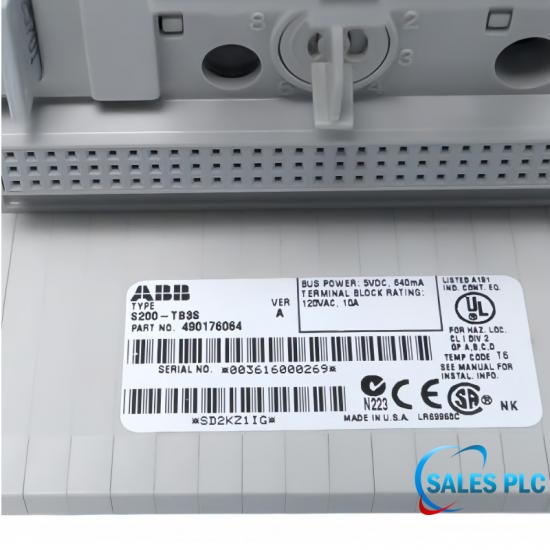

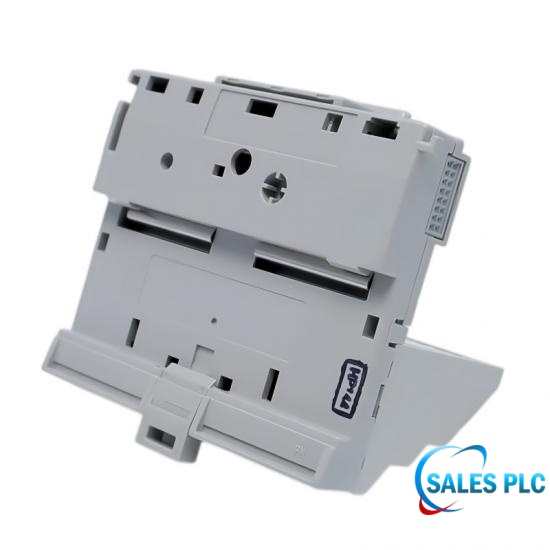

ABB Satt 200-TB3 is a terminal base designed to connect one S200 I/O unit and a number of two- or three-wire devices to the I/O system.

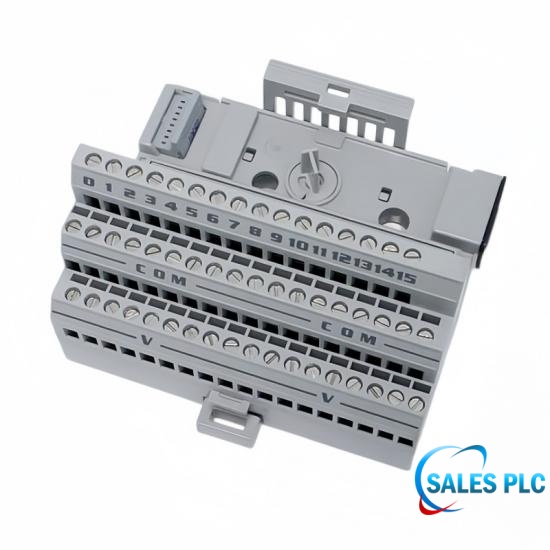

It has three screw-terminal rows. The upper row provides 16 input/output signal terminals. The middle row contains 18 internally connected 0 V DC terminals, while the lower row contains 18 internally connected +24 V DC terminals intended to supply field sensors.
The leftmost and rightmost terminals of the middle and lower rows are used for the power-supply connection. Channel isolation and the backplane key code are determined by the inserted I/O unit, so the complete assembly and wiring must be verified before replacement.
| Manufacturer | ABB |
|---|---|
| Product family | Satt S200 I/O System |
| Submitted model aliases | S200-TB3; S200TB3 |
| Official order code | 200-TB3 |
| Product type | Terminal base unit for two- or three-wire devices |
| Terminal arrangement | One row of 16 terminals and two rows of 18 terminals |
| Upper row | 16 input/output signal terminals |
| Middle row | 18 internally connected 0 V DC terminals |
| Lower row | 18 internally connected +24 V DC terminals for sensor power |
| Power-supply connections | Leftmost and rightmost terminals of the middle and lower rows |
| Maximum current capacity | 10 A |
| Maximum voltage rating | 132 V AC rms |
| Conductor size | 0.5–2.5 mm² (AWG 20–12), solid or stranded copper |
| Dimensions (H × W × D) | 94 × 94 × 58 mm; 72 mm deep with I/O unit fitted |
| Net weight | 0.225 kg, excluding package |
| Isolation voltage | Channel-to-channel isolation determined by the inserted I/O unit |
| Backplane key code | Determined by the inserted I/O unit |
Confirm the exact 200-TB3 order code, the inserted I/O unit, terminal-base coding, signal wiring and sensor-supply arrangement before replacement.
It is a three-row terminal base for connecting one S200 I/O unit and two- or three-wire field devices.
They are submitted search aliases for this listing; ABB’s official accessory data sheet uses the order code 200-TB3. Verify the installed marking before ordering.
It has one row of 16 terminals and two rows of 18 terminals, for a total of 52 screw terminals.
The upper row provides sixteen terminals for input/output signals.
The middle row contains eighteen internally connected 0 V DC terminals.
The lower row contains eighteen internally connected +24 V DC terminals intended to supply sensors.
ABB lists a maximum current capacity of 10 A and a maximum voltage rating of 132 V AC rms.
The official range is 0.5–2.5 mm² solid or stranded copper wire, equivalent to AWG 20–12.
Confirm the exact order code, inserted I/O unit, channel isolation, backplane key code, signal wiring and 0 V DC/+24 V DC sensor-supply connections.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB S200 I/O System Accessories Data Sheet. Final suitability must be verified against the exact installed unit and official documentation.
