ABB Satt S200-TB3S S200TB3S 200-TB3S Cage-Clamp Terminal Base Unit
S200-TB3S / S200TB3S / 200-TB3S
Three-row cage-clamp terminal base for connecting an S200 I/O unit and two- or three-wire devices, with internally connected 0 V DC and +24 V DC sensor-supply rows · Order code 200-TB3S
Lifecycle note: Confirm the exact 200-TB3S order code, terminal style, inserted I/O unit, coding, signal wiring and sensor-supply arrangement before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Cage-clamp terminal base unit · S200 I/O System

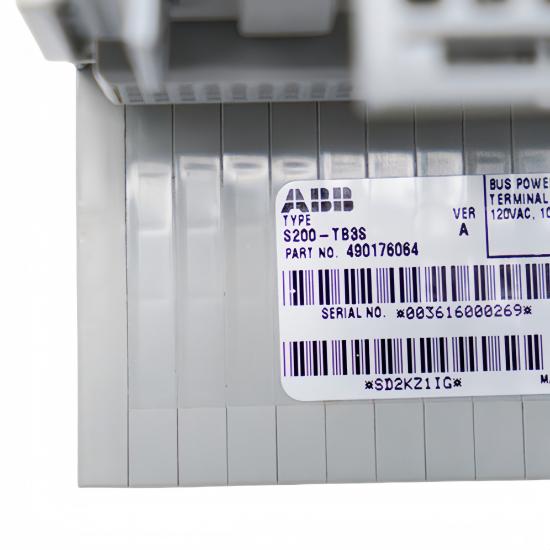

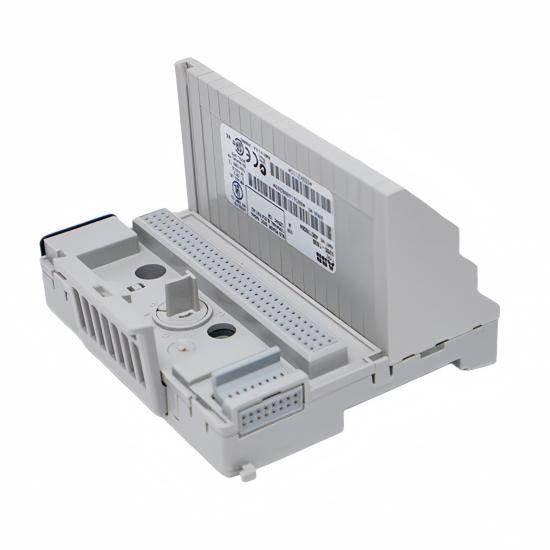

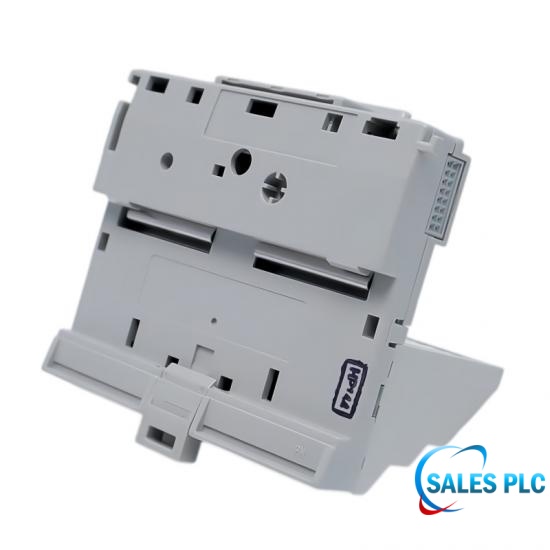

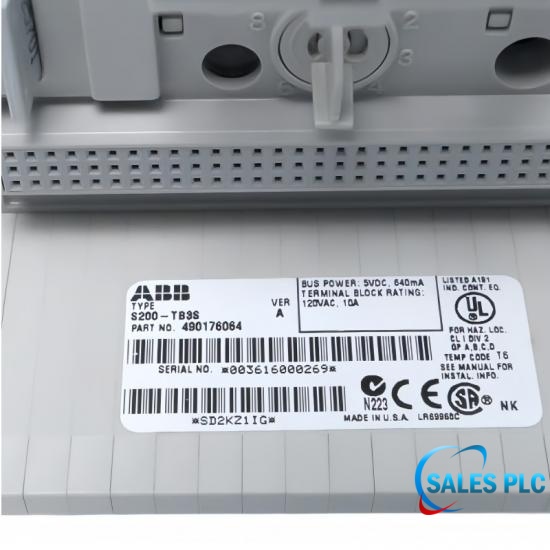

ABB Satt 200-TB3S is a terminal base designed to connect one S200 I/O unit and two- or three-wire field devices. ABB specifies three rows of cage-clamp wire terminals.

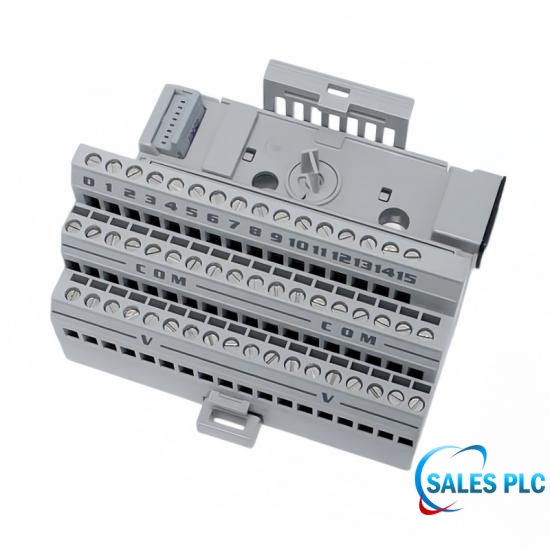

The upper row provides 16 input/output signal terminals. The middle row contains 18 internally connected 0 V DC terminals, while the lower row contains 18 internally connected +24 V DC terminals intended to supply sensors.
The outer terminals of the middle and lower rows are used for the power-supply connection. Channel-to-channel isolation and the backplane key code depend on the inserted I/O unit and must be checked before replacement.
| Manufacturer | ABB |
|---|---|
| Product family | Satt S200 I/O System |
| Submitted model aliases | S200-TB3S; S200TB3S |
| Official order code | 200-TB3S |
| Product type | Cage-clamp terminal base unit |
| Application | Connection of one S200 I/O unit and two- or three-wire field devices |
| Terminal arrangement | One row of 16 terminals and two rows of 18 terminals |
| Upper row | 16 input/output signal terminals |
| Middle row | 18 internally connected 0 V DC terminals |
| Lower row | 18 internally connected +24 V DC terminals for sensor power |
| Power-supply connections | Outermost terminals of the middle and lower rows |
| Maximum current capacity | 10 A |
| Maximum voltage rating | 132 V AC rms |
| Conductor size | 0.5–2.5 mm² (AWG 20–12), solid or stranded copper |
| Dimensions (H × W × D) | 94 × 94 × 58 mm; 72 mm deep with I/O unit fitted |
| Net weight | 0.225 kg, excluding package |
| Isolation voltage | Channel-to-channel isolation determined by the inserted I/O unit |
| Backplane key code | Determined by the inserted I/O unit |
Confirm the exact 200-TB3S order code, terminal style, inserted I/O unit, coding, signal wiring and sensor-supply arrangement before replacement.
It is a three-row cage-clamp terminal base for connecting one S200 I/O unit and two- or three-wire field devices.
They are submitted search aliases for this listing; ABB’s official accessory data sheet uses the order code 200-TB3S. Verify the installed marking before ordering.
ABB describes 200-TB3S with cage-clamp wire terminals, while 200-TB3 is described with screw terminals. Electrical suitability must still be checked against the inserted I/O unit.
It has one row of sixteen terminals and two rows of eighteen terminals, for a total of fifty-two terminals.
The upper row provides sixteen terminals for input/output signals.
The middle row provides internally connected 0 V DC terminals; the lower row provides internally connected +24 V DC terminals for sensor power.
ABB lists 10 A maximum current capacity and 132 V AC rms maximum voltage for 200-TB3S.
The official range is 0.5–2.5 mm² solid or stranded copper wire, equivalent to AWG 20–12.
Confirm the order code, cage-clamp terminal style, inserted I/O unit, isolation requirement, backplane key code and all signal and supply connections.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB S200 I/O System Accessories Data Sheet. Final suitability must be verified against the exact installed unit and official documentation.
