S200-TB3T / S200TB3T / 200-TB3T
Terminal base for an S200 I/O unit and two- or three-wire devices, mainly intended for the 200-IT8 temperature input unit · Order code 200-TB3T
Lifecycle note: S200 terminal bases are configuration-dependent accessories. Verify the exact 200-TB3T order code, the inserted I/O unit, terminal coding, cold-junction arrangement and field wiring before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Terminal base unit · S200 I/O System

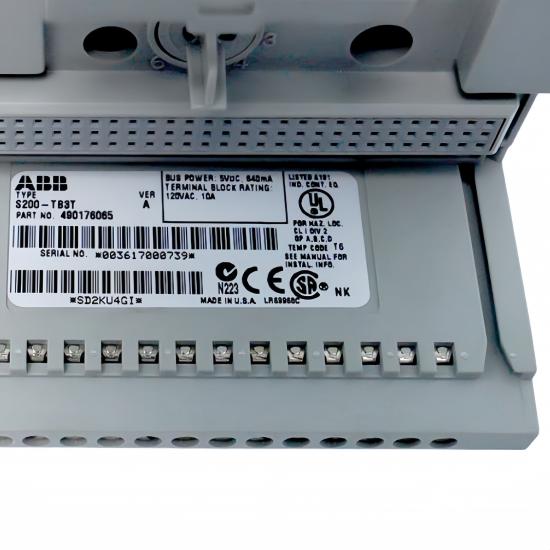

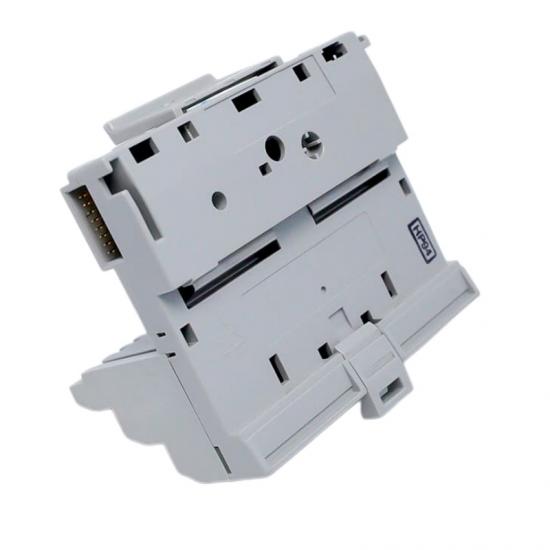

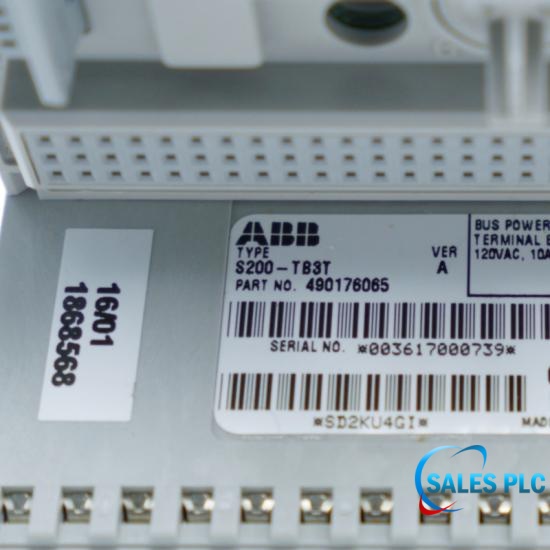

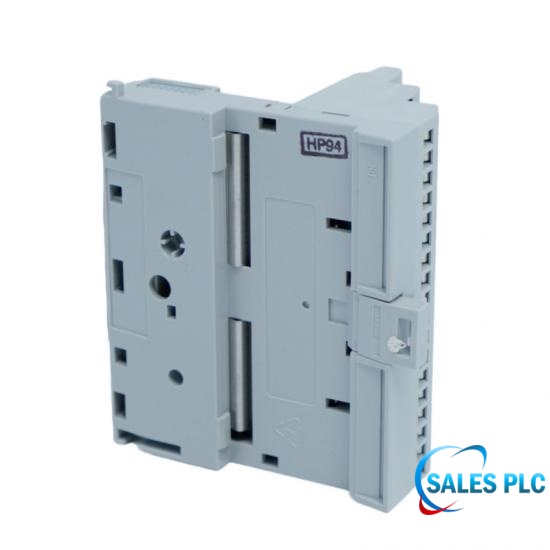

ABB Satt 200-TB3T is a terminal base for connecting one S200 I/O unit and two- or three-wire field devices. ABB identifies this variant as mainly intended for use with the 200-IT8 temperature input unit.

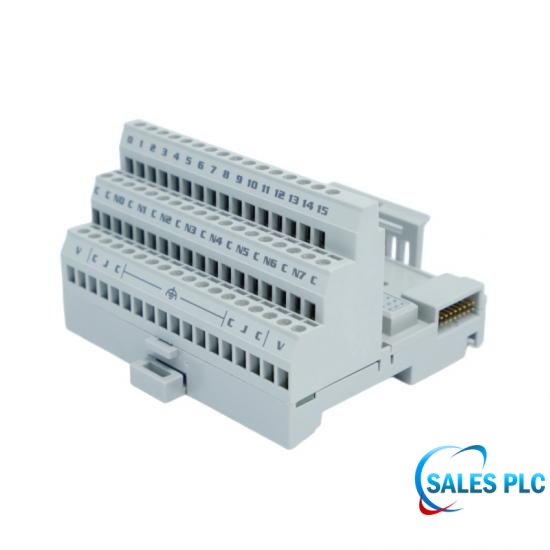

The upper row provides 16 I/O-signal terminals. The middle row contains 18 terminals, including internally connected 0 V DC points and outer power-supply terminals. The lower row adds six cold-junction inputs for an external thermistor, eight chassis-ground connection points and outer power-supply terminals.
Because the isolation and backplane key code are determined by the inserted I/O unit, the complete module, base, wiring and application must be checked before replacement.
| Manufacturer | ABB |
|---|---|
| Product family | Satt S200 I/O System |
| Submitted model aliases | S200-TB3T; S200TB3T |
| Official order code | 200-TB3T |
| Product type | Terminal base unit |
| Recommended application | Mainly intended for the 200-IT8 temperature input unit |
| Terminal arrangement | Three screw-terminal rows: one row of 16 terminals and two rows of 18 terminals |
| Upper row | 16 I/O-signal terminals |
| Middle row | 18 terminals; internally connected 0 V DC points plus outer power-supply terminals |
| Lower row | Six cold-junction inputs, eight chassis-ground points and outer power-supply terminals |
| Cold-junction compensation | External thermistor connection; required with 200-IT8 according to the ABB accessory data sheet |
| Maximum continuous current | 10 A |
| Maximum voltage | 132 V AC rms |
| Conductor size | 0.5–2.5 mm² (AWG 20–12) |
| Dimensions (H × W × D) | 94 × 94 × 58 mm; 72 mm deep with I/O unit fitted |
| Net weight | 0.225 kg, excluding package |
| Isolation / backplane key | Determined by the inserted I/O unit |
S200 terminal bases are configuration-dependent accessories. Verify the exact 200-TB3T order code, the inserted I/O unit, terminal coding, cold-junction arrangement and field wiring before replacement.
It is a terminal base for one S200 I/O unit and two- or three-wire devices, mainly intended for the 200-IT8 temperature input unit.
They are submitted search aliases for this listing; ABB’s accessory data sheet uses the official order code 200-TB3T. Confirm the nameplate and documentation before ordering.
It has three screw-terminal rows: an upper row of 16 terminals and middle and lower rows of 18 terminals each.
They connect an external thermistor for cold-junction compensation. ABB states that this connection is required when the base is used with 200-IT8.
Yes. The lower row includes eight chassis-ground connection points that can be used, for example, with wire shields.
ABB lists 10 A maximum continuous current and 132 V AC rms maximum voltage for the 200-TB3/TB3S/TB3T terminal-base group.
The official accessory data sheet specifies conductors from 0.5 to 2.5 mm², corresponding to AWG 20 to 12.
No. ABB states that isolation and the backplane key code are determined by the inserted I/O unit.
Verify the official order code, inserted I/O unit, terminal coding, supply, field wiring, shield connections and external thermistor arrangement.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB S200 I/O System Accessories Data Sheet. Final suitability must be verified against the exact installed unit and official documentation.
